complexType RecurrentTime

diagram
namespace	http://www.ite.org/tmdd
children	recurrent-period timeline-schedule-times
used by	elements  EventPeriod/recurrent-times/recurrent-time EventTimes/recurrent-times/recurrent-time
annotation	documentation <objectClass>Event</objectClass> <definition/>
source	<xs:complexType name="RecurrentTime">   <xs:annotation>     <xs:documentation>       <objectClass>Event</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="recurrent-period" type="EventPeriod"/>     <xs:element name="timeline-schedule-times" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="64">           <xs:element name="timeline-schedule-time" type="Event-timeline-schedule-times"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

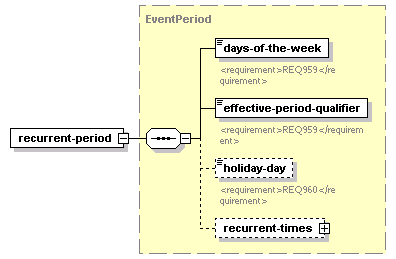

element RecurrentTime/recurrent-period

diagram
type	EventPeriod
properties	isRef  0 content  complex
children	days-of-the-week effective-period-qualifier holiday-day recurrent-times
source	<xs:element name="recurrent-period" type="EventPeriod"/>

element RecurrentTime/timeline-schedule-times

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timeline-schedule-time
source	<xs:element name="timeline-schedule-times" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="64">       <xs:element name="timeline-schedule-time" type="Event-timeline-schedule-times"/>     </xs:sequence>   </xs:complexType> </xs:element>

element RecurrentTime/timeline-schedule-times/timeline-schedule-time

diagram
type	Event-timeline-schedule-times
properties	isRef  0 content  simple
facets	length  6
source	<xs:element name="timeline-schedule-time" type="Event-timeline-schedule-times"/>
