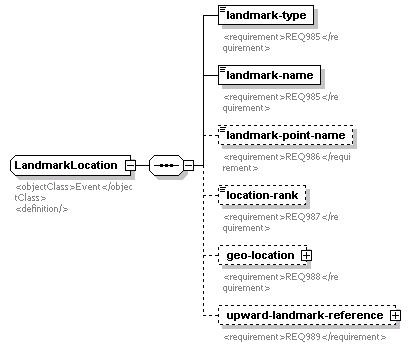

complexType LandmarkLocation
diagram
namespace http://www.ite.org/tmdd
children landmark-type landmark-name landmark-point-name location-rank geo-location upward-landmark-reference
used by
elements AlternateRouteDetail/destination EventLocation/landmark RelatedLocation/landmark PointOnLink/landmark-location LandmarkLocation/upward-landmark-reference
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="LandmarkLocation">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="landmark-type" type="Event-location-landmark-type">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ985</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="landmark-name" type="Event-landmark-name">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ985</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="landmark-point-name" type="Event-landmark-point-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ986</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="location-rank" type="Event-location-rank" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ987</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="geo-location" type="lrms:GeoLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ988</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="upward-landmark-reference" type="LandmarkLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ989</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element LandmarkLocation/landmark-type
diagram
type Event-location-landmark-type
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ985</requirement>
source <xs:element name="landmark-type" type="Event-location-landmark-type">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ985</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LandmarkLocation/landmark-name
diagram
type Event-landmark-name
properties
isRef 0
content simple
facets
minLength 1
maxLength 256
annotation
documentation
<requirement>REQ985</requirement>
source <xs:element name="landmark-name" type="Event-landmark-name">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ985</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LandmarkLocation/landmark-point-name
diagram
type Event-landmark-point-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 256
annotation
documentation
<requirement>REQ986</requirement>
source <xs:element name="landmark-point-name" type="Event-landmark-point-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ986</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LandmarkLocation/location-rank
diagram
type Event-location-rank
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 10
annotation
documentation
<requirement>REQ987</requirement>
source <xs:element name="location-rank" type="Event-location-rank" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ987</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

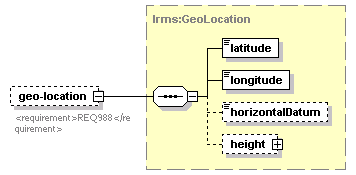

element LandmarkLocation/geo-location
diagram
type lrms:GeoLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children latitude longitude horizontalDatum height
annotation
documentation
<requirement>REQ988</requirement>
source <xs:element name="geo-location" type="lrms:GeoLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ988</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

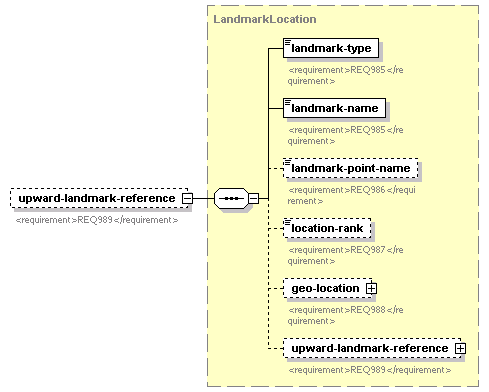

element LandmarkLocation/upward-landmark-reference
diagram
type LandmarkLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children landmark-type landmark-name landmark-point-name location-rank geo-location upward-landmark-reference
annotation
documentation
<requirement>REQ989</requirement>
source <xs:element name="upward-landmark-reference" type="LandmarkLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ989</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
