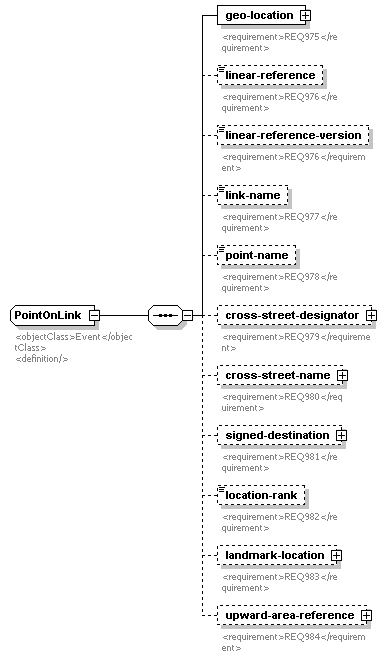

complexType PointOnLink
diagram
namespace http://www.ite.org/tmdd
children geo-location linear-reference linear-reference-version link-name point-name cross-street-designator cross-street-name signed-destination location-rank landmark-location upward-area-reference
used by
elements LinkLocation/primary-location LinkLocation/secondary-location
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="PointOnLink">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="geo-location" type="lrms:GeoLocation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ975</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ976</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ976</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-name" type="Event-location-roadway-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ977</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="point-name" type="Event-point-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ978</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cross-street-designator" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ979</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="8">
          <xs:element name="cross-street-designator-item" type="Roadway-network-identifier"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="cross-street-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ980</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="8">
          <xs:element name="cross-street-name-item" type="Roadway-network-name"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="signed-destination" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ981</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="8">
          <xs:element name="signed-destination-item" type="Event-signed-destination"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="location-rank" type="Event-location-rank" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ982</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="landmark-location" type="LandmarkLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ983</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="upward-area-reference" type="AreaLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ984</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

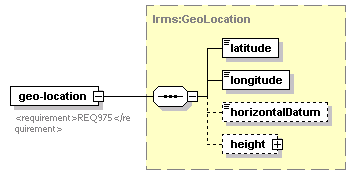

element PointOnLink/geo-location
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
annotation
documentation
<requirement>REQ975</requirement>
source <xs:element name="geo-location" type="lrms:GeoLocation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ975</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element PointOnLink/linear-reference
diagram
type Link-location-linear-reference
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 0
maxInclusive 2000000
annotation
documentation
<requirement>REQ976</requirement>
source <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ976</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element PointOnLink/linear-reference-version
diagram
type Link-location-linear-reference-version
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ976</requirement>
source <xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ976</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element PointOnLink/link-name
diagram
type Event-location-roadway-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 256
annotation
documentation
<requirement>REQ977</requirement>
source <xs:element name="link-name" type="Event-location-roadway-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ977</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element PointOnLink/point-name
diagram
type Event-point-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 256
annotation
documentation
<requirement>REQ978</requirement>
source <xs:element name="point-name" type="Event-point-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ978</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element PointOnLink/cross-street-designator
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children cross-street-designator-item
annotation
documentation
<requirement>REQ979</requirement>
source <xs:element name="cross-street-designator" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ979</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="8">
      <xs:element name="cross-street-designator-item" type="Roadway-network-identifier"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PointOnLink/cross-street-designator/cross-street-designator-item
diagram
type Roadway-network-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
source <xs:element name="cross-street-designator-item" type="Roadway-network-identifier"/>

element PointOnLink/cross-street-name
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children cross-street-name-item
annotation
documentation
<requirement>REQ980</requirement>
source <xs:element name="cross-street-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ980</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="8">
      <xs:element name="cross-street-name-item" type="Roadway-network-name"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PointOnLink/cross-street-name/cross-street-name-item
diagram
type Roadway-network-name
properties
isRef 0
content simple
facets
minLength 1
maxLength 128
source <xs:element name="cross-street-name-item" type="Roadway-network-name"/>

element PointOnLink/signed-destination
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children signed-destination-item
annotation
documentation
<requirement>REQ981</requirement>
source <xs:element name="signed-destination" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ981</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="8">
      <xs:element name="signed-destination-item" type="Event-signed-destination"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PointOnLink/signed-destination/signed-destination-item
diagram
type Event-signed-destination
properties
isRef 0
content simple
facets
minLength 1
maxLength 256
source <xs:element name="signed-destination-item" type="Event-signed-destination"/>

element PointOnLink/location-rank
diagram
type Event-location-rank
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 10
annotation
documentation
<requirement>REQ982</requirement>
source <xs:element name="location-rank" type="Event-location-rank" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ982</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

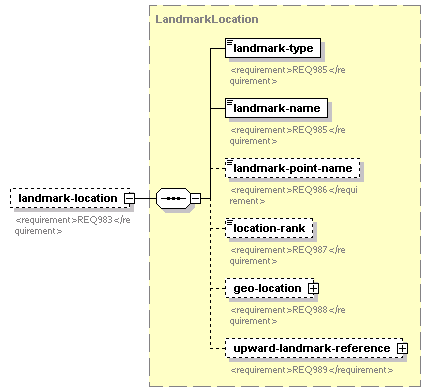

element PointOnLink/landmark-location
diagram
type LandmarkLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children landmark-type landmark-name landmark-point-name location-rank geo-location upward-landmark-reference
annotation
documentation
<requirement>REQ983</requirement>
source <xs:element name="landmark-location" type="LandmarkLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ983</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

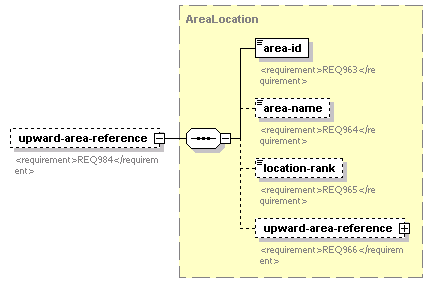

element PointOnLink/upward-area-reference
diagram
type AreaLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children area-id area-name location-rank upward-area-reference
annotation
documentation
<requirement>REQ984</requirement>
source <xs:element name="upward-area-reference" type="AreaLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ984</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
