complexType LinkLocation
diagram
namespace http://www.ite.org/tmdd
children link-ownership link-designator link-id link-name primary-location secondary-location link-direction link-alignment linear-reference linear-reference-version alternate-designation
used by
elements LinkLocation/alternate-designation AlternateRouteDetail/location-on-alternate-route/location-on-alternate-route-item EventLocation/location-on-link
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="LinkLocation">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="link-ownership" type="Link-ownership">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ967</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-designator" type="Link-route-designator" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ968</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-id" type="Roadway-network-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ969</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-name" type="Roadway-network-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ970</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="primary-location" type="PointOnLink">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ967</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="secondary-location" type="PointOnLink" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ972</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-direction" type="Link-direction">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ967</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-alignment" type="Link-alignment" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ971</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ973</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ973</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="alternate-designation" type="LinkLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ974</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element LinkLocation/link-ownership
diagram
type Link-ownership
properties
isRef 0
content simple
facets
minLength 1
maxLength 256
annotation
documentation
<requirement>REQ967</requirement>
source <xs:element name="link-ownership" type="Link-ownership">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ967</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LinkLocation/link-designator
diagram
type Link-route-designator
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 64
annotation
documentation
<requirement>REQ968</requirement>
source <xs:element name="link-designator" type="Link-route-designator" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ968</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LinkLocation/link-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ969</requirement>
source <xs:element name="link-id" type="Roadway-network-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ969</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LinkLocation/link-name
diagram
type Roadway-network-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ970</requirement>
source <xs:element name="link-name" type="Roadway-network-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ970</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

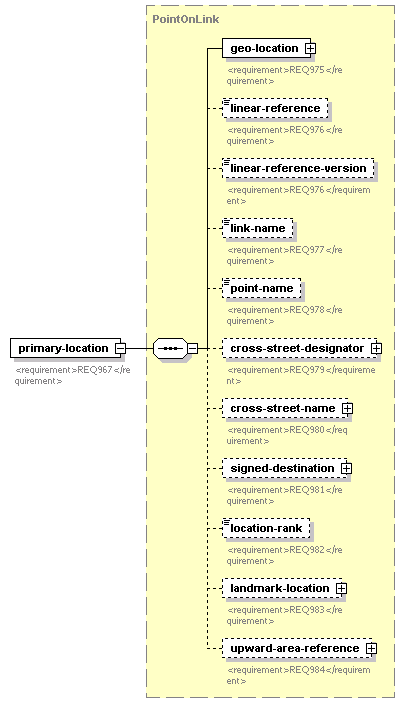

element LinkLocation/primary-location
diagram
type PointOnLink
properties
isRef 0
content complex
children geo-location linear-reference linear-reference-version link-name point-name cross-street-designator cross-street-name signed-destination location-rank landmark-location upward-area-reference
annotation
documentation
<requirement>REQ967</requirement>
source <xs:element name="primary-location" type="PointOnLink">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ967</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LinkLocation/secondary-location
diagram
type PointOnLink
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children geo-location linear-reference linear-reference-version link-name point-name cross-street-designator cross-street-name signed-destination location-rank landmark-location upward-area-reference
annotation
documentation
<requirement>REQ972</requirement>
source <xs:element name="secondary-location" type="PointOnLink" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ972</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LinkLocation/link-direction
diagram
type Link-direction
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ967</requirement>
source <xs:element name="link-direction" type="Link-direction">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ967</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LinkLocation/link-alignment
diagram
type Link-alignment
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ971</requirement>
source <xs:element name="link-alignment" type="Link-alignment" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ971</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LinkLocation/linear-reference
diagram
type Link-location-linear-reference
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 0
maxInclusive 2000000
annotation
documentation
<requirement>REQ973</requirement>
source <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ973</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LinkLocation/linear-reference-version
diagram
type Link-location-linear-reference-version
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ973</requirement>
source <xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ973</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

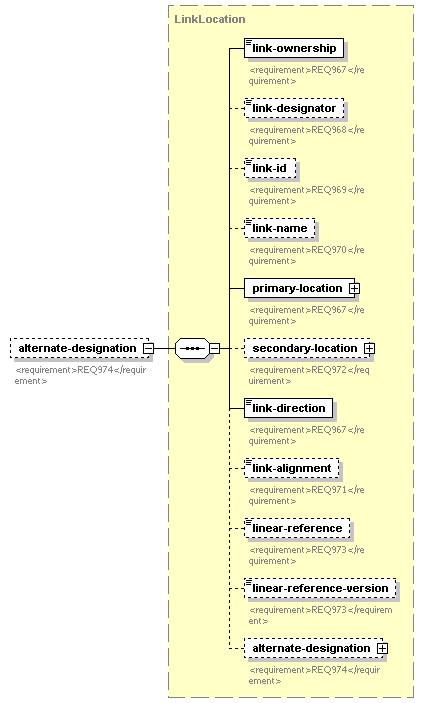

element LinkLocation/alternate-designation
diagram
type LinkLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children link-ownership link-designator link-id link-name primary-location secondary-location link-direction link-alignment linear-reference linear-reference-version alternate-designation
annotation
documentation
<requirement>REQ974</requirement>
source <xs:element name="alternate-designation" type="LinkLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ974</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
