complexType LinkStatus
diagram
namespace http://www.ite.org/tmdd
children organization-id network-id link-status-list operator-id
used by
element linkStatus
annotation
documentation
<objectClass>Link</objectClass>
<definition/>
source <xs:complexType name="LinkStatus">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Link</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-id" type="OrganizationInformation"/>
    <xs:element name="network-id" type="Roadway-network-identifier"/>
    <xs:element name="link-status-list">
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="link-status" type="LinkStatusList"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="operator-id" type="Organization-resource-identifier"/>
  </xs:sequence>
</xs:complexType>

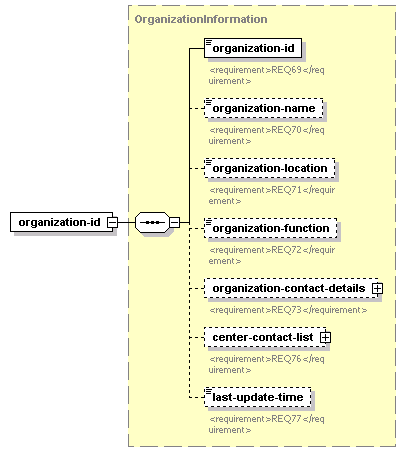

element LinkStatus/organization-id
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
source <xs:element name="organization-id" type="OrganizationInformation"/>

element LinkStatus/network-id
diagram
type Roadway-network-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
source <xs:element name="network-id" type="Roadway-network-identifier"/>

element LinkStatus/link-status-list
diagram
properties
isRef 0
content complex
children link-status
source <xs:element name="link-status-list">
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="link-status" type="LinkStatusList"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

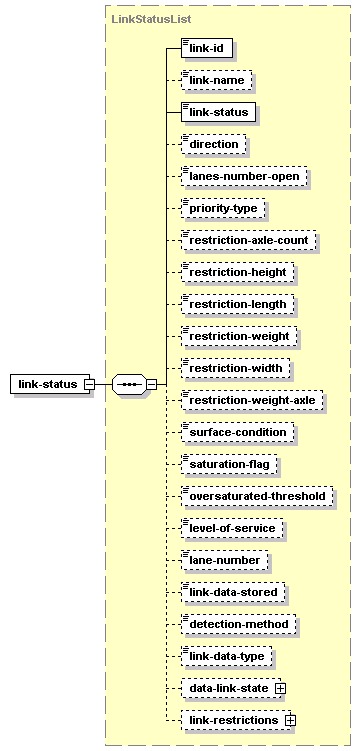

element LinkStatus/link-status-list/link-status
diagram
type LinkStatusList
properties
isRef 0
content complex
children link-id link-name link-status direction lanes-number-open priority-type restriction-axle-count restriction-height restriction-length restriction-weight restriction-width restriction-weight-axle surface-condition saturation-flag oversaturated-threshold level-of-service lane-number link-data-stored detection-method link-data-type data-link-state link-restrictions
source <xs:element name="link-status" type="LinkStatusList"/>

element LinkStatus/operator-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
source <xs:element name="operator-id" type="Organization-resource-identifier"/>
