complexType LinkStatusList

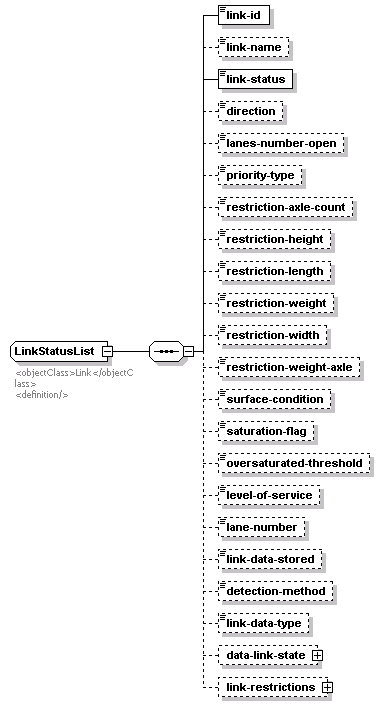

diagram
namespace http://www.ite.org/tmdd
children link-id link-name link-status direction lanes-number-open priority-type restriction-axle-count restriction-height restriction-length restriction-weight restriction-width restriction-weight-axle surface-condition saturation-flag oversaturated-threshold level-of-service lane-number link-data-stored detection-method link-data-type data-link-state link-restrictions
used by
element LinkStatus/link-status-list/link-status
annotation
documentation
<objectClass>Link</objectClass>
<definition/>
source <xs:complexType name="LinkStatusList">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Link</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="link-id" type="Roadway-network-identifier"/>
    <xs:element name="link-name" type="Roadway-network-name" minOccurs="0"/>
    <xs:element name="link-status" type="Link-status"/>
    <xs:element name="direction" type="Link-direction" minOccurs="0"/>
    <xs:element name="lanes-number-open" type="Link-lane-count" minOccurs="0"/>
    <xs:element name="priority-type" type="Link-priority-type" minOccurs="0"/>
    <xs:element name="restriction-axle-count" type="Link-restriction-axle-count" minOccurs="0"/>
    <xs:element name="restriction-height" type="Link-restriction-height" minOccurs="0"/>
    <xs:element name="restriction-length" type="Link-restriction-length" minOccurs="0"/>
    <xs:element name="restriction-weight" type="Link-restriction-weight-vehicle" minOccurs="0"/>
    <xs:element name="restriction-width" type="Link-restriction-width" minOccurs="0"/>
    <xs:element name="restriction-weight-axle" type="Link-restriction-weight-axle" minOccurs="0"/>
    <xs:element name="surface-condition" type="Link-surface-condition" minOccurs="0"/>
    <xs:element name="saturation-flag" type="Link-oversaturated-flag" minOccurs="0"/>
    <xs:element name="oversaturated-threshold" type="Link-oversaturated-threshold" minOccurs="0"/>
    <xs:element name="level-of-service" type="Link-level-of-service" minOccurs="0"/>
    <!-- Used from Events -->
    <xs:element name="lane-number" type="Detector-lane-number" minOccurs="0"/>
    <xs:element name="link-data-stored" type="Link-data-stored" minOccurs="0"/>
    <xs:element name="detection-method" type="Event-detection-method" minOccurs="0"/>
    <xs:element name="link-data-type" type="Link-data-type" minOccurs="0"/>
    <xs:element name="data-link-state" type="DataLinkState" minOccurs="0"/>
    <xs:element name="link-restrictions" type="DataLinkRestrictions" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element LinkStatusList/link-id
diagram
type Roadway-network-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
source <xs:element name="link-id" type="Roadway-network-identifier"/>

element LinkStatusList/link-name
diagram
type Roadway-network-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
source <xs:element name="link-name" type="Roadway-network-name" minOccurs="0"/>

element LinkStatusList/link-status
diagram
type Link-status
properties
isRef 0
content simple
source <xs:element name="link-status" type="Link-status"/>

element LinkStatusList/direction
diagram
type Link-direction
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="direction" type="Link-direction" minOccurs="0"/>

element LinkStatusList/lanes-number-open
diagram
type Link-lane-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 50
source <xs:element name="lanes-number-open" type="Link-lane-count" minOccurs="0"/>

element LinkStatusList/priority-type
diagram
type Link-priority-type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="priority-type" type="Link-priority-type" minOccurs="0"/>

element LinkStatusList/restriction-axle-count
diagram
type Link-restriction-axle-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 20
source <xs:element name="restriction-axle-count" type="Link-restriction-axle-count" minOccurs="0"/>

element LinkStatusList/restriction-height
diagram
type Link-restriction-height
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 2000
source <xs:element name="restriction-height" type="Link-restriction-height" minOccurs="0"/>

element LinkStatusList/restriction-length
diagram
type Link-restriction-length
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 6000
source <xs:element name="restriction-length" type="Link-restriction-length" minOccurs="0"/>

element LinkStatusList/restriction-weight
diagram
type Link-restriction-weight-vehicle
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 80000
source <xs:element name="restriction-weight" type="Link-restriction-weight-vehicle" minOccurs="0"/>

element LinkStatusList/restriction-width
diagram
type Link-restriction-width
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 2000
source <xs:element name="restriction-width" type="Link-restriction-width" minOccurs="0"/>

element LinkStatusList/restriction-weight-axle
diagram
type Link-restriction-weight-axle
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 20000
source <xs:element name="restriction-weight-axle" type="Link-restriction-weight-axle" minOccurs="0"/>

element LinkStatusList/surface-condition
diagram
type Link-surface-condition
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="surface-condition" type="Link-surface-condition" minOccurs="0"/>

element LinkStatusList/saturation-flag
diagram
type Link-oversaturated-flag
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="saturation-flag" type="Link-oversaturated-flag" minOccurs="0"/>

element LinkStatusList/oversaturated-threshold
diagram
type Link-oversaturated-threshold
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 100
source <xs:element name="oversaturated-threshold" type="Link-oversaturated-threshold" minOccurs="0"/>

element LinkStatusList/level-of-service
diagram
type Link-level-of-service
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="level-of-service" type="Link-level-of-service" minOccurs="0"/>

element LinkStatusList/lane-number
diagram
type Detector-lane-number
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
pattern [01]*
source <xs:element name="lane-number" type="Detector-lane-number" minOccurs="0"/>

element LinkStatusList/link-data-stored
diagram
type Link-data-stored
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="link-data-stored" type="Link-data-stored" minOccurs="0"/>

element LinkStatusList/detection-method
diagram
type Event-detection-method
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="detection-method" type="Event-detection-method" minOccurs="0"/>

element LinkStatusList/link-data-type
diagram
type Link-data-type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="link-data-type" type="Link-data-type" minOccurs="0"/>

element LinkStatusList/data-link-state

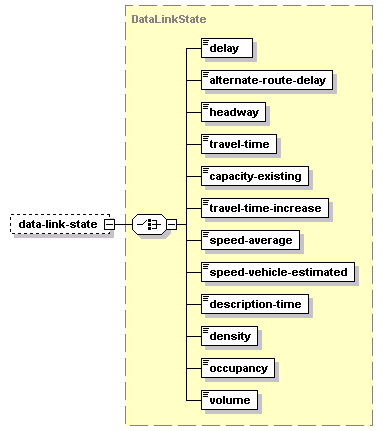

diagram
type DataLinkState
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children delay alternate-route-delay headway travel-time capacity-existing travel-time-increase speed-average speed-vehicle-estimated description-time density occupancy volume
source <xs:element name="data-link-state" type="DataLinkState" minOccurs="0"/>

element LinkStatusList/link-restrictions
diagram
type DataLinkRestrictions
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children speed-limit-advisory speed-limit speed-limit-truck restriction-length restriction-height restriction-width restriction-weight-vehicle restriction-weight-axle restriction-axle-count
source <xs:element name="link-restrictions" type="DataLinkRestrictions" minOccurs="0"/>
