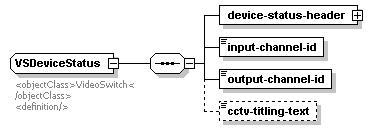

complexType VSDeviceStatus

diagram
namespace	http://www.ite.org/tmdd
children	device-status-header input-channel-id output-channel-id cctv-titling-text
used by	element  vSDeviceStatus
annotation	documentation <objectClass>VideoSwitch</objectClass> <definition/>
source	<xs:complexType name="VSDeviceStatus">   <xs:annotation>     <xs:documentation>       <objectClass>VideoSwitch</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-status-header" type="DeviceStatusHeader"/>     <xs:element name="input-channel-id" type="Organization-resource-identifier"/>     <xs:element name="output-channel-id" type="Organization-resource-identifier"/>     <xs:element name="cctv-titling-text" type="Cctv-titling-text" minOccurs="0"/>   </xs:sequence> </xs:complexType>

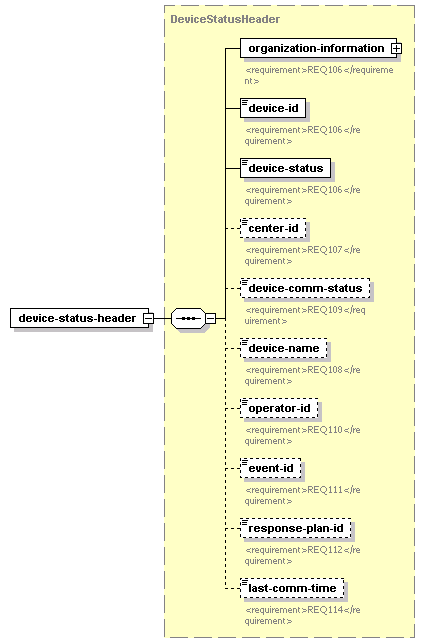

element VSDeviceStatus/device-status-header

diagram
type	DeviceStatusHeader
properties	isRef  0 content  complex
children	organization-information device-id device-status center-id device-comm-status device-name operator-id event-id response-plan-id last-comm-time
source	<xs:element name="device-status-header" type="DeviceStatusHeader"/>

element VSDeviceStatus/input-channel-id

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="input-channel-id" type="Organization-resource-identifier"/>

element VSDeviceStatus/output-channel-id

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="output-channel-id" type="Organization-resource-identifier"/>

element VSDeviceStatus/cctv-titling-text

diagram
type	Cctv-titling-text
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="cctv-titling-text" type="Cctv-titling-text" minOccurs="0"/>
