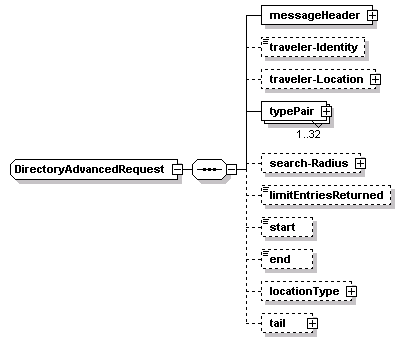

complexType DirectoryAdvancedRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	messageHeader traveler-Identity traveler-Location typePair search-Radius limitEntriesReturned start end locationType tail
used by	element  directoryAdvancedRequest
source	<xs:complexType name="DirectoryAdvancedRequest">   <xs:sequence>     <xs:element name="messageHeader" type="MessageHeader"/>     <xs:element name="traveler-Identity" type="Traveler-Identity" minOccurs="0"/>     <xs:element name="traveler-Location" type="lrms:LocationReference" minOccurs="0"/>     <xs:element name="typePair" type="DirectoryTypePair" maxOccurs="32"/>     <xs:element name="search-Radius" type="SearchRadius" minOccurs="0"/>     <xs:element name="limitEntriesReturned" type="LimitReturns" minOccurs="0"/>     <xs:element name="start" type="DateTimePair" minOccurs="0"/>     <xs:element name="end" type="DateTimePair" minOccurs="0"/>     <xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>     <xs:element name="tail" type="Tail" minOccurs="0"/>   </xs:sequence> </xs:complexType>

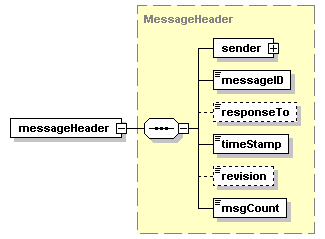

element DirectoryAdvancedRequest/messageHeader

diagram
type	MessageHeader
properties	isRef  0 content  complex
children	sender messageID responseTo timeStamp revision msgCount
source	<xs:element name="messageHeader" type="MessageHeader"/>

element DirectoryAdvancedRequest/traveler-Identity

diagram
type	Traveler-Identity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="traveler-Identity" type="Traveler-Identity" minOccurs="0"/>

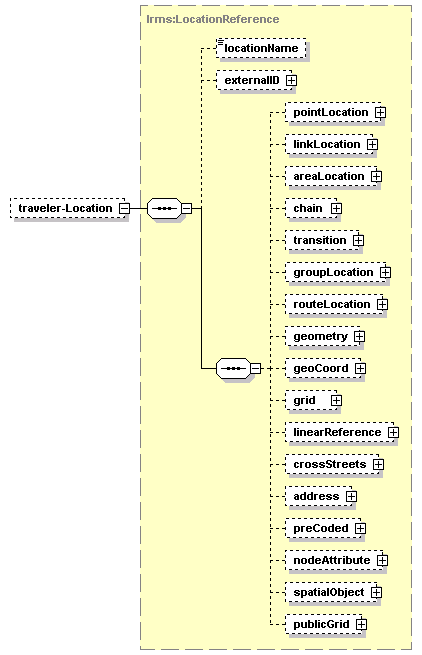

element DirectoryAdvancedRequest/traveler-Location

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="traveler-Location" type="lrms:LocationReference" minOccurs="0"/>

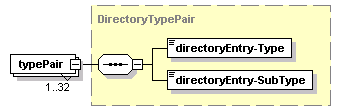

element DirectoryAdvancedRequest/typePair

diagram
type	DirectoryTypePair
properties	isRef  0 minOcc  1 maxOcc  32 content  complex
children	directoryEntry-Type directoryEntry-SubType
source	<xs:element name="typePair" type="DirectoryTypePair" maxOccurs="32"/>

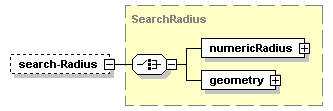

element DirectoryAdvancedRequest/search-Radius

diagram
type	SearchRadius
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	numericRadius geometry
source	<xs:element name="search-Radius" type="SearchRadius" minOccurs="0"/>

element DirectoryAdvancedRequest/limitEntriesReturned

diagram
type	LimitReturns
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1
source	<xs:element name="limitEntriesReturned" type="LimitReturns" minOccurs="0"/>

element DirectoryAdvancedRequest/start

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element DirectoryAdvancedRequest/end

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end" type="DateTimePair" minOccurs="0"/>

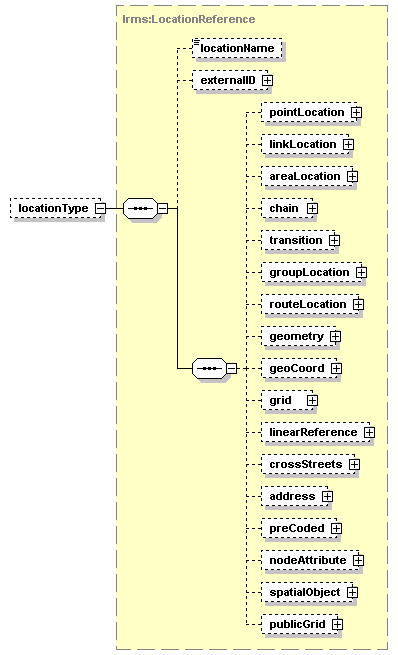

element DirectoryAdvancedRequest/locationType

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>

element DirectoryAdvancedRequest/tail

diagram
type	Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>
