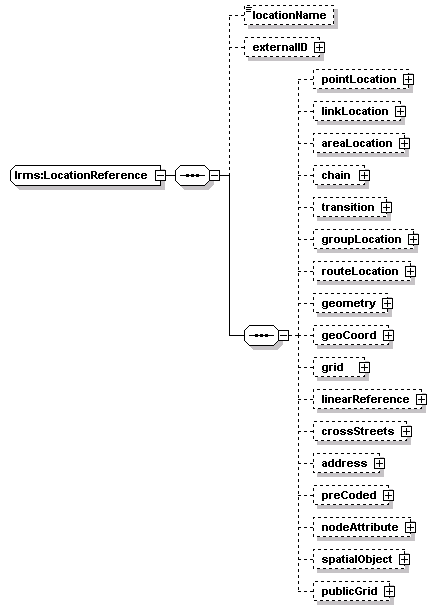

complexType lrms:LocationReference

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
used by	elements  ResponseGroup/coverageArea DirectoryCoreRequest/directoryEntry-LocationType SearchRadius/geometry WeatherInformation/location TransitInformation/location RouteOrLocation/location ParkingLotInformation/location ParkingInstructions/location LinkTrafficInformation/location IncidentInformation/location IdentityOrLocation/location EventInformation/location DirectoryEntry/location AirlineTravelInformation/location DirectoryDetailReply/location DirectoryNameRequest/locationType DirectoryExtendedRequest/locationType DirectoryDetailRequest/locationType DirectoryAdvancedRequest/locationType lrms:GroupLocation/referenceLocation DirectoryAdvancedRequest/traveler-Location
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="LocationReference">   <xs:sequence>     <xs:element name="locationName" type="Text-name255" minOccurs="0"/>     <xs:element name="externalID" type="IdType" minOccurs="0"/>     <xs:sequence>       <xs:element name="pointLocation" type="PointLocation" minOccurs="0"/>       <xs:element name="linkLocation" type="LinkLocation" minOccurs="0"/>       <xs:element name="areaLocation" type="AreaLocation" minOccurs="0"/>       <xs:element name="chain" type="Chain" minOccurs="0"/>       <xs:element name="transition" type="Transition" minOccurs="0"/>       <xs:element name="groupLocation" type="GroupLocation" minOccurs="0"/>       <xs:element name="routeLocation" type="RouteLocation" minOccurs="0"/>       <xs:element name="geometry" type="Geometry" minOccurs="0"/>       <xs:element name="geoCoord" type="GeoCoord" minOccurs="0"/>       <xs:element name="grid" type="Grid" minOccurs="0"/>       <xs:element name="linearReference" type="LinearReference" minOccurs="0"/>       <xs:element name="crossStreets" type="CrossStreets" minOccurs="0"/>       <xs:element name="address" type="Address" minOccurs="0"/>       <xs:element name="preCoded" type="PreCoded" minOccurs="0"/>       <xs:element name="nodeAttribute" type="NodeAttribute" minOccurs="0"/>       <xs:element name="spatialObject" type="SpatialObject" minOccurs="0"/>       <xs:element name="publicGrid" type="PublicGrid" minOccurs="0"/>     </xs:sequence>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:LocationReference/locationName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="locationName" type="Text-name255" minOccurs="0"/>

element lrms:LocationReference/externalID

diagram
type	lrms:IdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	intOrAlpha databaseID
source	<xs:element name="externalID" type="IdType" minOccurs="0"/>

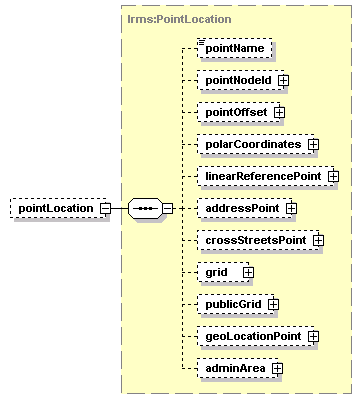

element lrms:LocationReference/pointLocation

diagram
type	lrms:PointLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="pointLocation" type="PointLocation" minOccurs="0"/>

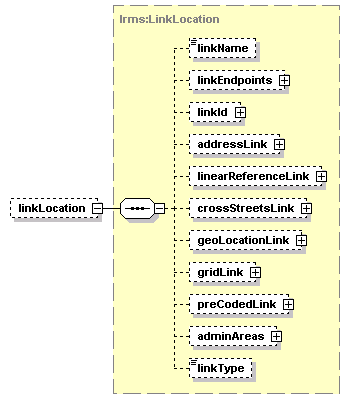

element lrms:LocationReference/linkLocation

diagram
type	lrms:LinkLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	linkName linkEndpoints linkId addressLink linearReferenceLink crossStreetsLink geoLocationLink gridLink preCodedLink adminAreas linkType
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="linkLocation" type="LinkLocation" minOccurs="0"/>

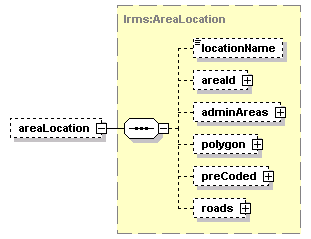

element lrms:LocationReference/areaLocation

diagram
type	lrms:AreaLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName areaId adminAreas polygon preCoded roads
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="areaLocation" type="AreaLocation" minOccurs="0"/>

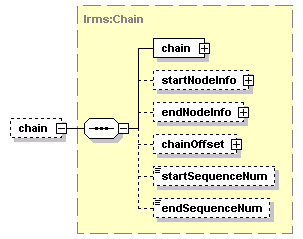

element lrms:LocationReference/chain

diagram
type	lrms:Chain
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	chain startNodeInfo endNodeInfo chainOffset startSequenceNum endSequenceNum
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="chain" type="Chain" minOccurs="0"/>

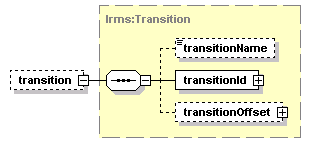

element lrms:LocationReference/transition

diagram
type	lrms:Transition
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	transitionName transitionId transitionOffset
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="transition" type="Transition" minOccurs="0"/>

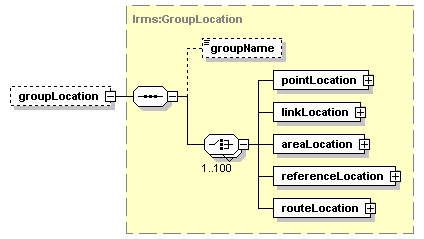

element lrms:LocationReference/groupLocation

diagram
type	lrms:GroupLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	groupName pointLocation linkLocation areaLocation referenceLocation routeLocation
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="groupLocation" type="GroupLocation" minOccurs="0"/>

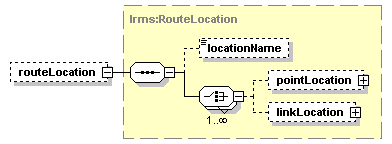

element lrms:LocationReference/routeLocation

diagram
type	lrms:RouteLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName pointLocation linkLocation
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="routeLocation" type="RouteLocation" minOccurs="0"/>

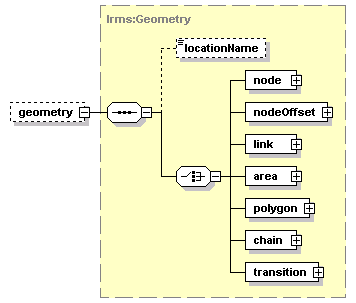

element lrms:LocationReference/geometry

diagram
type	lrms:Geometry
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName node nodeOffset link area polygon chain transition
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="geometry" type="Geometry" minOccurs="0"/>

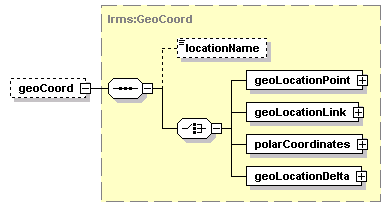

element lrms:LocationReference/geoCoord

diagram
type	lrms:GeoCoord
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName geoLocationPoint geoLocationLink polarCoordinates geoLocationDelta
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="geoCoord" type="GeoCoord" minOccurs="0"/>

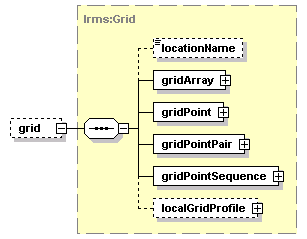

element lrms:LocationReference/grid

diagram
type	lrms:Grid
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName gridArray gridPoint gridPointPair gridPointSequence localGridProfile
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="grid" type="Grid" minOccurs="0"/>

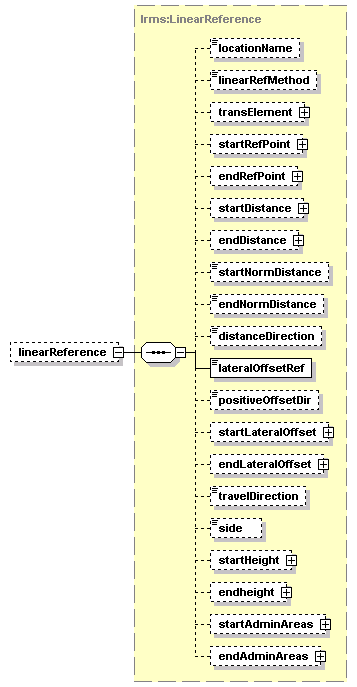

element lrms:LocationReference/linearReference

diagram
type	lrms:LinearReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName linearRefMethod transElement startRefPoint endRefPoint startDistance endDistance startNormDistance endNormDistance distanceDirection lateralOffsetRef positiveOffsetDir startLateralOffset endLateralOffset travelDirection side startHeight endheight startAdminAreas endAdminAreas
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="linearReference" type="LinearReference" minOccurs="0"/>

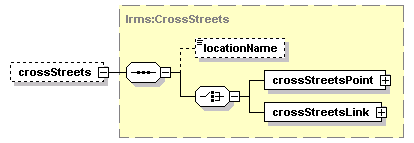

element lrms:LocationReference/crossStreets

diagram
type	lrms:CrossStreets
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName crossStreetsPoint crossStreetsLink
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="crossStreets" type="CrossStreets" minOccurs="0"/>

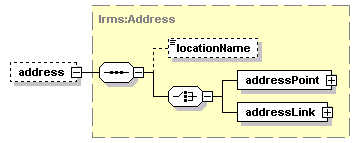

element lrms:LocationReference/address

diagram
type	lrms:Address
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName addressPoint addressLink
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="address" type="Address" minOccurs="0"/>

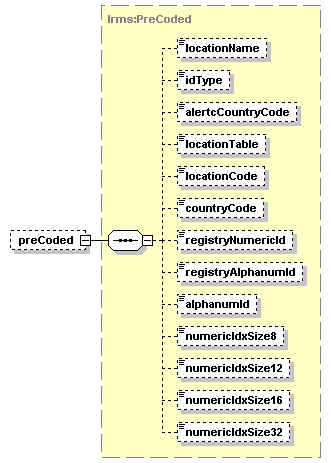

element lrms:LocationReference/preCoded

diagram
type	lrms:PreCoded
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName idType alertcCountryCode locationTable locationCode countryCode registryNumericId registryAlphanumId alphanumId numericIdxSize8 numericIdxSize12 numericIdxSize16 numericIdxSize32
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="preCoded" type="PreCoded" minOccurs="0"/>

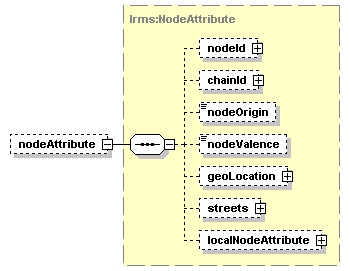

element lrms:LocationReference/nodeAttribute

diagram
type	lrms:NodeAttribute
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	nodeId chainId nodeOrigin nodeValence geoLocation streets localNodeAttribute
source	<xs:element name="nodeAttribute" type="NodeAttribute" minOccurs="0"/>

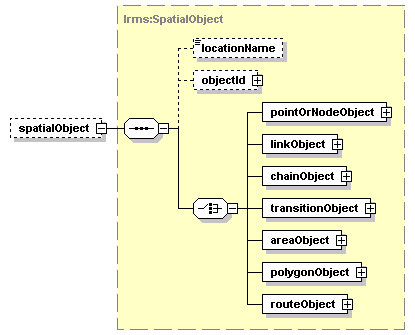

element lrms:LocationReference/spatialObject

diagram
type	lrms:SpatialObject
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName objectId pointOrNodeObject linkObject chainObject transitionObject areaObject polygonObject routeObject
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="spatialObject" type="SpatialObject" minOccurs="0"/>

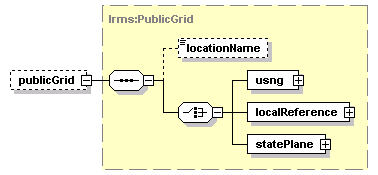

element lrms:LocationReference/publicGrid

diagram
type	lrms:PublicGrid
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName usng localReference statePlane
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="publicGrid" type="PublicGrid" minOccurs="0"/>
