complexType InformationRequestType

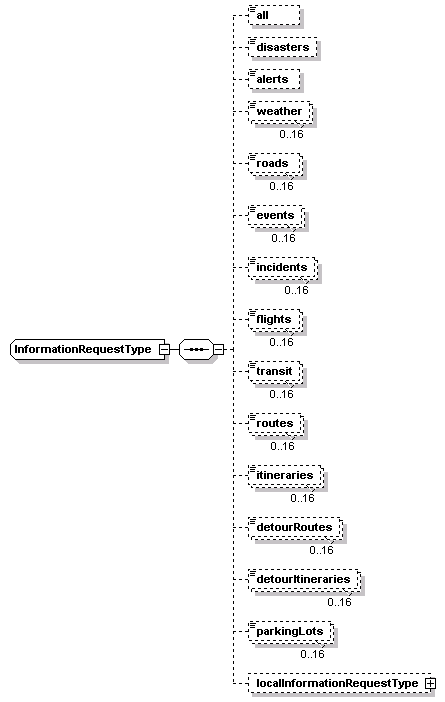

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	all disasters alerts weather roads events incidents flights transit routes itineraries detourRoutes detourItineraries parkingLots localInformationRequestType
used by	element  InformationRequest/filter/dataTypes
source	<xs:complexType name="InformationRequestType">   <xs:sequence>     <xs:element name="all" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <xs:element name="disasters" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- both man made and natural -->     <xs:element name="alerts" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- all types of alert messages including          systems status and public safety -->     <xs:element name="weather" type="WeatherTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="roads" type="RoadTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="events" type="EventTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="incidents" type="EventTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="flights" type="FlightTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="transit" type="TransitTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="routes" type="RouteTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="itineraries" type="RouteTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="detourRoutes" type="RouteTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="detourItineraries" type="RouteTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="parkingLots" type="ParkingTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="localInformationRequestType" type="local:InformationRequestType" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element InformationRequestType/all

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="all" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element InformationRequestType/disasters

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="disasters" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element InformationRequestType/alerts

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="alerts" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element InformationRequestType/weather

diagram
type	WeatherTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="weather" type="WeatherTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/roads

diagram
type	RoadTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="roads" type="RoadTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/events

diagram
type	EventTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="events" type="EventTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/incidents

diagram
type	EventTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="incidents" type="EventTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/flights

diagram
type	FlightTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="flights" type="FlightTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/transit

diagram
type	TransitTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="transit" type="TransitTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/routes

diagram
type	RouteTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="routes" type="RouteTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/itineraries

diagram
type	RouteTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="itineraries" type="RouteTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/detourRoutes

diagram
type	RouteTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="detourRoutes" type="RouteTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/detourItineraries

diagram
type	RouteTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="detourItineraries" type="RouteTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/parkingLots

diagram
type	ParkingTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="parkingLots" type="ParkingTypes" minOccurs="0" maxOccurs="16"/>

element InformationRequestType/localInformationRequestType

diagram
type	local:InformationRequestType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localInformationRequestType" type="local:InformationRequestType" minOccurs="0"/>
