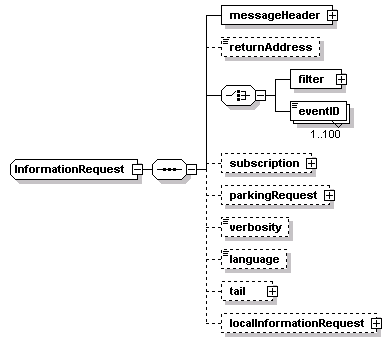

complexType InformationRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	messageHeader returnAddress filter eventID subscription parkingRequest verbosity language tail localInformationRequest
used by	elements  informationRequest ATISMessage/informationRequest
source	<xs:complexType name="InformationRequest">   <xs:sequence>     <xs:element name="messageHeader" type="MessageHeader"/>     <!-- contains the message id,  sender,  time,  etc. -->     <xs:element name="returnAddress" type="URL-Link" minOccurs="0"/>     <!-- this string may be a URI,  an email,  an IP,          or other format to establish a return path -->     <xs:choice>       <xs:element name="filter">         <xs:complexType>           <xs:sequence>             <!-- information filters to apply in the request -->             <xs:element name="location" type="RouteOrLocation" minOccurs="0"/>             <!-- the location for which data is sought -->             <xs:element name="dataTypes" type="InformationRequestType" minOccurs="0"/>             <!-- organized sets of data to request -->             <xs:element name="severity" type="tmdd:Event-incident-severity" minOccurs="0"/>             <xs:element name="issueAgency" type="tmdd:Organization-resource-identifier" minOccurs="0" maxOccurs="16"/>             <!-- centers that originated the data -->             <xs:element name="start" type="DateTimePair" minOccurs="0"/>             <xs:element name="end" type="DateTimePair" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="eventID" type="im:ReferenceID" maxOccurs="100"/>     </xs:choice>     <xs:element name="subscription" type="SubscribeForm" minOccurs="0"/>     <!-- if a subscribe is present,  values inside it will provide          the time interval and frequency of the subscribe -->     <xs:element name="parkingRequest" type="ParkingRequestDetails" minOccurs="0"/>     <xs:element name="verbosity" type="ReplyVerbosity" minOccurs="0"/>     <xs:element name="language" type="LanguageCode" minOccurs="0"/>     <!-- the requested language of the response -->     <xs:element name="tail" type="Tail" minOccurs="0"/>     <xs:element name="localInformationRequest" type="local:InformationRequest" minOccurs="0"/>   </xs:sequence> </xs:complexType>

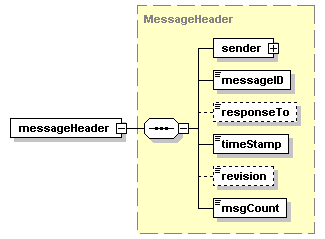

element InformationRequest/messageHeader

diagram
type	MessageHeader
properties	isRef  0 content  complex
children	sender messageID responseTo timeStamp revision msgCount
source	<xs:element name="messageHeader" type="MessageHeader"/>

element InformationRequest/returnAddress

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="returnAddress" type="URL-Link" minOccurs="0"/>

element InformationRequest/filter

diagram
properties	isRef  0 content  complex
children	location dataTypes severity issueAgency start end
source	<xs:element name="filter">   <xs:complexType>     <xs:sequence>       <!-- information filters to apply in the request -->       <xs:element name="location" type="RouteOrLocation" minOccurs="0"/>       <!-- the location for which data is sought -->       <xs:element name="dataTypes" type="InformationRequestType" minOccurs="0"/>       <!-- organized sets of data to request -->       <xs:element name="severity" type="tmdd:Event-incident-severity" minOccurs="0"/>       <xs:element name="issueAgency" type="tmdd:Organization-resource-identifier" minOccurs="0" maxOccurs="16"/>       <!-- centers that originated the data -->       <xs:element name="start" type="DateTimePair" minOccurs="0"/>       <xs:element name="end" type="DateTimePair" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element InformationRequest/filter/location

diagram
type	RouteOrLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	route id location
source	<xs:element name="location" type="RouteOrLocation" minOccurs="0"/>

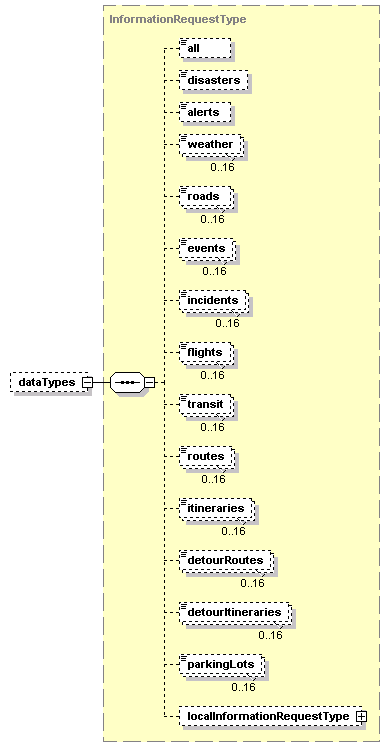

element InformationRequest/filter/dataTypes

diagram
type	InformationRequestType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	all disasters alerts weather roads events incidents flights transit routes itineraries detourRoutes detourItineraries parkingLots localInformationRequestType
source	<xs:element name="dataTypes" type="InformationRequestType" minOccurs="0"/>

element InformationRequest/filter/severity

diagram
type	tmdd:Event-incident-severity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="severity" type="tmdd:Event-incident-severity" minOccurs="0"/>

element InformationRequest/filter/issueAgency

diagram
type	tmdd:Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="issueAgency" type="tmdd:Organization-resource-identifier" minOccurs="0" maxOccurs="16"/>

element InformationRequest/filter/start

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element InformationRequest/filter/end

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end" type="DateTimePair" minOccurs="0"/>

element InformationRequest/eventID

diagram
type	im:ReferenceID
properties	isRef  0 minOcc  1 maxOcc  100 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="eventID" type="im:ReferenceID" maxOccurs="100"/>

element InformationRequest/subscription

diagram
type	SubscribeForm
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	action id start end frequency
source	<xs:element name="subscription" type="SubscribeForm" minOccurs="0"/>

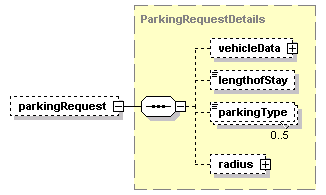

element InformationRequest/parkingRequest

diagram
type	ParkingRequestDetails
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	vehicleData lengthofStay parkingType radius
source	<xs:element name="parkingRequest" type="ParkingRequestDetails" minOccurs="0"/>

element InformationRequest/verbosity

diagram
type	ReplyVerbosity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="verbosity" type="ReplyVerbosity" minOccurs="0"/>

element InformationRequest/language

diagram
type	LanguageCode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="language" type="LanguageCode" minOccurs="0"/>

element InformationRequest/tail

diagram
type	Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>

element InformationRequest/localInformationRequest

diagram
type	local:InformationRequest
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localInformationRequest" type="local:InformationRequest" minOccurs="0"/>
