complexType tcip:SPLink

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	name info begin-lat begin-lon end-lat end-lon dist-along side points
used by	elements  tcip:IMIncident/line-location tcip:SPPoint/linearReference tcip:SpRouteGeoTrace/response/links/link tcip:SCHPatternSegment/trace-links/trace-link
source	<xs:complexType name="SPLink">   <xs:sequence>     <xs:element name="name" type="lrms:Text-name255" minOccurs="0"/>     <xs:element name="info" type="lrms:StreetInfo" minOccurs="0"/>     <xs:element name="begin-lat" type="lrms:Latitude"/>     <xs:element name="begin-lon" type="lrms:Longitude"/>     <xs:element name="end-lat" type="lrms:Latitude"/>     <xs:element name="end-lon" type="lrms:Longitude"/>     <xs:element name="dist-along" type="lrms:NormalizedDistance" minOccurs="0"/>     <!-- only to specify a point along -->     <xs:element name="side" type="lrms:Side"/>     <!-- only to specify which side of the link an item is located. -->     <xs:element name="points" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="50">           <xs:element name="point" type="atis:ShapePoint"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:SPLink/name

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="name" type="lrms:Text-name255" minOccurs="0"/>

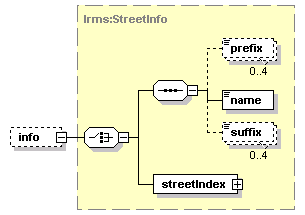

element tcip:SPLink/info

diagram
type	lrms:StreetInfo
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	prefix name suffix streetIndex
source	<xs:element name="info" type="lrms:StreetInfo" minOccurs="0"/>

element tcip:SPLink/begin-lat

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="begin-lat" type="lrms:Latitude"/>

element tcip:SPLink/begin-lon

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="begin-lon" type="lrms:Longitude"/>

element tcip:SPLink/end-lat

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="end-lat" type="lrms:Latitude"/>

element tcip:SPLink/end-lon

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="end-lon" type="lrms:Longitude"/>

element tcip:SPLink/dist-along

diagram
type	lrms:NormalizedDistance
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  0 maxInclusive  100
source	<xs:element name="dist-along" type="lrms:NormalizedDistance" minOccurs="0"/>

element tcip:SPLink/side

diagram
type	lrms:Side
properties	isRef  0 content  simple
source	<xs:element name="side" type="lrms:Side"/>

element tcip:SPLink/points

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	point
source	<xs:element name="points" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="50">       <xs:element name="point" type="atis:ShapePoint"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SPLink/points/point

diagram
type	ShapePoint
properties	isRef  0 content  complex
children	lat long heading vertical
source	<xs:element name="point" type="atis:ShapePoint"/>
