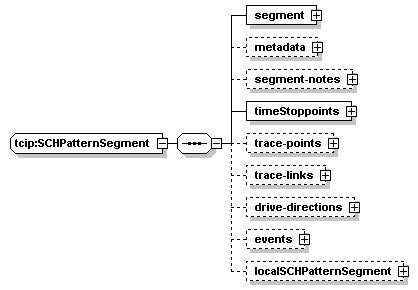

complexType tcip:SCHPatternSegment
diagram
namespace http://www.TCIP-Adopted-03-00-01
children segment metadata segment-notes timeStoppoints trace-points trace-links drive-directions events localSCHPatternSegment
used by
elements tcip:SchPatternFile/segments/segment tcip:SchPatternList/segments/segment tcip:SchPushPatterns/segments/segment
source <xs:complexType name="SCHPatternSegment">
  <xs:sequence>
    <xs:element name="segment" type="SCHPatternSegmentIden"/>
    <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>
    <xs:element name="segment-notes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="segment-note" type="SCHNoteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="timeStoppoints">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="timeStoppoint" type="SCHTimeStoppoint"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="trace-points" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="trace-point" type="lrms:GeoLocation"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="trace-links" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="trace-link" type="SPLink"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="drive-directions" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="drive-direction" type="atis:ManeuverInstruction"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="events" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="event" type="SCHEvent"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSCHPatternSegment" type="local:SCHPatternSegment" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:SCHPatternSegment/segment
diagram
type tcip:SCHPatternSegmentIden
properties
isRef 0
content complex
children segment-id agency-id name
source <xs:element name="segment" type="SCHPatternSegmentIden"/>

element tcip:SCHPatternSegment/metadata
diagram
type tcip:CPTRowMetaData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children created effective expiration activation deactivation updated
source <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:SCHPatternSegment/segment-notes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children segment-note
source <xs:element name="segment-notes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="segment-note" type="SCHNoteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHPatternSegment/segment-notes/segment-note
diagram
type tcip:SCHNoteIden
properties
isRef 0
content complex
children note-id agency-id note-des
source <xs:element name="segment-note" type="SCHNoteIden"/>

element tcip:SCHPatternSegment/timeStoppoints
diagram
properties
isRef 0
content complex
children timeStoppoint
source <xs:element name="timeStoppoints">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="timeStoppoint" type="SCHTimeStoppoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

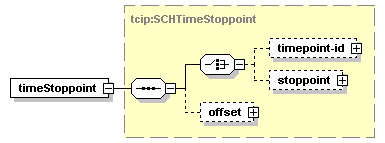

element tcip:SCHPatternSegment/timeStoppoints/timeStoppoint
diagram
type tcip:SCHTimeStoppoint
properties
isRef 0
content complex
children timepoint-id stoppoint offset
source <xs:element name="timeStoppoint" type="SCHTimeStoppoint"/>

element tcip:SCHPatternSegment/trace-points
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children trace-point
source <xs:element name="trace-points" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="trace-point" type="lrms:GeoLocation"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

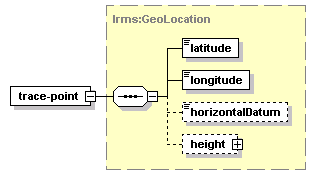

element tcip:SCHPatternSegment/trace-points/trace-point
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
source <xs:element name="trace-point" type="lrms:GeoLocation"/>

element tcip:SCHPatternSegment/trace-links
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children trace-link
source <xs:element name="trace-links" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="trace-link" type="SPLink"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

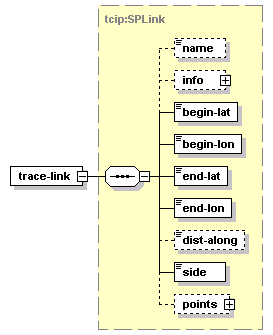

element tcip:SCHPatternSegment/trace-links/trace-link
diagram
type tcip:SPLink
properties
isRef 0
content complex
children name info begin-lat begin-lon end-lat end-lon dist-along side points
source <xs:element name="trace-link" type="SPLink"/>

element tcip:SCHPatternSegment/drive-directions
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children drive-direction
source <xs:element name="drive-directions" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="drive-direction" type="atis:ManeuverInstruction"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

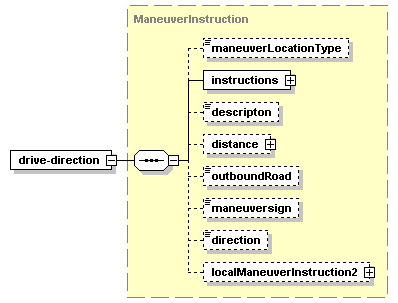

element tcip:SCHPatternSegment/drive-directions/drive-direction
diagram
type ManeuverInstruction
properties
isRef 0
content complex
children maneuverLocationType instructions descripton distance outboundRoad maneuversign direction localManeuverInstruction2
source <xs:element name="drive-direction" type="atis:ManeuverInstruction"/>

element tcip:SCHPatternSegment/events
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children event
source <xs:element name="events" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="event" type="SCHEvent"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

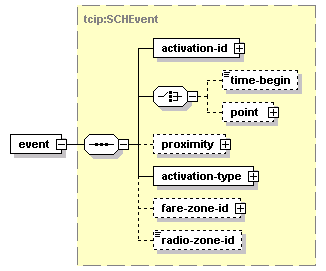

element tcip:SCHPatternSegment/events/event
diagram
type tcip:SCHEvent
properties
isRef 0
content complex
children activation-id time-begin point proximity activation-type fare-zone-id radio-zone-id
source <xs:element name="event" type="SCHEvent"/>

element tcip:SCHPatternSegment/localSCHPatternSegment
diagram
type SCHPatternSegment
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSCHPatternSegment" type="local:SCHPatternSegment" minOccurs="0"/>
