complexType tcip:TSPPRGInputsCCEntry

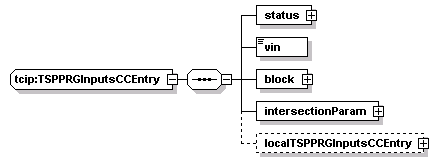

diagram
namespace http://www.TCIP-Adopted-03-00-01
children status vin block intersectionParam localTSPPRGInputsCCEntry
used by
element tcip:TspPRGInputsCC/inputsToPRG/inputsToPRG-item
source <xs:complexType name="TSPPRGInputsCCEntry">
  <xs:sequence>
    <xs:element name="status" type="TSPStatus"/>
    <xs:element name="vin" type="CPT-VIN"/>
    <xs:element name="block" type="SCHBlockIden"/>
    <xs:element name="intersectionParam" type="TSPTmsIntersectionParam"/>
    <xs:element name="localTSPPRGInputsCCEntry" type="local:TSPPRGInputsCCEntry" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:TSPPRGInputsCCEntry/status

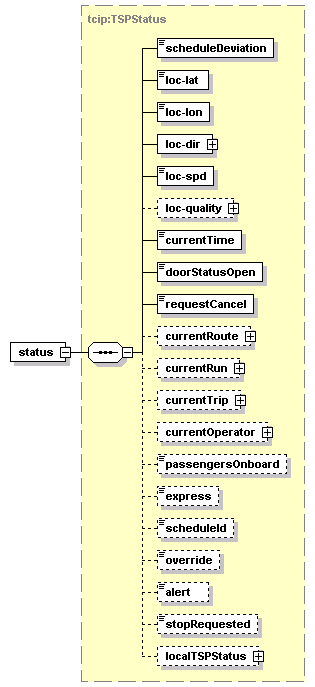

diagram
type tcip:TSPStatus
properties
isRef 0
content complex
children scheduleDeviation loc-lat loc-lon loc-dir loc-spd loc-quality currentTime doorStatusOpen requestCancel currentRoute currentRun currentTrip currentOperator passengersOnboard express scheduleId override alert stopRequested localTSPStatus
source <xs:element name="status" type="TSPStatus"/>

element tcip:TSPPRGInputsCCEntry/vin
diagram
type tcip:CPT-VIN
properties
isRef 0
content simple
facets
minLength 1
maxLength 17
source <xs:element name="vin" type="CPT-VIN"/>

element tcip:TSPPRGInputsCCEntry/block
diagram
type tcip:SCHBlockIden
properties
isRef 0
content complex
children block-id agency-id block-designator block-name
source <xs:element name="block" type="SCHBlockIden"/>

element tcip:TSPPRGInputsCCEntry/intersectionParam

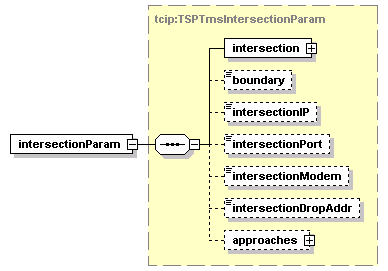

diagram
type tcip:TSPTmsIntersectionParam
properties
isRef 0
content complex
children intersection boundary intersectionIP intersectionPort intersectionModem intersectionDropAddr approaches
source <xs:element name="intersectionParam" type="TSPTmsIntersectionParam"/>

element tcip:TSPPRGInputsCCEntry/localTSPPRGInputsCCEntry
diagram
type TSPPRGInputsCCEntry
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localTSPPRGInputsCCEntry" type="local:TSPPRGInputsCCEntry" minOccurs="0"/>
