complexType tcip:TSPStatus

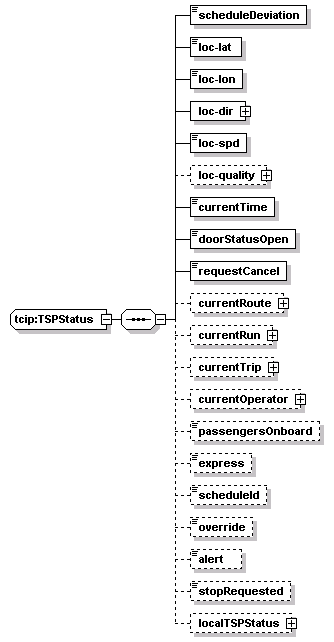

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	scheduleDeviation loc-lat loc-lon loc-dir loc-spd loc-quality currentTime doorStatusOpen requestCancel currentRoute currentRun currentTrip currentOperator passengersOnboard express scheduleId override alert stopRequested localTSPStatus
used by	elements  tcip:TspPRGInputsPTV/currentStatus tcip:TSPPRGInputsCCEntry/status
source	<xs:complexType name="TSPStatus">   <xs:sequence>     <xs:element name="scheduleDeviation" type="OB-ScheduleAdherenceOffset"/>     <xs:element name="loc-lat" type="lrms:Latitude"/>     <xs:element name="loc-lon" type="lrms:Longitude"/>     <xs:element name="loc-dir" type="lrms:Angle"/>     <xs:element name="loc-spd" type="OB-J1587-VelocityVectorSpeed"/>     <xs:element name="loc-quality" type="SPDataQuality" minOccurs="0"/>     <xs:element name="currentTime" type="CPT-DateTime"/>     <xs:element name="doorStatusOpen" type="CPT-Boolean"/>     <xs:element name="requestCancel" type="CPT-Boolean"/>     <xs:element name="currentRoute" type="SCHRouteIden" minOccurs="0"/>     <xs:element name="currentRun" type="SCHRunIden" minOccurs="0"/>     <xs:element name="currentTrip" type="SCHTripIden" minOccurs="0"/>     <xs:element name="currentOperator" type="CPTOperatorIden" minOccurs="0"/>     <xs:element name="passengersOnboard" type="OB-J1587-PassengerCounterPatronCount" minOccurs="0"/>     <xs:element name="express" type="CPT-Boolean" minOccurs="0"/>     <xs:element name="scheduleId" type="SCH-TimetableVersionID" minOccurs="0"/>     <xs:element name="override" type="CPT-Boolean" minOccurs="0"/>     <xs:element name="alert" type="CPT-Boolean" minOccurs="0"/>     <xs:element name="stopRequested" type="CPT-Boolean" minOccurs="0"/>     <xs:element name="localTSPStatus" type="local:TSPStatus" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:TSPStatus/scheduleDeviation

diagram
type	tcip:OB-ScheduleAdherenceOffset
properties	isRef  0 content  simple
source	<xs:element name="scheduleDeviation" type="OB-ScheduleAdherenceOffset"/>

element tcip:TSPStatus/loc-lat

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="loc-lat" type="lrms:Latitude"/>

element tcip:TSPStatus/loc-lon

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="loc-lon" type="lrms:Longitude"/>

element tcip:TSPStatus/loc-dir

diagram
type	lrms:Angle
properties	isRef  0 content  complex
children	deg rad cdeg
source	<xs:element name="loc-dir" type="lrms:Angle"/>

element tcip:TSPStatus/loc-spd

diagram
type	tcip:OB-J1587-VelocityVectorSpeed
properties	isRef  0 content  simple
source	<xs:element name="loc-spd" type="OB-J1587-VelocityVectorSpeed"/>

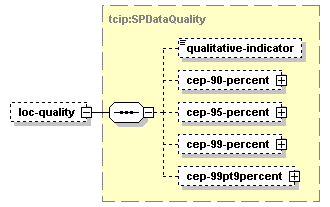

element tcip:TSPStatus/loc-quality

diagram
type	tcip:SPDataQuality
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	qualitative-indicator cep-90-percent cep-95-percent cep-99-percent cep-99pt9percent
source	<xs:element name="loc-quality" type="SPDataQuality" minOccurs="0"/>

element tcip:TSPStatus/currentTime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="currentTime" type="CPT-DateTime"/>

element tcip:TSPStatus/doorStatusOpen

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="doorStatusOpen" type="CPT-Boolean"/>

element tcip:TSPStatus/requestCancel

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="requestCancel" type="CPT-Boolean"/>

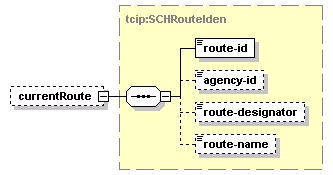

element tcip:TSPStatus/currentRoute

diagram
type	tcip:SCHRouteIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="currentRoute" type="SCHRouteIden" minOccurs="0"/>

element tcip:TSPStatus/currentRun

diagram
type	tcip:SCHRunIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	run-id agency-id designator
source	<xs:element name="currentRun" type="SCHRunIden" minOccurs="0"/>

element tcip:TSPStatus/currentTrip

diagram
type	tcip:SCHTripIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	trip-id agency-id designator
source	<xs:element name="currentTrip" type="SCHTripIden" minOccurs="0"/>

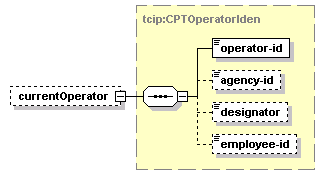

element tcip:TSPStatus/currentOperator

diagram
type	tcip:CPTOperatorIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	operator-id agency-id designator employee-id
source	<xs:element name="currentOperator" type="CPTOperatorIden" minOccurs="0"/>

element tcip:TSPStatus/passengersOnboard

diagram
type	tcip:OB-J1587-PassengerCounterPatronCount
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="passengersOnboard" type="OB-J1587-PassengerCounterPatronCount" minOccurs="0"/>

element tcip:TSPStatus/express

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="express" type="CPT-Boolean" minOccurs="0"/>

element tcip:TSPStatus/scheduleId

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="scheduleId" type="SCH-TimetableVersionID" minOccurs="0"/>

element tcip:TSPStatus/override

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="override" type="CPT-Boolean" minOccurs="0"/>

element tcip:TSPStatus/alert

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="alert" type="CPT-Boolean" minOccurs="0"/>

element tcip:TSPStatus/stopRequested

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="stopRequested" type="CPT-Boolean" minOccurs="0"/>

element tcip:TSPStatus/localTSPStatus

diagram
type	TSPStatus
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localTSPStatus" type="local:TSPStatus" minOccurs="0"/>
