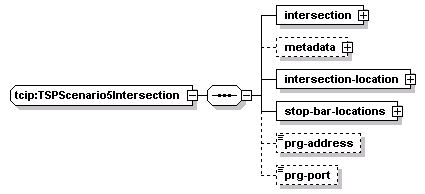

complexType tcip:TSPScenario5Intersection

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	intersection metadata intersection-location stop-bar-locations prg-address prg-port
used by	element  tcip:TspBusinessRules/type-fives/type-five
source	<xs:complexType name="TSPScenario5Intersection">   <xs:sequence>     <xs:element name="intersection" type="CPTIntersectionIden"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="intersection-location" type="lrms:GeoLocation"/>     <xs:element name="stop-bar-locations">       <xs:complexType>         <xs:sequence maxOccurs="8">           <xs:element name="stop-bar-location" type="lrms:GeoLocation"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="prg-address" type="CPT-IP-Address" minOccurs="0"/>     <xs:element name="prg-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>   </xs:sequence> </xs:complexType>

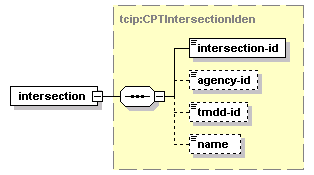

element tcip:TSPScenario5Intersection/intersection

diagram
type	tcip:CPTIntersectionIden
properties	isRef  0 content  complex
children	intersection-id agency-id tmdd-id name
source	<xs:element name="intersection" type="CPTIntersectionIden"/>

element tcip:TSPScenario5Intersection/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

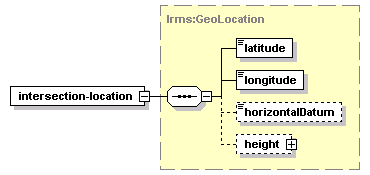

element tcip:TSPScenario5Intersection/intersection-location

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="intersection-location" type="lrms:GeoLocation"/>

element tcip:TSPScenario5Intersection/stop-bar-locations

diagram
properties	isRef  0 content  complex
children	stop-bar-location
source	<xs:element name="stop-bar-locations">   <xs:complexType>     <xs:sequence maxOccurs="8">       <xs:element name="stop-bar-location" type="lrms:GeoLocation"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:TSPScenario5Intersection/stop-bar-locations/stop-bar-location

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="stop-bar-location" type="lrms:GeoLocation"/>

element tcip:TSPScenario5Intersection/prg-address

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="prg-address" type="CPT-IP-Address" minOccurs="0"/>

element tcip:TSPScenario5Intersection/prg-port

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="prg-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>
