complexType tcip:CPTIntersectionIden

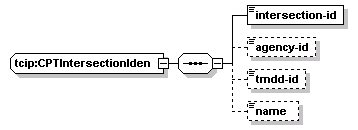

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	intersection-id agency-id tmdd-id name
used by	elements  tcip:TspBusinessRules/deleted-intersections/deleted-intersection tcip:ScpEventLog/intersections/intersection tcip:ScpEventLogSub/intersections/intersection tcip:TspPRGInputsCC/intersections/intersection tcip:TspPRGInputsCCSub/intersections/intersection tcip:TSPAllowedIntersection/intersection tcip:TSPEventLogEntry/intersection tcip:TSPIntersectionEntry/intersection tcip:TSPScenario5Intersection/intersection tcip:TSPScheduleEntry/intersection tcip:TSPTmsIntersectionParam/intersection
source	<xs:complexType name="CPTIntersectionIden">   <xs:sequence>     <xs:element name="intersection-id" type="TSP-TMS-IntersectionID"/>     <xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>     <xs:element name="tmdd-id" type="tmdd:Intersection-identifier" minOccurs="0"/>     <xs:element name="name" type="CPT-GenericName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTIntersectionIden/intersection-id

diagram
type	tcip:TSP-TMS-IntersectionID
properties	isRef  0 content  simple
source	<xs:element name="intersection-id" type="TSP-TMS-IntersectionID"/>

element tcip:CPTIntersectionIden/agency-id

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>

element tcip:CPTIntersectionIden/tmdd-id

diagram
type	tmdd:Intersection-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tmdd-id" type="tmdd:Intersection-identifier" minOccurs="0"/>

element tcip:CPTIntersectionIden/name

diagram
type	tcip:CPT-GenericName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="name" type="CPT-GenericName" minOccurs="0"/>
