complexType tcip:TSPScheduleEntry

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	intersection trips times
used by	element  tcip:TspBusinessRules/schedules/schedule
source	<xs:complexType name="TSPScheduleEntry">   <xs:sequence>     <xs:element name="intersection" type="CPTIntersectionIden"/>     <xs:element name="trips">       <xs:complexType>         <xs:sequence maxOccurs="5000">           <xs:element name="trip" type="SCHTripIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="times">       <xs:complexType>         <xs:sequence maxOccurs="5000">           <xs:element name="time" type="SCH-Time"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:TSPScheduleEntry/intersection

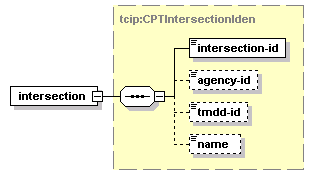

diagram
type	tcip:CPTIntersectionIden
properties	isRef  0 content  complex
children	intersection-id agency-id tmdd-id name
source	<xs:element name="intersection" type="CPTIntersectionIden"/>

element tcip:TSPScheduleEntry/trips

diagram
properties	isRef  0 content  complex
children	trip
source	<xs:element name="trips">   <xs:complexType>     <xs:sequence maxOccurs="5000">       <xs:element name="trip" type="SCHTripIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:TSPScheduleEntry/trips/trip

diagram
type	tcip:SCHTripIden
properties	isRef  0 content  complex
children	trip-id agency-id designator
source	<xs:element name="trip" type="SCHTripIden"/>

element tcip:TSPScheduleEntry/times

diagram
properties	isRef  0 content  complex
children	time
source	<xs:element name="times">   <xs:complexType>     <xs:sequence maxOccurs="5000">       <xs:element name="time" type="SCH-Time"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:TSPScheduleEntry/times/time

diagram
type	tcip:SCH-Time
properties	isRef  0 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="time" type="SCH-Time"/>
