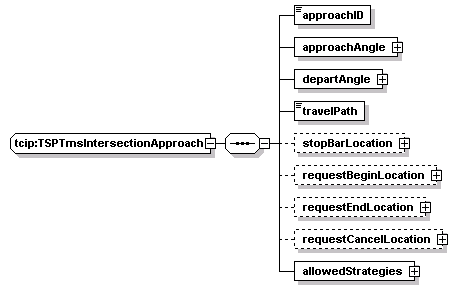

complexType tcip:TSPTmsIntersectionApproach

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	approachID approachAngle departAngle travelPath stopBarLocation requestBeginLocation requestEndLocation requestCancelLocation allowedStrategies
used by	elements  tcip:TSPTmsIntersectionParam/approaches/approache tcip:TSPIntersectionEntry/intersection-approaches/intersection-approache
source	<xs:complexType name="TSPTmsIntersectionApproach">   <xs:sequence>     <xs:element name="approachID" type="TSP-ApproachID"/>     <xs:element name="approachAngle" type="lrms:Angle"/>     <xs:element name="departAngle" type="lrms:Angle"/>     <xs:element name="travelPath" type="TSP-IntersectionPath"/>     <xs:element name="stopBarLocation" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="requestBeginLocation" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="requestEndLocation" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="requestCancelLocation" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="allowedStrategies">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="allowedStrategy" type="SCP-PriorityStrategyNumber"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:TSPTmsIntersectionApproach/approachID

diagram
type	tcip:TSP-ApproachID
properties	isRef  0 content  simple
source	<xs:element name="approachID" type="TSP-ApproachID"/>

element tcip:TSPTmsIntersectionApproach/approachAngle

diagram
type	lrms:Angle
properties	isRef  0 content  complex
children	deg rad cdeg
source	<xs:element name="approachAngle" type="lrms:Angle"/>

element tcip:TSPTmsIntersectionApproach/departAngle

diagram
type	lrms:Angle
properties	isRef  0 content  complex
children	deg rad cdeg
source	<xs:element name="departAngle" type="lrms:Angle"/>

element tcip:TSPTmsIntersectionApproach/travelPath

diagram
type	tcip:TSP-IntersectionPath
properties	isRef  0 content  simple
source	<xs:element name="travelPath" type="TSP-IntersectionPath"/>

element tcip:TSPTmsIntersectionApproach/stopBarLocation

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="stopBarLocation" type="lrms:GeoLocation" minOccurs="0"/>

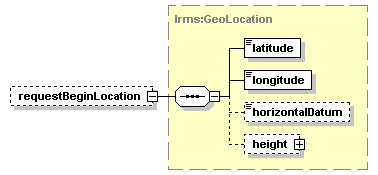

element tcip:TSPTmsIntersectionApproach/requestBeginLocation

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="requestBeginLocation" type="lrms:GeoLocation" minOccurs="0"/>

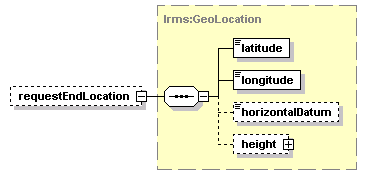

element tcip:TSPTmsIntersectionApproach/requestEndLocation

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="requestEndLocation" type="lrms:GeoLocation" minOccurs="0"/>

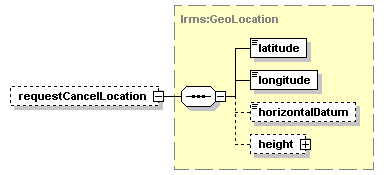

element tcip:TSPTmsIntersectionApproach/requestCancelLocation

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="requestCancelLocation" type="lrms:GeoLocation" minOccurs="0"/>

element tcip:TSPTmsIntersectionApproach/allowedStrategies

diagram
properties	isRef  0 content  complex
children	allowedStrategy
source	<xs:element name="allowedStrategies">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="allowedStrategy" type="SCP-PriorityStrategyNumber"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:TSPTmsIntersectionApproach/allowedStrategies/allowedStrategy

diagram
type	tcip:SCP-PriorityStrategyNumber
properties	isRef  0 content  simple
source	<xs:element name="allowedStrategy" type="SCP-PriorityStrategyNumber"/>
