complexType tcip:TSPIntersectionEntry

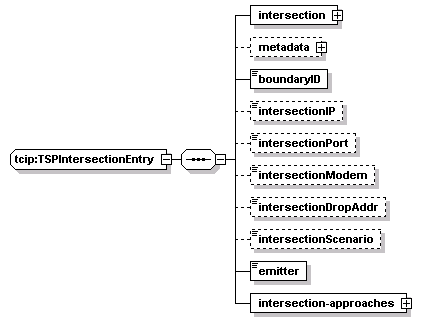

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	intersection metadata boundaryID intersectionIP intersectionPort intersectionModem intersectionDropAddr intersectionScenario emitter intersection-approaches
used by	element  tcip:TspBusinessRules/intersections/intersection
source	<xs:complexType name="TSPIntersectionEntry">   <xs:sequence>     <xs:element name="intersection" type="CPTIntersectionIden"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="boundaryID" type="TSP-BoundaryID"/>     <xs:element name="intersectionIP" type="CPT-IP-Address" minOccurs="0"/>     <xs:element name="intersectionPort" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>     <xs:element name="intersectionModem" type="TSP-ModemPhoneNum" minOccurs="0"/>     <xs:element name="intersectionDropAddr" type="TSP-DropAddr" minOccurs="0"/>     <xs:element name="intersectionScenario" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="emitter" type="CPT-Boolean"/>     <xs:element name="intersection-approaches">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="intersection-approache" type="TSPTmsIntersectionApproach"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:TSPIntersectionEntry/intersection

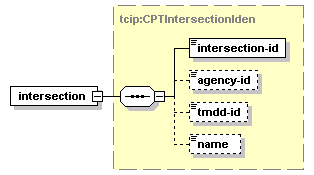

diagram
type	tcip:CPTIntersectionIden
properties	isRef  0 content  complex
children	intersection-id agency-id tmdd-id name
source	<xs:element name="intersection" type="CPTIntersectionIden"/>

element tcip:TSPIntersectionEntry/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:TSPIntersectionEntry/boundaryID

diagram
type	tcip:TSP-BoundaryID
properties	isRef  0 content  simple
source	<xs:element name="boundaryID" type="TSP-BoundaryID"/>

element tcip:TSPIntersectionEntry/intersectionIP

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionIP" type="CPT-IP-Address" minOccurs="0"/>

element tcip:TSPIntersectionEntry/intersectionPort

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionPort" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:TSPIntersectionEntry/intersectionModem

diagram
type	tcip:TSP-ModemPhoneNum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="intersectionModem" type="TSP-ModemPhoneNum" minOccurs="0"/>

element tcip:TSPIntersectionEntry/intersectionDropAddr

diagram
type	tcip:TSP-DropAddr
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionDropAddr" type="TSP-DropAddr" minOccurs="0"/>

element tcip:TSPIntersectionEntry/intersectionScenario

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionScenario" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:TSPIntersectionEntry/emitter

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="emitter" type="CPT-Boolean"/>

element tcip:TSPIntersectionEntry/intersection-approaches

diagram
properties	isRef  0 content  complex
children	intersection-approache
source	<xs:element name="intersection-approaches">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="intersection-approache" type="TSPTmsIntersectionApproach"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:TSPIntersectionEntry/intersection-approaches/intersection-approache

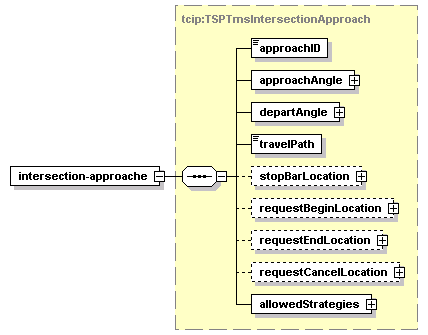

diagram
type	tcip:TSPTmsIntersectionApproach
properties	isRef  0 content  complex
children	approachID approachAngle departAngle travelPath stopBarLocation requestBeginLocation requestEndLocation requestCancelLocation allowedStrategies
source	<xs:element name="intersection-approache" type="TSPTmsIntersectionApproach"/>
