complexType lrms:GroupLocation

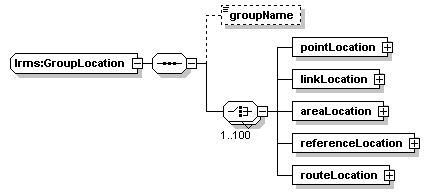

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	groupName pointLocation linkLocation areaLocation referenceLocation routeLocation
used by	element  lrms:LocationReference/groupLocation
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="GroupLocation">   <xs:sequence>     <xs:element name="groupName" type="Text-name255" minOccurs="0"/>     <xs:choice maxOccurs="100">       <xs:element name="pointLocation" type="PointLocation"/>       <xs:element name="linkLocation" type="LinkLocation"/>       <xs:element name="areaLocation" type="AreaLocation"/>       <xs:element name="referenceLocation" type="LocationReference"/>       <xs:element name="routeLocation" type="RouteLocation"/>     </xs:choice>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:GroupLocation/groupName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="groupName" type="Text-name255" minOccurs="0"/>

element lrms:GroupLocation/pointLocation

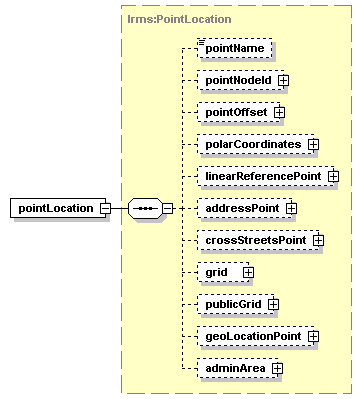

diagram
type	lrms:PointLocation
properties	isRef  0 content  complex
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="pointLocation" type="PointLocation"/>

element lrms:GroupLocation/linkLocation

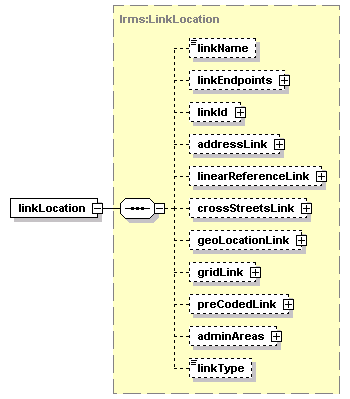

diagram
type	lrms:LinkLocation
properties	isRef  0 content  complex
children	linkName linkEndpoints linkId addressLink linearReferenceLink crossStreetsLink geoLocationLink gridLink preCodedLink adminAreas linkType
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="linkLocation" type="LinkLocation"/>

element lrms:GroupLocation/areaLocation

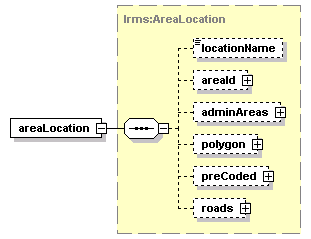

diagram
type	lrms:AreaLocation
properties	isRef  0 content  complex
children	locationName areaId adminAreas polygon preCoded roads
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="areaLocation" type="AreaLocation"/>

element lrms:GroupLocation/referenceLocation

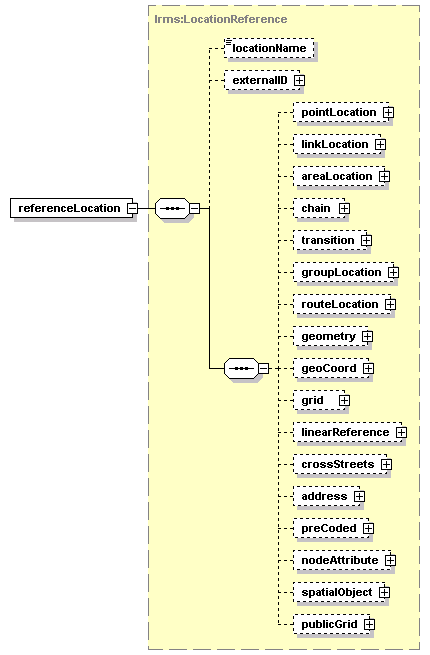

diagram
type	lrms:LocationReference
properties	isRef  0 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="referenceLocation" type="LocationReference"/>

element lrms:GroupLocation/routeLocation

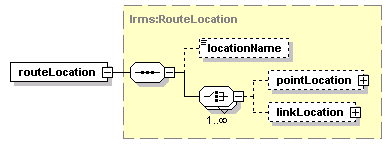

diagram
type	lrms:RouteLocation
properties	isRef  0 content  complex
children	locationName pointLocation linkLocation
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="routeLocation" type="RouteLocation"/>
