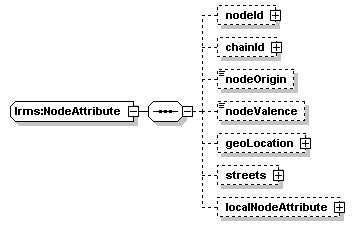

complexType lrms:NodeAttribute

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	nodeId chainId nodeOrigin nodeValence geoLocation streets localNodeAttribute
used by	elements  tcip:CcGISFile/deleted-nodes/deleted-node tcip:SpGIS/deleted-nodes/deleted-node lrms:Chain/endNodeInfo tcip:CcGISFile/nodes/node tcip:SpGIS/nodes/node tcip:SpGISPush/nodes/node lrms:LocationReference/nodeAttribute lrms:Chain/startNodeInfo
source	<xs:complexType name="NodeAttribute">   <xs:sequence>     <xs:element name="nodeId" type="IdType" minOccurs="0"/>     <xs:element name="chainId" type="IdType" minOccurs="0"/>     <xs:element name="nodeOrigin" type="NodeOrigin" minOccurs="0"/>     <xs:element name="nodeValence" type="NodeValence" minOccurs="0"/>     <xs:element name="geoLocation" type="GeoLocation" minOccurs="0"/>     <xs:element name="streets" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="10">           <xs:element name="street" type="StreetInfo"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localNodeAttribute" type="local:NodeAttribute" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element lrms:NodeAttribute/nodeId

diagram
type	lrms:IdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	intOrAlpha databaseID
source	<xs:element name="nodeId" type="IdType" minOccurs="0"/>

element lrms:NodeAttribute/chainId

diagram
type	lrms:IdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	intOrAlpha databaseID
source	<xs:element name="chainId" type="IdType" minOccurs="0"/>

element lrms:NodeAttribute/nodeOrigin

diagram
type	lrms:NodeOrigin
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="nodeOrigin" type="NodeOrigin" minOccurs="0"/>

element lrms:NodeAttribute/nodeValence

diagram
type	lrms:NodeValence
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  7
source	<xs:element name="nodeValence" type="NodeValence" minOccurs="0"/>

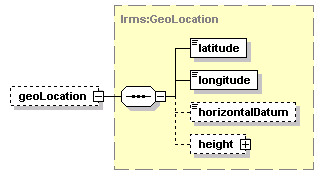

element lrms:NodeAttribute/geoLocation

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="geoLocation" type="GeoLocation" minOccurs="0"/>

element lrms:NodeAttribute/streets

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	street
source	<xs:element name="streets" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="10">       <xs:element name="street" type="StreetInfo"/>     </xs:sequence>   </xs:complexType> </xs:element>

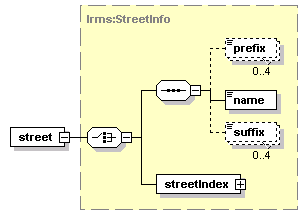

element lrms:NodeAttribute/streets/street

diagram
type	lrms:StreetInfo
properties	isRef  0 content  complex
children	prefix name suffix streetIndex
source	<xs:element name="street" type="StreetInfo"/>

element lrms:NodeAttribute/localNodeAttribute

diagram
type	NodeAttribute
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localNodeAttribute" type="local:NodeAttribute" minOccurs="0"/>
