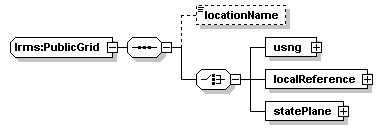

complexType lrms:PublicGrid

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	locationName usng localReference statePlane
used by	elements  lrms:LocationReference/publicGrid lrms:PointLocation/publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="PublicGrid">   <xs:sequence>     <xs:element name="locationName" type="Text-name255" minOccurs="0"/>     <xs:choice>       <xs:element name="usng" type="PublicGridUSNG"/>       <xs:element name="localReference" type="PublicGridLocalReference"/>       <xs:element name="statePlane" type="PublicGridStatePlane"/>     </xs:choice>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:PublicGrid/locationName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="locationName" type="Text-name255" minOccurs="0"/>

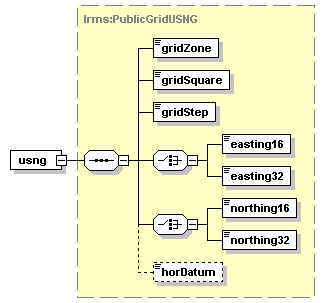

element lrms:PublicGrid/usng

diagram
type	lrms:PublicGridUSNG
properties	isRef  0 content  complex
children	gridZone gridSquare gridStep easting16 easting32 northing16 northing32 horDatum
source	<xs:element name="usng" type="PublicGridUSNG"/>

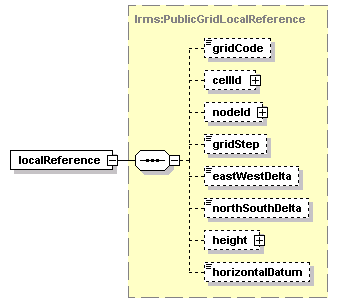

element lrms:PublicGrid/localReference

diagram
type	lrms:PublicGridLocalReference
properties	isRef  0 content  complex
children	gridCode cellId nodeId gridStep eastWestDelta northSouthDelta height horizontalDatum
source	<xs:element name="localReference" type="PublicGridLocalReference"/>

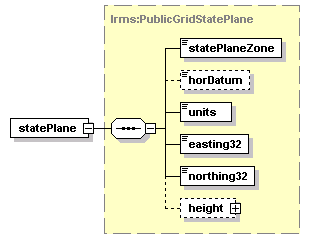

element lrms:PublicGrid/statePlane

diagram
type	lrms:PublicGridStatePlane
properties	isRef  0 content  complex
children	statePlaneZone horDatum units easting32 northing32 height
source	<xs:element name="statePlane" type="PublicGridStatePlane"/>
