complexType tcip:CcDGPS

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo corrections
used by	element  tcip:ccDGPS
source	<xs:complexType name="CcDGPS">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="corrections">       <xs:complexType>         <xs:sequence maxOccurs="32">           <xs:element name="correction" type="OBBusDGPSDifferentialCorrection"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:CcDGPS/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:CcDGPS/corrections

diagram
properties	isRef  0 content  complex
children	correction
source	<xs:element name="corrections">   <xs:complexType>     <xs:sequence maxOccurs="32">       <xs:element name="correction" type="OBBusDGPSDifferentialCorrection"/>     </xs:sequence>   </xs:complexType> </xs:element>

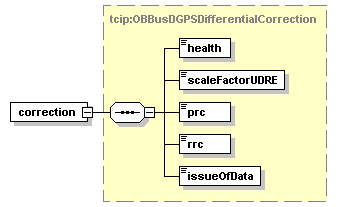

element tcip:CcDGPS/corrections/correction

diagram
type	tcip:OBBusDGPSDifferentialCorrection
properties	isRef  0 content  complex
children	health scaleFactorUDRE prc rrc issueOfData
source	<xs:element name="correction" type="OBBusDGPSDifferentialCorrection"/>
