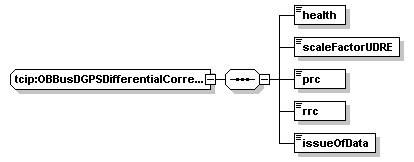

complexType tcip:OBBusDGPSDifferentialCorrection

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	health scaleFactorUDRE prc rrc issueOfData
used by	elements  tcip:CcDGPS/corrections/correction tcip:CcDGPSPush/corrections/correction
source	<xs:complexType name="OBBusDGPSDifferentialCorrection">   <xs:sequence>     <xs:element name="health" type="OB-J1587-DGPSZCountStationHealth"/>     <xs:element name="scaleFactorUDRE" type="OB-J1587-DGPSScaleFactorUDRESatelliteID"/>     <xs:element name="prc" type="OB-J1587-DGPSPseudorangeCorrection"/>     <xs:element name="rrc" type="OB-J1587-DGPSRangeRateCorrection"/>     <xs:element name="issueOfData" type="OB-J1587-DGPSIssueofData"/>   </xs:sequence> </xs:complexType>

element tcip:OBBusDGPSDifferentialCorrection/health

diagram
type	tcip:OB-J1587-DGPSZCountStationHealth
properties	isRef  0 content  simple
source	<xs:element name="health" type="OB-J1587-DGPSZCountStationHealth"/>

element tcip:OBBusDGPSDifferentialCorrection/scaleFactorUDRE

diagram
type	tcip:OB-J1587-DGPSScaleFactorUDRESatelliteID
properties	isRef  0 content  simple
source	<xs:element name="scaleFactorUDRE" type="OB-J1587-DGPSScaleFactorUDRESatelliteID"/>

element tcip:OBBusDGPSDifferentialCorrection/prc

diagram
type	tcip:OB-J1587-DGPSPseudorangeCorrection
properties	isRef  0 content  simple
source	<xs:element name="prc" type="OB-J1587-DGPSPseudorangeCorrection"/>

element tcip:OBBusDGPSDifferentialCorrection/rrc

diagram
type	tcip:OB-J1587-DGPSRangeRateCorrection
properties	isRef  0 content  simple
source	<xs:element name="rrc" type="OB-J1587-DGPSRangeRateCorrection"/>

element tcip:OBBusDGPSDifferentialCorrection/issueOfData

diagram
type	tcip:OB-J1587-DGPSIssueofData
properties	isRef  0 content  simple
source	<xs:element name="issueOfData" type="OB-J1587-DGPSIssueofData"/>
