complexType tcip:CCOffRouteTrack

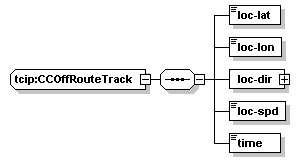

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	loc-lat loc-lon loc-dir loc-spd time
used by	element  tcip:CCRouteDeviationRecord/track/track-item
source	<xs:complexType name="CCOffRouteTrack">   <xs:sequence>     <xs:element name="loc-lat" type="lrms:Latitude"/>     <xs:element name="loc-lon" type="lrms:Longitude"/>     <xs:element name="loc-dir" type="lrms:Angle"/>     <xs:element name="loc-spd" type="OB-J1587-VelocityVectorSpeed"/>     <xs:element name="time" type="CPT-DateTime"/>   </xs:sequence> </xs:complexType>

element tcip:CCOffRouteTrack/loc-lat

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="loc-lat" type="lrms:Latitude"/>

element tcip:CCOffRouteTrack/loc-lon

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="loc-lon" type="lrms:Longitude"/>

element tcip:CCOffRouteTrack/loc-dir

diagram
type	lrms:Angle
properties	isRef  0 content  complex
children	deg rad cdeg
source	<xs:element name="loc-dir" type="lrms:Angle"/>

element tcip:CCOffRouteTrack/loc-spd

diagram
type	tcip:OB-J1587-VelocityVectorSpeed
properties	isRef  0 content  simple
source	<xs:element name="loc-spd" type="OB-J1587-VelocityVectorSpeed"/>

element tcip:CCOffRouteTrack/time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time" type="CPT-DateTime"/>
