complexType tcip:CCRouteDeviationRecord

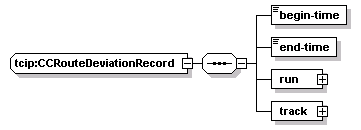

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	begin-time end-time run track
used by	element  tcip:CCBlockWorkRecord/deviations/deviation
source	<xs:complexType name="CCRouteDeviationRecord">   <xs:sequence>     <xs:element name="begin-time" type="CPT-DateTime"/>     <xs:element name="end-time" type="CPT-DateTime"/>     <xs:element name="run" type="SCHRunIden"/>     <xs:element name="track">       <xs:complexType>         <xs:sequence maxOccurs="15000">           <xs:element name="track-item" type="CCOffRouteTrack"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:CCRouteDeviationRecord/begin-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="begin-time" type="CPT-DateTime"/>

element tcip:CCRouteDeviationRecord/end-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="end-time" type="CPT-DateTime"/>

element tcip:CCRouteDeviationRecord/run

diagram
type	tcip:SCHRunIden
properties	isRef  0 content  complex
children	run-id agency-id designator
source	<xs:element name="run" type="SCHRunIden"/>

element tcip:CCRouteDeviationRecord/track

diagram
properties	isRef  0 content  complex
children	track-item
source	<xs:element name="track">   <xs:complexType>     <xs:sequence maxOccurs="15000">       <xs:element name="track-item" type="CCOffRouteTrack"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CCRouteDeviationRecord/track/track-item

diagram
type	tcip:CCOffRouteTrack
properties	isRef  0 content  complex
children	loc-lat loc-lon loc-dir loc-spd time
source	<xs:element name="track-item" type="CCOffRouteTrack"/>
