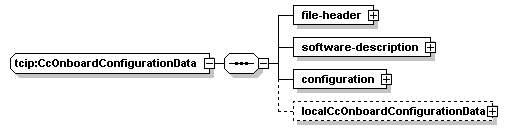

complexType tcip:CcOnboardConfigurationData
diagram
namespace http://www.TCIP-Adopted-03-00-01
children file-header software-description configuration localCcOnboardConfigurationData
used by
element tcip:ccOnboardConfigurationData
source <xs:complexType name="CcOnboardConfigurationData">
  <xs:sequence>
    <xs:element name="file-header" type="CPTLoadFileHeader"/>
    <xs:element name="software-description" type="OBSWComponent"/>
    <xs:element name="configuration">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="configuration-item" type="CC-ConfigurationData"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localCcOnboardConfigurationData" type="local:CcOnboardConfigurationData" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

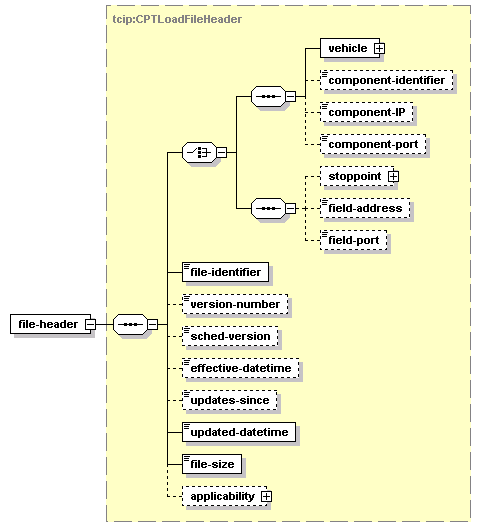

element tcip:CcOnboardConfigurationData/file-header
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="file-header" type="CPTLoadFileHeader"/>

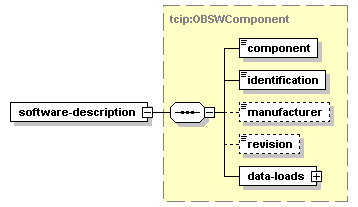

element tcip:CcOnboardConfigurationData/software-description
diagram
type tcip:OBSWComponent
properties
isRef 0
content complex
children component identification manufacturer revision data-loads
source <xs:element name="software-description" type="OBSWComponent"/>

element tcip:CcOnboardConfigurationData/configuration
diagram
properties
isRef 0
content complex
children configuration-item
source <xs:element name="configuration">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="configuration-item" type="CC-ConfigurationData"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CcOnboardConfigurationData/configuration/configuration-item
diagram
type tcip:CC-ConfigurationData
properties
isRef 0
content simple
facets
maxLength 2000000
source <xs:element name="configuration-item" type="CC-ConfigurationData"/>

element tcip:CcOnboardConfigurationData/localCcOnboardConfigurationData
diagram
type CcOnboardConfigurationData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localCcOnboardConfigurationData" type="local:CcOnboardConfigurationData" minOccurs="0"/>
