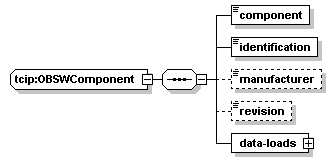

complexType tcip:OBSWComponent

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	component identification manufacturer revision data-loads
used by	elements  tcip:CcOnboardConfigurationData/software-description tcip:CcOnboardSoftware/software-description tcip:FcFareHealth/software-info
source	<xs:complexType name="OBSWComponent">   <xs:sequence>     <xs:element name="component" type="OB-MID"/>     <xs:element name="identification" type="OB-J1587-SoftwareIdentification"/>     <xs:element name="manufacturer" type="CPT-Manufacturer" minOccurs="0"/>     <xs:element name="revision" type="CPT-VersionNo" minOccurs="0"/>     <xs:element name="data-loads">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="data-load" type="OBSWDataLoadID"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:OBSWComponent/component

diagram
type	tcip:OB-MID
properties	isRef  0 content  simple
source	<xs:element name="component" type="OB-MID"/>

element tcip:OBSWComponent/identification

diagram
type	tcip:OB-J1587-SoftwareIdentification
properties	isRef  0 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="identification" type="OB-J1587-SoftwareIdentification"/>

element tcip:OBSWComponent/manufacturer

diagram
type	tcip:CPT-Manufacturer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  20
source	<xs:element name="manufacturer" type="CPT-Manufacturer" minOccurs="0"/>

element tcip:OBSWComponent/revision

diagram
type	tcip:CPT-VersionNo
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="revision" type="CPT-VersionNo" minOccurs="0"/>

element tcip:OBSWComponent/data-loads

diagram
properties	isRef  0 content  complex
children	data-load
source	<xs:element name="data-loads">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="data-load" type="OBSWDataLoadID"/>     </xs:sequence>   </xs:complexType> </xs:element>

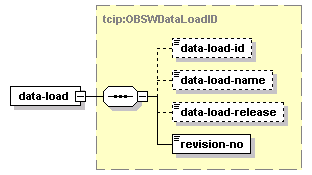

element tcip:OBSWComponent/data-loads/data-load

diagram
type	tcip:OBSWDataLoadID
properties	isRef  0 content  complex
children	data-load-id data-load-name data-load-release revision-no
source	<xs:element name="data-load" type="OBSWDataLoadID"/>
