complexType tcip:CcOnboardSoftware

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	file-header software-description executable
used by	element  tcip:ccOnboardSoftware
source	<xs:complexType name="CcOnboardSoftware">   <xs:sequence>     <xs:element name="file-header" type="CPTLoadFileHeader"/>     <xs:element name="software-description" type="OBSWComponent"/>     <xs:element name="executable">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="executable-item" type="CC-ExecutableSoftware"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

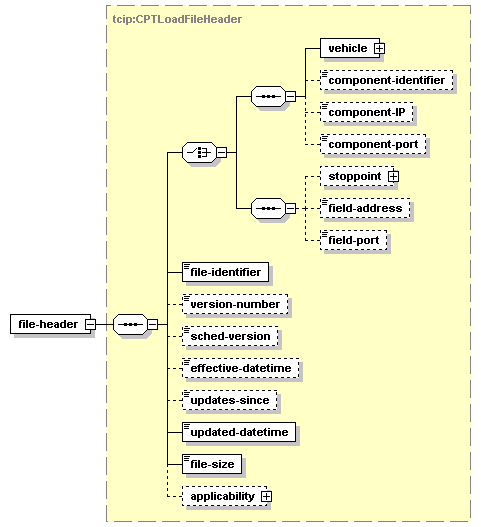

element tcip:CcOnboardSoftware/file-header

diagram
type	tcip:CPTLoadFileHeader
properties	isRef  0 content  complex
children	vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source	<xs:element name="file-header" type="CPTLoadFileHeader"/>

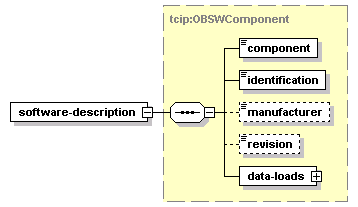

element tcip:CcOnboardSoftware/software-description

diagram
type	tcip:OBSWComponent
properties	isRef  0 content  complex
children	component identification manufacturer revision data-loads
source	<xs:element name="software-description" type="OBSWComponent"/>

element tcip:CcOnboardSoftware/executable

diagram
properties	isRef  0 content  complex
children	executable-item
source	<xs:element name="executable">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="executable-item" type="CC-ExecutableSoftware"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CcOnboardSoftware/executable/executable-item

diagram
type	tcip:CC-ExecutableSoftware
properties	isRef  0 content  simple
facets	maxLength  2000000
source	<xs:element name="executable-item" type="CC-ExecutableSoftware"/>
