complexType tcip:CCRouteAdherenceEntry

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	off-route-distance report-frequency
used by	element  tcip:CCActivateRouteAdherence/criteria-records/criteria-record
source	<xs:complexType name="CCRouteAdherenceEntry">   <xs:sequence>     <xs:element name="off-route-distance" type="lrms:Distance"/>     <xs:element name="report-frequency" type="CC-ExceptionFrequencyReport" minOccurs="0"/>   </xs:sequence> </xs:complexType>

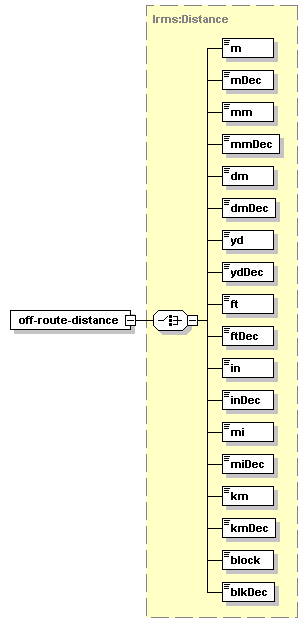

element tcip:CCRouteAdherenceEntry/off-route-distance

diagram
type	lrms:Distance
properties	isRef  0 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="off-route-distance" type="lrms:Distance"/>

element tcip:CCRouteAdherenceEntry/report-frequency

diagram
type	tcip:CC-ExceptionFrequencyReport
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="report-frequency" type="CC-ExceptionFrequencyReport" minOccurs="0"/>
