complexType lrms:Distance

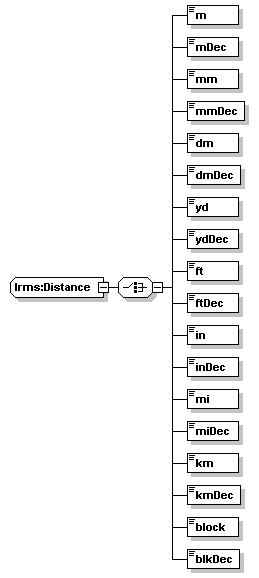

diagram
namespace http://www.LRMS-Adopted-02-00-00
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
used by
elements lrms:Height/altitude lrms:PolarCoordinates/angularDistance tcip:SPDataQuality/cep-90-percent tcip:SPDataQuality/cep-95-percent tcip:SPDataQuality/cep-99-percent tcip:SPDataQuality/cep-99pt9percent lrms:Chain/chainOffset tcip:PiLocationMap/distance tcip:PiLandmarksListSub/distance tcip:PiLandmarksList/distance tcip:PiStoppointParking/distance tcip:CPTStoppoint/distance tcip:PiLocationMapSub/distance tcip:PiServiceListSub/distance ManeuverInstruction/distance tcip:PiServiceList/distance Segment/distance tcip:CcAnnouncementInfo/defaults/distance-before tcip:CPTStoppoint/distanceFromInt lrms:LinearReference/endDistance lrms:LinearReference/endLateralOffset tcip:SCHPatternInfo/eventsOffsets/eventsOffset tcip:PiNearestStopListSub/includeDistance tcip:PiNearestStopList/includeDistance tcip:CPTStoppoint/length SearchRadius/numericRadius tcip:CCRouteAdherenceEntry/off-route-distance tcip:SCHTimeStoppoint/offset lrms:CrossStreetsPoint/offset lrms:CrossStreetsLink/offset1 lrms:CrossStreetsLink/offset2 lrms:PointOffset/offsetEast lrms:GeoLocationDelta/delta/deltaDistance/offsetEast lrms:Geometry/nodeOffset/offsetEast tcip:SPInteriorLocation/offsetEast tcip:SPInteriorLocation/offsetNorth lrms:Geometry/nodeOffset/offsetNorth lrms:PointOffset/offsetNorth lrms:GeoLocationDelta/delta/deltaDistance/offsetNorth tcip:SCHEvent/proximity LocationPoint/radius ParkingRequestDetails/radius tcip:SPBoundaryRange/radius tcip:ImIncidentHistory/radius tcip:ImIncidentHistorySub/radius tcip:ImIncidentList/radius tcip:CCActivateRouteAdherence/return-path-distance tcip:SCHPatternInfo/segmentOffsets/segmentOffset lrms:LinearReference/startDistance lrms:LinearReference/startLateralOffset tcip:CCStopAnnunciationRecord/custom-settings/stop-distance lrms:Transition/transitionOffset tcip:CPTStoppoint/trfcSigPastDist tcip:CPTStoppoint/trfcSigPriorDist SubRoute/tripTotalDistance Route/tripTotalDistance
source <xs:complexType name="Distance">
  <xs:choice>
    <xs:element name="m">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-10000000"/>
          <xs:maxInclusive value="+10000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="mDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-10000000"/>
          <xs:maxInclusive value="+10000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="mm">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="mmDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="dm">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="dmDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="yd">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-17600000"/>
          <xs:maxInclusive value="+17600000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ydDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-17600000"/>
          <xs:maxInclusive value="+17600000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ft">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-52800000"/>
          <xs:maxInclusive value="+52800000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ftDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-52800000"/>
          <xs:maxInclusive value="+52800000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="in">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="inDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="mi">
      <xs:simpleType>
        <xs:restriction base="xs:short">
          <xs:minInclusive value="-10000"/>
          <xs:maxInclusive value="+10000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="miDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-10000"/>
          <xs:maxInclusive value="+10000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="km">
      <xs:simpleType>
        <xs:restriction base="xs:short">
          <xs:minInclusive value="-10000"/>
          <xs:maxInclusive value="+10000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="kmDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-10000"/>
          <xs:maxInclusive value="+10000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="block">
      <xs:simpleType>
        <xs:restriction base="xs:short">
          <xs:minInclusive value="-1000"/>
          <xs:maxInclusive value="+1000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="blkDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-1000"/>
          <xs:maxInclusive value="+1000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:choice>
</xs:complexType>

element lrms:Distance/m
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -10000000
maxInclusive +10000000
source <xs:element name="m">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-10000000"/>
      <xs:maxInclusive value="+10000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/mDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -10000000
maxInclusive +10000000
source <xs:element name="mDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-10000000"/>
      <xs:maxInclusive value="+10000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/mm
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="mm">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/mmDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="mmDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/dm
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="dm">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/dmDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="dmDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/yd
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -17600000
maxInclusive +17600000
source <xs:element name="yd">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-17600000"/>
      <xs:maxInclusive value="+17600000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/ydDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -17600000
maxInclusive +17600000
source <xs:element name="ydDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-17600000"/>
      <xs:maxInclusive value="+17600000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/ft
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -52800000
maxInclusive +52800000
source <xs:element name="ft">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-52800000"/>
      <xs:maxInclusive value="+52800000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/ftDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -52800000
maxInclusive +52800000
source <xs:element name="ftDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-52800000"/>
      <xs:maxInclusive value="+52800000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/in
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="in">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/inDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="inDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/mi
diagram
type restriction of xs:short
properties
isRef 0
content simple
facets
minInclusive -10000
maxInclusive +10000
source <xs:element name="mi">
  <xs:simpleType>
    <xs:restriction base="xs:short">
      <xs:minInclusive value="-10000"/>
      <xs:maxInclusive value="+10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/miDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -10000
maxInclusive +10000
source <xs:element name="miDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-10000"/>
      <xs:maxInclusive value="+10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/km
diagram
type restriction of xs:short
properties
isRef 0
content simple
facets
minInclusive -10000
maxInclusive +10000
source <xs:element name="km">
  <xs:simpleType>
    <xs:restriction base="xs:short">
      <xs:minInclusive value="-10000"/>
      <xs:maxInclusive value="+10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/kmDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -10000
maxInclusive +10000
source <xs:element name="kmDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-10000"/>
      <xs:maxInclusive value="+10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/block
diagram
type restriction of xs:short
properties
isRef 0
content simple
facets
minInclusive -1000
maxInclusive +1000
source <xs:element name="block">
  <xs:simpleType>
    <xs:restriction base="xs:short">
      <xs:minInclusive value="-1000"/>
      <xs:maxInclusive value="+1000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/blkDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -1000
maxInclusive +1000
source <xs:element name="blkDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-1000"/>
      <xs:maxInclusive value="+1000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
