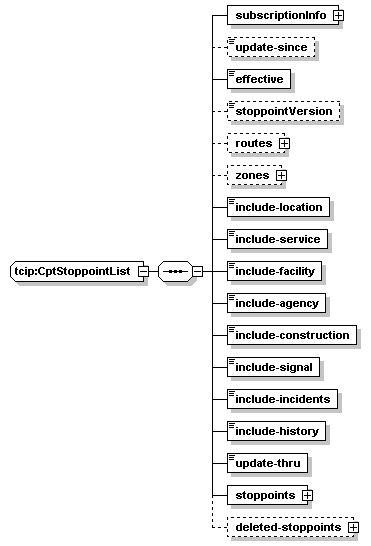

complexType tcip:CptStoppointList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo update-since effective stoppointVersion routes zones include-location include-service include-facility include-agency include-construction include-signal include-incidents include-history update-thru stoppoints deleted-stoppoints
used by
element tcip:cptStoppointList
source <xs:complexType name="CptStoppointList">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="effective" type="CPT-DateTime"/>
    <xs:element name="stoppointVersion" type="CPT-StoppointVersion" minOccurs="0"/>
    <xs:element name="routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="zones" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="zone" type="PIServiceZoneIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="include-location" type="CPT-Boolean"/>
    <xs:element name="include-service" type="CPT-Boolean"/>
    <xs:element name="include-facility" type="CPT-Boolean"/>
    <xs:element name="include-agency" type="CPT-Boolean"/>
    <xs:element name="include-construction" type="CPT-Boolean"/>
    <xs:element name="include-signal" type="CPT-Boolean"/>
    <xs:element name="include-incidents" type="CPT-Boolean"/>
    <xs:element name="include-history" type="CPT-Boolean"/>
    <xs:element name="update-thru" type="CPT-DateTime"/>
    <xs:element name="stoppoints">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stoppoint" type="CPTStoppoint"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-stoppoints" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="deleted-stoppoint" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:CptStoppointList/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:CptStoppointList/update-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:CptStoppointList/effective
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="effective" type="CPT-DateTime"/>

element tcip:CptStoppointList/stoppointVersion
diagram
type tcip:CPT-StoppointVersion
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="stoppointVersion" type="CPT-StoppointVersion" minOccurs="0"/>

element tcip:CptStoppointList/routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children route
source <xs:element name="routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptStoppointList/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:CptStoppointList/zones
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children zone
source <xs:element name="zones" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="zone" type="PIServiceZoneIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptStoppointList/zones/zone
diagram
type tcip:PIServiceZoneIden
properties
isRef 0
content simple
source <xs:element name="zone" type="PIServiceZoneIden"/>

element tcip:CptStoppointList/include-location
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-location" type="CPT-Boolean"/>

element tcip:CptStoppointList/include-service
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-service" type="CPT-Boolean"/>

element tcip:CptStoppointList/include-facility
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-facility" type="CPT-Boolean"/>

element tcip:CptStoppointList/include-agency
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-agency" type="CPT-Boolean"/>

element tcip:CptStoppointList/include-construction
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-construction" type="CPT-Boolean"/>

element tcip:CptStoppointList/include-signal
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-signal" type="CPT-Boolean"/>

element tcip:CptStoppointList/include-incidents
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-incidents" type="CPT-Boolean"/>

element tcip:CptStoppointList/include-history
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-history" type="CPT-Boolean"/>

element tcip:CptStoppointList/update-thru
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="update-thru" type="CPT-DateTime"/>

element tcip:CptStoppointList/stoppoints
diagram
properties
isRef 0
content complex
children stoppoint
source <xs:element name="stoppoints">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stoppoint" type="CPTStoppoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

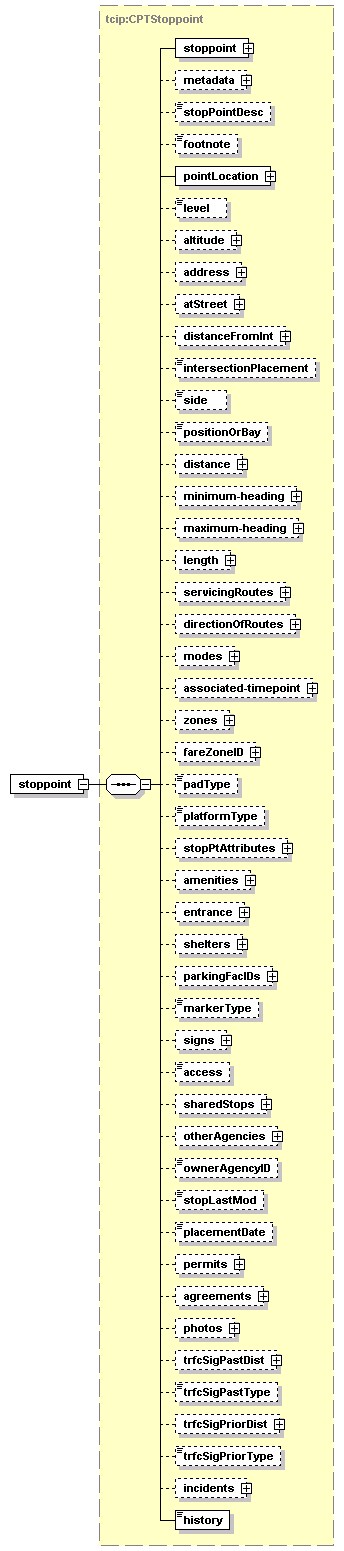

element tcip:CptStoppointList/stoppoints/stoppoint
diagram
type tcip:CPTStoppoint
properties
isRef 0
content complex
children stoppoint metadata stopPointDesc footnote pointLocation level altitude address atStreet distanceFromInt intersectionPlacement side positionOrBay distance minimum-heading maximum-heading length servicingRoutes directionOfRoutes modes associated-timepoint zones fareZoneID padType platformType stopPtAttributes amenities entrance shelters parkingFacIDs markerType signs access sharedStops otherAgencies ownerAgencyID stopLastMod placementDate permits agreements photos trfcSigPastDist trfcSigPastType trfcSigPriorDist trfcSigPriorType incidents history
source <xs:element name="stoppoint" type="CPTStoppoint"/>

element tcip:CptStoppointList/deleted-stoppoints
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children deleted-stoppoint
source <xs:element name="deleted-stoppoints" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="deleted-stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

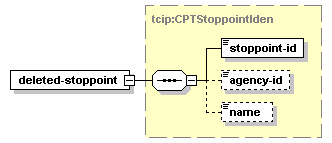

element tcip:CptStoppointList/deleted-stoppoints/deleted-stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="deleted-stoppoint" type="CPTStoppointIden"/>
