complexType tcip:SCHRouteIden

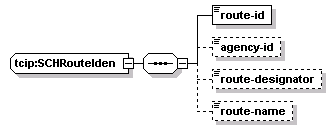

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	route-id agency-id route-designator route-name
used by	elements  tcip:SCHValidationError/affected-routes/affected-route tcip:PIServiceBulletin/affectedRoutes/affectedRoute tcip:CPTFileApplicability/applicable-routes/applicable-route tcip:PIAccessibility/applicability/applicable-route tcip:PICustSubscription/applicable-route tcip:CCPollResponseContents/currentRoute tcip:TSPStatus/currentRoute tcip:FCAllowedTransferRecord/from-route tcip:SchPushMasterScheduleVersion/included-routes/included-route tcip:PIAnnouncement/related-routes/related-route tcip:CCWheelchairLogEntry/requester-route tcip:CcConnProtAck/requester-route tcip:CcConnProtAppr/requester-route tcip:CCConnProtLogEntry/requester-route tcip:CcWheelchairReq/requester-route tcip:CcWheelchairPickup/requester-route tcip:CcWheelchairDeny/requester-route tcip:CcWheelchairAppr/requester-route tcip:CcWheelchairAck/requester-route tcip:CcConnProtWait/requester-route tcip:CcConnProtReq/requester-route tcip:CcConnProtDeny/requester-route tcip:SchTripDetailList/routes/route tcip:SchRunningTimeListSub/routes/route tcip:SchRunningTimeList/routes/route tcip:SchRouteScheduleSub/route tcip:SchActualRunningTimesSub/routes/route tcip:SchTripDetailListSub/routes/route tcip:SchRouteSchedule/route tcip:CCDetourRecord/route tcip:CCLogOnOperator/route tcip:SchPushRouteSchedule/route tcip:SchActualRunningTimes/routes/route tcip:SchMasterScheduleVersionSub/criteria/routes/route tcip:SchMasterScheduleVersion/criteria/routes/route tcip:SCHTripInfo/route tcip:SCHTripDetailInfo/route tcip:SCHServiceAtStop/route tcip:SCHRouteVersion/route tcip:SCHPTVRouteScheduleEntry/route tcip:PIXMLTimetable/route tcip:PIServiceStatusRequest/route tcip:PIService/route tcip:PISchedAdherenceRange/route tcip:PISchedAdherenceOffSched/route tcip:PISchedAdherenceCountdown/route tcip:PIRouteInfo/route tcip:PIRecurringTripSegment/route tcip:PINearestStopRequest/route tcip:PINearestStop/route tcip:OBStoppointRecord/route tcip:FCPassengerCountRecord/route tcip:PiAmenitiesList/routes/route tcip:PiAgencyFilesSub/routes/route tcip:PiAgencyFiles/routes/route tcip:PiAccessibilityListSub/criteria/routes/route tcip:PiAccessibilityList/criteria/routes/route tcip:ImIncidentListSub/routes/route tcip:ImIncidentList/routes/route tcip:ImIncidentHistorySub/routes/route tcip:ImIncidentHistory/routes/route tcip:FcPassengerDataSub/routes/route tcip:FcPassengerData/routes/route tcip:CptTransferClusterListSub/routes/route tcip:CptTransferClusterList/routes/route tcip:CptStoppointListSub/routes/route tcip:CptStoppointList/routes/route tcip:CptShelterListSub/routes/route tcip:CptShelterList/routes/route tcip:CcPTVTrips/route tcip:CcAdherencePerformanceSub/routes/route tcip:CcAdherencePerformance/routes/route tcip:PiTextTimetableSub/routes/route tcip:PiTextTimetable/routes/route tcip:PiServiceBulletinsListSub/routes/route tcip:PiServiceBulletinsList/routes/route tcip:PiRouteListSub/routes/route tcip:PiRouteList/routes/route tcip:PiPushTextTimetable/routes/route tcip:PiAmenitiesListSub/routes/route tcip:PiAnnouncementsList/routes/route tcip:PiAnnouncementsListSub/routes/route tcip:PiMailingList/routes/route tcip:PiMailingListSub/routes/route tcip:SchRouteScheduleFile/routes-to-delete/routes-to-delete-item tcip:CcFleetMechanicalData/selected-routes/selected-route tcip:CcFleetMechanicalDataSub/selected-routes/selected-route tcip:CcFleetPassengerData/selected-routes/selected-route tcip:CcFleetPassengerDataSub/selected-routes/selected-route tcip:CPTStoppoint/servicingRoutes/servicingRoute tcip:SchRosterListSub/specific-Routes/specific-Route tcip:SchVehicleAssignmentList/specific-routes/specific-route tcip:CcTravelerRequestLog/specific-routes/specific-route tcip:CcTravelerRequestLogSub/specific-routes/specific-route tcip:SchVehicleAssignmentListSub/specific-routes/specific-route tcip:SchRosterList/specific-Routes/specific-Route tcip:SchOperatorAssignmentList/specific-routes/specific-route tcip:SchOperatorAssignmentListSub/specific-routes/specific-route tcip:SchPullInList/specific-routes/specific-route tcip:SchPullInListSub/specific-routes/specific-route tcip:SchPullOutList/specific-routes/specific-route tcip:SchPullOutListSub/specific-routes/specific-route tcip:CcConnProtWait/to-route tcip:CcConnProtReq/to-route tcip:CcConnProtDeny/to-route tcip:CcConnProtAppr/to-route tcip:CcConnProtAck/to-route tcip:FCAllowedTransferRecord/to-routes/to-route
source	<xs:complexType name="SCHRouteIden">   <xs:sequence>     <xs:element name="route-id" type="SCH-RouteID"/>     <xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>     <xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>     <xs:element name="route-name" type="SCH-RouteName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHRouteIden/route-id

diagram
type	tcip:SCH-RouteID
properties	isRef  0 content  simple
source	<xs:element name="route-id" type="SCH-RouteID"/>

element tcip:SCHRouteIden/agency-id

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>

element tcip:SCHRouteIden/route-designator

diagram
type	tcip:SCH-RouteDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>

element tcip:SCHRouteIden/route-name

diagram
type	tcip:SCH-RouteName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="route-name" type="SCH-RouteName" minOccurs="0"/>
