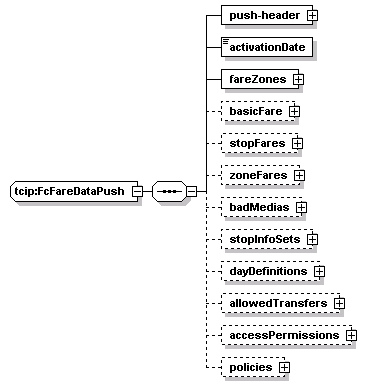

complexType tcip:FcFareDataPush
diagram
namespace http://www.TCIP-Adopted-03-00-01
children push-header activationDate fareZones basicFare stopFares zoneFares badMedias stopInfoSets dayDefinitions allowedTransfers accessPermissions policies
used by
element tcip:fcFareDataPush
source <xs:complexType name="FcFareDataPush">
  <xs:sequence>
    <xs:element name="push-header" type="CPTPushHeader"/>
    <xs:element name="activationDate" type="CPT-Date"/>
    <xs:element name="fareZones">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="fareZone" type="FCFareZoneDefinition"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="basicFare" type="FCFareDefinitionRecord" minOccurs="0"/>
    <xs:element name="stopFares" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="15000">
          <xs:element name="stopFare" type="FCFareDefinitionRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="zoneFares" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="zoneFare" type="FCFareDefinitionRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="badMedias" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100000">
          <xs:element name="badMedia" type="FCFareMediaPair"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="stopInfoSets" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stopInfoSet" type="CPTStoppoint"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="dayDefinitions" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="dayDefinition" type="FCDayDefinition"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="allowedTransfers" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="allowedTransfer" type="FCAllowedTransferRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="accessPermissions" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="accessPermission" type="FCFareboxAccessPermission"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="policies" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="policy" type="FCFarePolicyRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

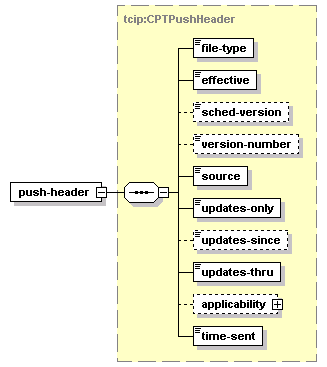

element tcip:FcFareDataPush/push-header
diagram
type tcip:CPTPushHeader
properties
isRef 0
content complex
children file-type effective sched-version version-number source updates-only updates-since updates-thru applicability time-sent
source <xs:element name="push-header" type="CPTPushHeader"/>

element tcip:FcFareDataPush/activationDate
diagram
type tcip:CPT-Date
properties
isRef 0
content simple
source <xs:element name="activationDate" type="CPT-Date"/>

element tcip:FcFareDataPush/fareZones
diagram
properties
isRef 0
content complex
children fareZone
source <xs:element name="fareZones">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="fareZone" type="FCFareZoneDefinition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

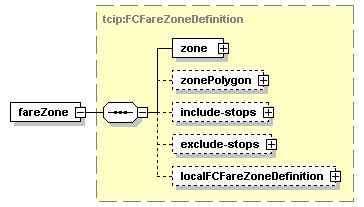

element tcip:FcFareDataPush/fareZones/fareZone
diagram
type tcip:FCFareZoneDefinition
properties
isRef 0
content complex
children zone zonePolygon include-stops exclude-stops localFCFareZoneDefinition
source <xs:element name="fareZone" type="FCFareZoneDefinition"/>

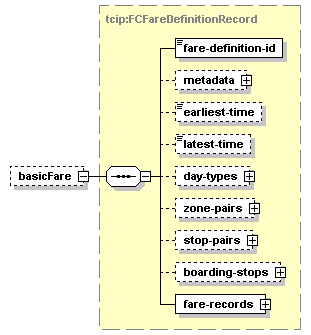

element tcip:FcFareDataPush/basicFare
diagram
type tcip:FCFareDefinitionRecord
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children fare-definition-id metadata earliest-time latest-time day-types zone-pairs stop-pairs boarding-stops fare-records
source <xs:element name="basicFare" type="FCFareDefinitionRecord" minOccurs="0"/>

element tcip:FcFareDataPush/stopFares
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stopFare
source <xs:element name="stopFares" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="15000">
      <xs:element name="stopFare" type="FCFareDefinitionRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FcFareDataPush/stopFares/stopFare
diagram
type tcip:FCFareDefinitionRecord
properties
isRef 0
content complex
children fare-definition-id metadata earliest-time latest-time day-types zone-pairs stop-pairs boarding-stops fare-records
source <xs:element name="stopFare" type="FCFareDefinitionRecord"/>

element tcip:FcFareDataPush/zoneFares
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children zoneFare
source <xs:element name="zoneFares" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="zoneFare" type="FCFareDefinitionRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FcFareDataPush/zoneFares/zoneFare
diagram
type tcip:FCFareDefinitionRecord
properties
isRef 0
content complex
children fare-definition-id metadata earliest-time latest-time day-types zone-pairs stop-pairs boarding-stops fare-records
source <xs:element name="zoneFare" type="FCFareDefinitionRecord"/>

element tcip:FcFareDataPush/badMedias
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children badMedia
source <xs:element name="badMedias" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100000">
      <xs:element name="badMedia" type="FCFareMediaPair"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FcFareDataPush/badMedias/badMedia
diagram
type tcip:FCFareMediaPair
properties
isRef 0
content complex
children first-number last-number metadata
source <xs:element name="badMedia" type="FCFareMediaPair"/>

element tcip:FcFareDataPush/stopInfoSets
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stopInfoSet
source <xs:element name="stopInfoSets" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stopInfoSet" type="CPTStoppoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

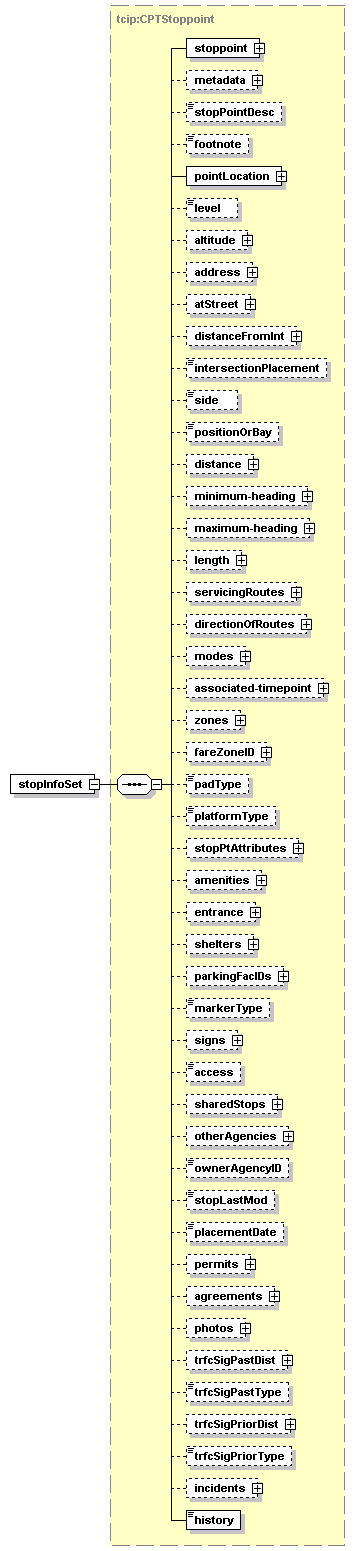

element tcip:FcFareDataPush/stopInfoSets/stopInfoSet
diagram
type tcip:CPTStoppoint
properties
isRef 0
content complex
children stoppoint metadata stopPointDesc footnote pointLocation level altitude address atStreet distanceFromInt intersectionPlacement side positionOrBay distance minimum-heading maximum-heading length servicingRoutes directionOfRoutes modes associated-timepoint zones fareZoneID padType platformType stopPtAttributes amenities entrance shelters parkingFacIDs markerType signs access sharedStops otherAgencies ownerAgencyID stopLastMod placementDate permits agreements photos trfcSigPastDist trfcSigPastType trfcSigPriorDist trfcSigPriorType incidents history
source <xs:element name="stopInfoSet" type="CPTStoppoint"/>

element tcip:FcFareDataPush/dayDefinitions
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children dayDefinition
source <xs:element name="dayDefinitions" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="dayDefinition" type="FCDayDefinition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FcFareDataPush/dayDefinitions/dayDefinition
diagram
type tcip:FCDayDefinition
properties
isRef 0
content complex
children begin-date end-date metadata day-type
source <xs:element name="dayDefinition" type="FCDayDefinition"/>

element tcip:FcFareDataPush/allowedTransfers
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children allowedTransfer
source <xs:element name="allowedTransfers" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="allowedTransfer" type="FCAllowedTransferRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

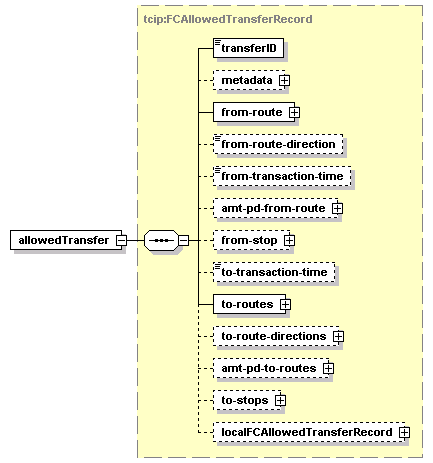

element tcip:FcFareDataPush/allowedTransfers/allowedTransfer
diagram
type tcip:FCAllowedTransferRecord
properties
isRef 0
content complex
children transferID metadata from-route from-route-direction from-transaction-time amt-pd-from-route from-stop to-transaction-time to-routes to-route-directions amt-pd-to-routes to-stops localFCAllowedTransferRecord
source <xs:element name="allowedTransfer" type="FCAllowedTransferRecord"/>

element tcip:FcFareDataPush/accessPermissions
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children accessPermission
source <xs:element name="accessPermissions" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="accessPermission" type="FCFareboxAccessPermission"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

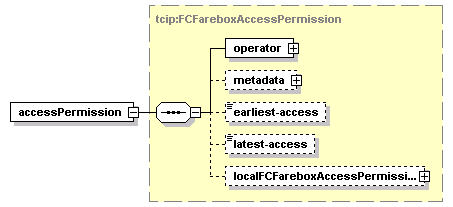

element tcip:FcFareDataPush/accessPermissions/accessPermission
diagram
type tcip:FCFareboxAccessPermission
properties
isRef 0
content complex
children operator metadata earliest-access latest-access localFCFareboxAccessPermission
source <xs:element name="accessPermission" type="FCFareboxAccessPermission"/>

element tcip:FcFareDataPush/policies
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children policy
source <xs:element name="policies" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="policy" type="FCFarePolicyRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

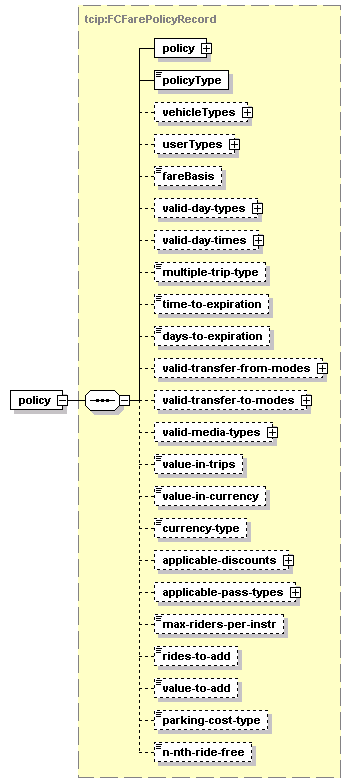

element tcip:FcFareDataPush/policies/policy
diagram
type tcip:FCFarePolicyRecord
properties
isRef 0
content complex
children policy policyType vehicleTypes userTypes fareBasis valid-day-types valid-day-times multiple-trip-type time-to-expiration days-to-expiration valid-transfer-from-modes valid-transfer-to-modes valid-media-types value-in-trips value-in-currency currency-type applicable-discounts applicable-pass-types max-riders-per-instr rides-to-add value-to-add parking-cost-type n-nth-ride-free
source <xs:element name="policy" type="FCFarePolicyRecord"/>
