complexType tcip:FCFareboxAccessPermission

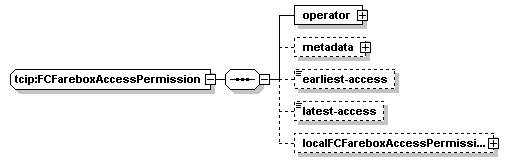

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	operator metadata earliest-access latest-access localFCFareboxAccessPermission
used by	elements  tcip:FcFareDataPush/accessPermissions/accessPermission tcip:FcFareLoadData/accessPermissionS/accessPermissionS-item
source	<xs:complexType name="FCFareboxAccessPermission">   <xs:sequence>     <xs:element name="operator" type="CPTOperatorIden"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="earliest-access" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="latest-access" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="localFCFareboxAccessPermission" type="local:FCFareboxAccessPermission" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:FCFareboxAccessPermission/operator

diagram
type	tcip:CPTOperatorIden
properties	isRef  0 content  complex
children	operator-id agency-id designator employee-id
source	<xs:element name="operator" type="CPTOperatorIden"/>

element tcip:FCFareboxAccessPermission/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:FCFareboxAccessPermission/earliest-access

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="earliest-access" type="CPT-DateTime" minOccurs="0"/>

element tcip:FCFareboxAccessPermission/latest-access

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="latest-access" type="CPT-DateTime" minOccurs="0"/>

element tcip:FCFareboxAccessPermission/localFCFareboxAccessPermission

diagram
type	FCFareboxAccessPermission
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localFCFareboxAccessPermission" type="local:FCFareboxAccessPermission" minOccurs="0"/>
