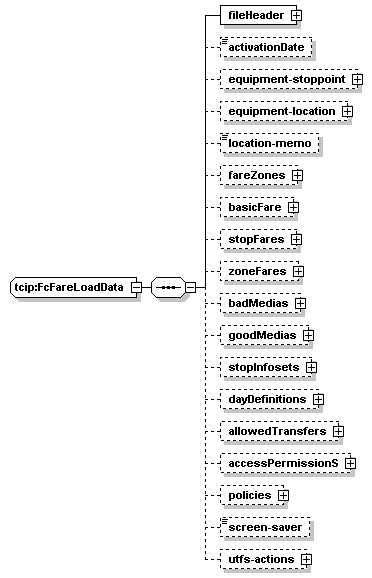

complexType tcip:FcFareLoadData

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	fileHeader activationDate equipment-stoppoint equipment-location location-memo fareZones basicFare stopFares zoneFares badMedias goodMedias stopInfosets dayDefinitions allowedTransfers accessPermissionS policies screen-saver utfs-actions
used by	element  tcip:fcFareLoadData
source	<xs:complexType name="FcFareLoadData">   <xs:sequence>     <xs:element name="fileHeader" type="CPTLoadFileHeader"/>     <xs:element name="activationDate" type="CPT-Date" minOccurs="0"/>     <xs:element name="equipment-stoppoint" type="CPTStoppointIden" minOccurs="0"/>     <xs:element name="equipment-location" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="location-memo" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="fareZones" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="200">           <xs:element name="fareZone" type="FCFareZoneDefinition"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="basicFare" type="FCFareDefinitionRecord" minOccurs="0"/>     <xs:element name="stopFares" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="15000">           <xs:element name="stopFare" type="FCFareDefinitionRecord"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="zoneFares" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:element name="zoneFare" type="FCFareDefinitionRecord"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="badMedias" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="100000">           <xs:element name="badMedia" type="FCFareMediaPair"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="goodMedias" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="100000">           <xs:element name="goodMedia" type="FCFareMediaPair"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="stopInfosets" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="25000">           <xs:element name="stopInfoset" type="CPTStoppoint"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="dayDefinitions" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="dayDefinition" type="FCDayDefinition"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="allowedTransfers" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="10000">           <xs:element name="allowedTransfer" type="FCAllowedTransferRecord"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="accessPermissionS" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="accessPermissionS-item" type="FCFareboxAccessPermission"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="policies" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="10000">           <xs:element name="policy" type="FCFarePolicyRecord"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="screen-saver" type="CC-ExecutableSoftware" minOccurs="0"/>     <xs:element name="utfs-actions" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:element name="utfs-action" type="FCActionListEntryUTFS"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

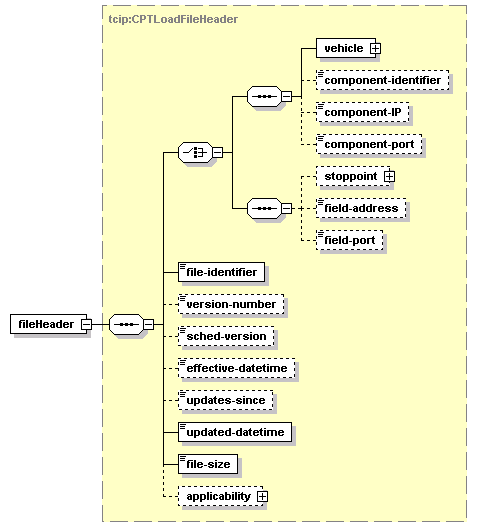

element tcip:FcFareLoadData/fileHeader

diagram
type	tcip:CPTLoadFileHeader
properties	isRef  0 content  complex
children	vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source	<xs:element name="fileHeader" type="CPTLoadFileHeader"/>

element tcip:FcFareLoadData/activationDate

diagram
type	tcip:CPT-Date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="activationDate" type="CPT-Date" minOccurs="0"/>

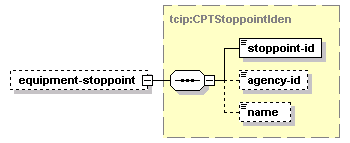

element tcip:FcFareLoadData/equipment-stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="equipment-stoppoint" type="CPTStoppointIden" minOccurs="0"/>

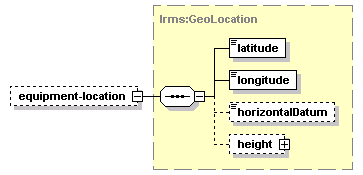

element tcip:FcFareLoadData/equipment-location

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="equipment-location" type="lrms:GeoLocation" minOccurs="0"/>

element tcip:FcFareLoadData/location-memo

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="location-memo" type="CPT-Footnote" minOccurs="0"/>

element tcip:FcFareLoadData/fareZones

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	fareZone
source	<xs:element name="fareZones" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="200">       <xs:element name="fareZone" type="FCFareZoneDefinition"/>     </xs:sequence>   </xs:complexType> </xs:element>

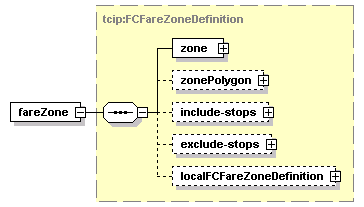

element tcip:FcFareLoadData/fareZones/fareZone

diagram
type	tcip:FCFareZoneDefinition
properties	isRef  0 content  complex
children	zone zonePolygon include-stops exclude-stops localFCFareZoneDefinition
source	<xs:element name="fareZone" type="FCFareZoneDefinition"/>

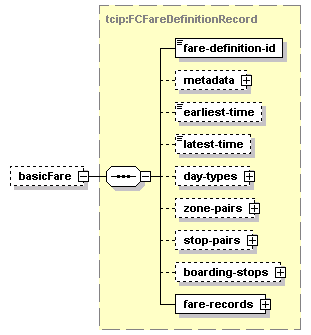

element tcip:FcFareLoadData/basicFare

diagram
type	tcip:FCFareDefinitionRecord
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	fare-definition-id metadata earliest-time latest-time day-types zone-pairs stop-pairs boarding-stops fare-records
source	<xs:element name="basicFare" type="FCFareDefinitionRecord" minOccurs="0"/>

element tcip:FcFareLoadData/stopFares

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stopFare
source	<xs:element name="stopFares" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="15000">       <xs:element name="stopFare" type="FCFareDefinitionRecord"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FcFareLoadData/stopFares/stopFare

diagram
type	tcip:FCFareDefinitionRecord
properties	isRef  0 content  complex
children	fare-definition-id metadata earliest-time latest-time day-types zone-pairs stop-pairs boarding-stops fare-records
source	<xs:element name="stopFare" type="FCFareDefinitionRecord"/>

element tcip:FcFareLoadData/zoneFares

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	zoneFare
source	<xs:element name="zoneFares" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:element name="zoneFare" type="FCFareDefinitionRecord"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FcFareLoadData/zoneFares/zoneFare

diagram
type	tcip:FCFareDefinitionRecord
properties	isRef  0 content  complex
children	fare-definition-id metadata earliest-time latest-time day-types zone-pairs stop-pairs boarding-stops fare-records
source	<xs:element name="zoneFare" type="FCFareDefinitionRecord"/>

element tcip:FcFareLoadData/badMedias

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	badMedia
source	<xs:element name="badMedias" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="100000">       <xs:element name="badMedia" type="FCFareMediaPair"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FcFareLoadData/badMedias/badMedia

diagram
type	tcip:FCFareMediaPair
properties	isRef  0 content  complex
children	first-number last-number metadata
source	<xs:element name="badMedia" type="FCFareMediaPair"/>

element tcip:FcFareLoadData/goodMedias

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	goodMedia
source	<xs:element name="goodMedias" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="100000">       <xs:element name="goodMedia" type="FCFareMediaPair"/>     </xs:sequence>   </xs:complexType> </xs:element>

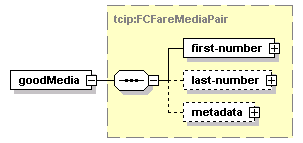

element tcip:FcFareLoadData/goodMedias/goodMedia

diagram
type	tcip:FCFareMediaPair
properties	isRef  0 content  complex
children	first-number last-number metadata
source	<xs:element name="goodMedia" type="FCFareMediaPair"/>

element tcip:FcFareLoadData/stopInfosets

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stopInfoset
source	<xs:element name="stopInfosets" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="25000">       <xs:element name="stopInfoset" type="CPTStoppoint"/>     </xs:sequence>   </xs:complexType> </xs:element>

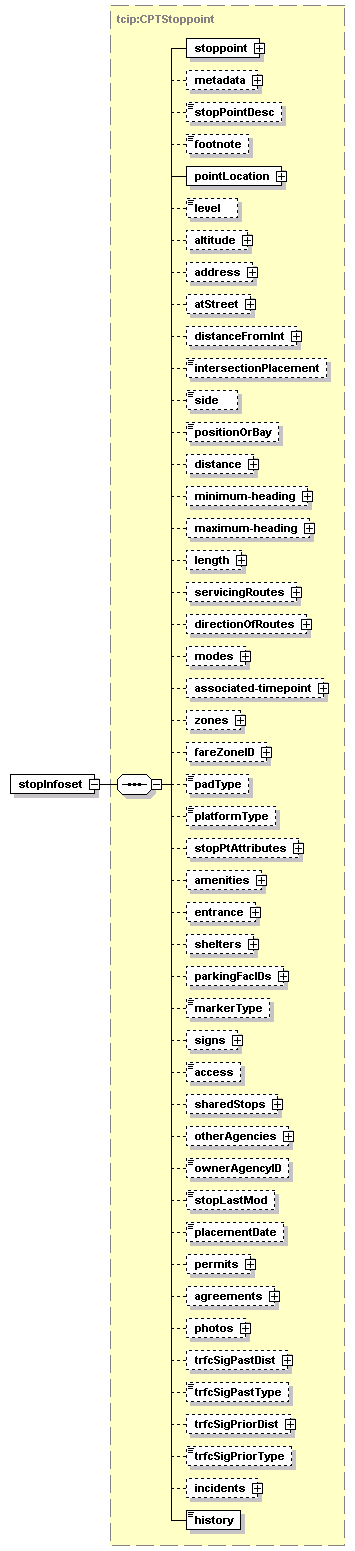

element tcip:FcFareLoadData/stopInfosets/stopInfoset

diagram
type	tcip:CPTStoppoint
properties	isRef  0 content  complex
children	stoppoint metadata stopPointDesc footnote pointLocation level altitude address atStreet distanceFromInt intersectionPlacement side positionOrBay distance minimum-heading maximum-heading length servicingRoutes directionOfRoutes modes associated-timepoint zones fareZoneID padType platformType stopPtAttributes amenities entrance shelters parkingFacIDs markerType signs access sharedStops otherAgencies ownerAgencyID stopLastMod placementDate permits agreements photos trfcSigPastDist trfcSigPastType trfcSigPriorDist trfcSigPriorType incidents history
source	<xs:element name="stopInfoset" type="CPTStoppoint"/>

element tcip:FcFareLoadData/dayDefinitions

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	dayDefinition
source	<xs:element name="dayDefinitions" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="dayDefinition" type="FCDayDefinition"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FcFareLoadData/dayDefinitions/dayDefinition

diagram
type	tcip:FCDayDefinition
properties	isRef  0 content  complex
children	begin-date end-date metadata day-type
source	<xs:element name="dayDefinition" type="FCDayDefinition"/>

element tcip:FcFareLoadData/allowedTransfers

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	allowedTransfer
source	<xs:element name="allowedTransfers" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="10000">       <xs:element name="allowedTransfer" type="FCAllowedTransferRecord"/>     </xs:sequence>   </xs:complexType> </xs:element>

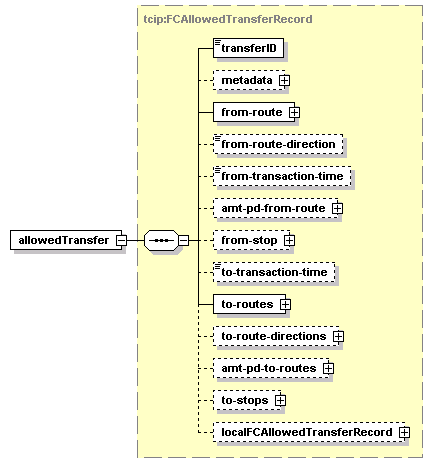

element tcip:FcFareLoadData/allowedTransfers/allowedTransfer

diagram
type	tcip:FCAllowedTransferRecord
properties	isRef  0 content  complex
children	transferID metadata from-route from-route-direction from-transaction-time amt-pd-from-route from-stop to-transaction-time to-routes to-route-directions amt-pd-to-routes to-stops localFCAllowedTransferRecord
source	<xs:element name="allowedTransfer" type="FCAllowedTransferRecord"/>

element tcip:FcFareLoadData/accessPermissionS

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	accessPermissionS-item
source	<xs:element name="accessPermissionS" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="accessPermissionS-item" type="FCFareboxAccessPermission"/>     </xs:sequence>   </xs:complexType> </xs:element>

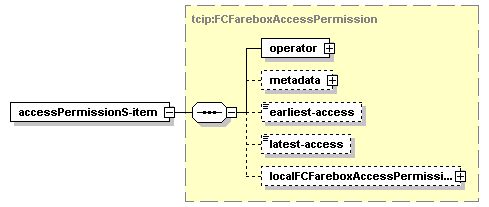

element tcip:FcFareLoadData/accessPermissionS/accessPermissionS-item

diagram
type	tcip:FCFareboxAccessPermission
properties	isRef  0 content  complex
children	operator metadata earliest-access latest-access localFCFareboxAccessPermission
source	<xs:element name="accessPermissionS-item" type="FCFareboxAccessPermission"/>

element tcip:FcFareLoadData/policies

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	policy
source	<xs:element name="policies" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="10000">       <xs:element name="policy" type="FCFarePolicyRecord"/>     </xs:sequence>   </xs:complexType> </xs:element>

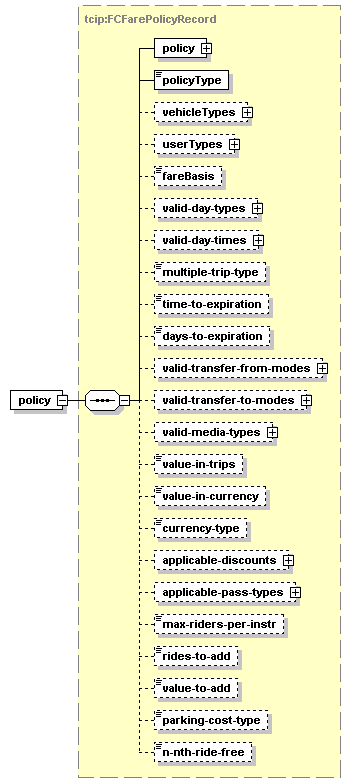

element tcip:FcFareLoadData/policies/policy

diagram
type	tcip:FCFarePolicyRecord
properties	isRef  0 content  complex
children	policy policyType vehicleTypes userTypes fareBasis valid-day-types valid-day-times multiple-trip-type time-to-expiration days-to-expiration valid-transfer-from-modes valid-transfer-to-modes valid-media-types value-in-trips value-in-currency currency-type applicable-discounts applicable-pass-types max-riders-per-instr rides-to-add value-to-add parking-cost-type n-nth-ride-free
source	<xs:element name="policy" type="FCFarePolicyRecord"/>

element tcip:FcFareLoadData/screen-saver

diagram
type	tcip:CC-ExecutableSoftware
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2000000
source	<xs:element name="screen-saver" type="CC-ExecutableSoftware" minOccurs="0"/>

element tcip:FcFareLoadData/utfs-actions

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	utfs-action
source	<xs:element name="utfs-actions" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:element name="utfs-action" type="FCActionListEntryUTFS"/>     </xs:sequence>   </xs:complexType> </xs:element>

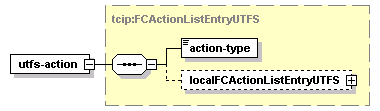

element tcip:FcFareLoadData/utfs-actions/utfs-action

diagram
type	tcip:FCActionListEntryUTFS
properties	isRef  0 content  complex
children	action-type localFCActionListEntryUTFS
source	<xs:element name="utfs-action" type="FCActionListEntryUTFS"/>
