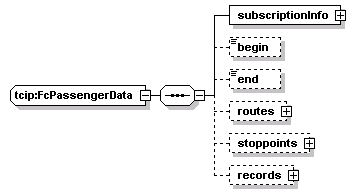

complexType tcip:FcPassengerData
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo begin end routes stoppoints records
used by
element tcip:fcPassengerData
source <xs:complexType name="FcPassengerData">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="begin" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="end" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="stoppoints" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stoppoint" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="records" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100000">
          <xs:element name="record" type="FCPassengerCountRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:FcPassengerData/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:FcPassengerData/begin
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="begin" type="CPT-DateTime" minOccurs="0"/>

element tcip:FcPassengerData/end
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="end" type="CPT-DateTime" minOccurs="0"/>

element tcip:FcPassengerData/routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children route
source <xs:element name="routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FcPassengerData/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:FcPassengerData/stoppoints
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint
source <xs:element name="stoppoints" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FcPassengerData/stoppoints/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:FcPassengerData/records
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children record
source <xs:element name="records" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100000">
      <xs:element name="record" type="FCPassengerCountRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

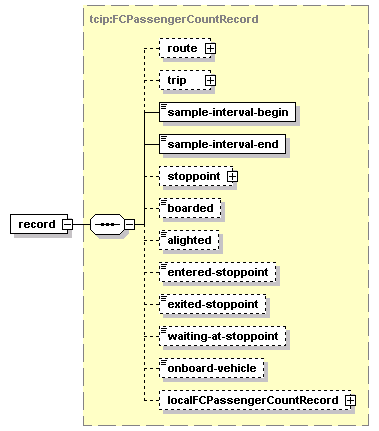

element tcip:FcPassengerData/records/record
diagram
type tcip:FCPassengerCountRecord
properties
isRef 0
content complex
children route trip sample-interval-begin sample-interval-end stoppoint boarded alighted entered-stoppoint exited-stoppoint waiting-at-stoppoint onboard-vehicle localFCPassengerCountRecord
source <xs:element name="record" type="FCPassengerCountRecord"/>
