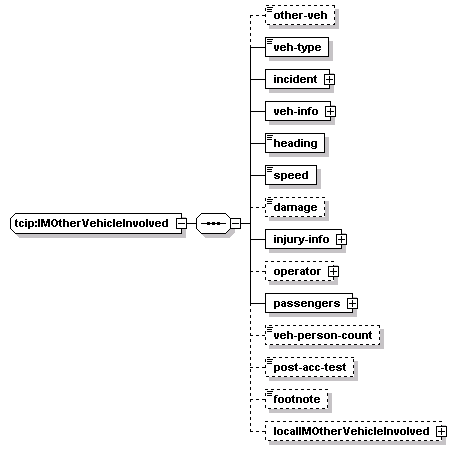

complexType tcip:IMOtherVehicleInvolved

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	other-veh veh-type incident veh-info heading speed damage injury-info operator passengers veh-person-count post-acc-test footnote localIMOtherVehicleInvolved
used by	elements  tcip:IMInjury/locationAtIncident/other-veh tcip:ImIncidentUpdate/otherVehicles/otherVehicle tcip:ImInitialIncidentReport/otherVehicles/otherVehicle
source	<xs:complexType name="IMOtherVehicleInvolved">   <xs:sequence>     <xs:element name="other-veh" type="IM-OtherVehicleInvolvedID" minOccurs="0"/>     <xs:element name="veh-type" type="IM-VehicleInvolvedType"/>     <xs:element name="incident" type="IMIncidentIden"/>     <xs:element name="veh-info" type="IMVehicleIDInformation"/>     <xs:element name="heading" type="lrms:Direction"/>     <!-- vehicle heading -->     <xs:element name="speed" type="OB-J1587-VelocityVectorSpeed"/>     <xs:element name="damage" type="IM-VehicleDamage" minOccurs="0"/>     <xs:element name="injury-info" type="IMInjuryInfo"/>     <xs:element name="operator" type="IMPerson" minOccurs="0"/>     <xs:element name="passengers">       <xs:complexType>         <xs:sequence maxOccurs="500">           <xs:element name="passenger" type="IMPerson"/>           <!-- passengers in the vehicle -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="veh-person-count" type="IM-VehicleOccupantCount" minOccurs="0"/>     <xs:element name="post-acc-test" type="IM-PostAccidentTest" minOccurs="0"/>     <xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="localIMOtherVehicleInvolved" type="local:IMOtherVehicleInvolved" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:IMOtherVehicleInvolved/other-veh

diagram
type	tcip:IM-OtherVehicleInvolvedID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="other-veh" type="IM-OtherVehicleInvolvedID" minOccurs="0"/>

element tcip:IMOtherVehicleInvolved/veh-type

diagram
type	tcip:IM-VehicleInvolvedType
properties	isRef  0 content  simple
source	<xs:element name="veh-type" type="IM-VehicleInvolvedType"/>

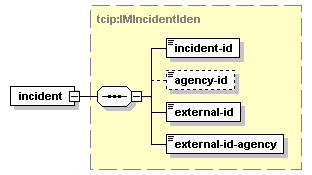

element tcip:IMOtherVehicleInvolved/incident

diagram
type	tcip:IMIncidentIden
properties	isRef  0 content  complex
children	incident-id agency-id external-id external-id-agency
source	<xs:element name="incident" type="IMIncidentIden"/>

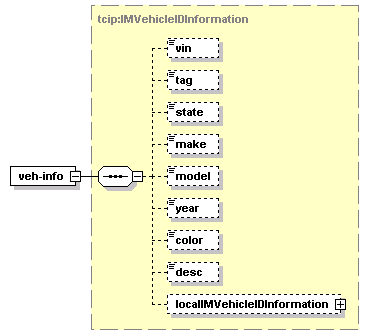

element tcip:IMOtherVehicleInvolved/veh-info

diagram
type	tcip:IMVehicleIDInformation
properties	isRef  0 content  complex
children	vin tag state make model year color desc localIMVehicleIDInformation
source	<xs:element name="veh-info" type="IMVehicleIDInformation"/>

element tcip:IMOtherVehicleInvolved/heading

diagram
type	lrms:Direction
properties	isRef  0 content  simple
source	<xs:element name="heading" type="lrms:Direction"/>

element tcip:IMOtherVehicleInvolved/speed

diagram
type	tcip:OB-J1587-VelocityVectorSpeed
properties	isRef  0 content  simple
source	<xs:element name="speed" type="OB-J1587-VelocityVectorSpeed"/>

element tcip:IMOtherVehicleInvolved/damage

diagram
type	tcip:IM-VehicleDamage
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="damage" type="IM-VehicleDamage" minOccurs="0"/>

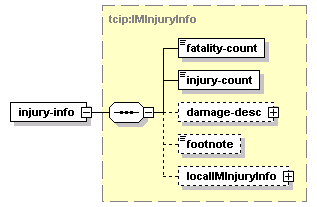

element tcip:IMOtherVehicleInvolved/injury-info

diagram
type	tcip:IMInjuryInfo
properties	isRef  0 content  complex
children	fatality-count injury-count damage-desc footnote localIMInjuryInfo
source	<xs:element name="injury-info" type="IMInjuryInfo"/>

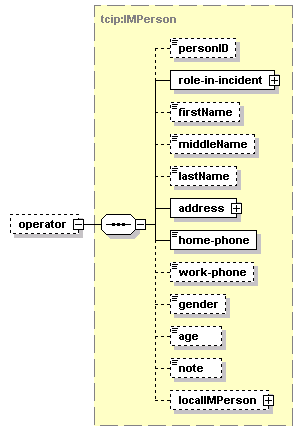

element tcip:IMOtherVehicleInvolved/operator

diagram
type	tcip:IMPerson
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	personID role-in-incident firstName middleName lastName address home-phone work-phone gender age note localIMPerson
source	<xs:element name="operator" type="IMPerson" minOccurs="0"/>

element tcip:IMOtherVehicleInvolved/passengers

diagram
properties	isRef  0 content  complex
children	passenger
source	<xs:element name="passengers">   <xs:complexType>     <xs:sequence maxOccurs="500">       <xs:element name="passenger" type="IMPerson"/>       <!-- passengers in the vehicle -->     </xs:sequence>   </xs:complexType> </xs:element>

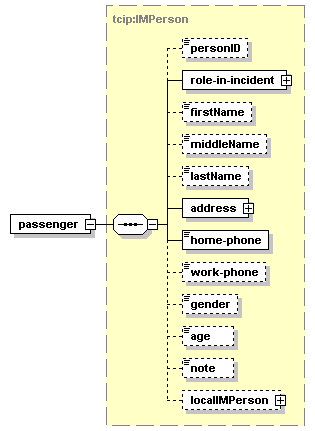

element tcip:IMOtherVehicleInvolved/passengers/passenger

diagram
type	tcip:IMPerson
properties	isRef  0 content  complex
children	personID role-in-incident firstName middleName lastName address home-phone work-phone gender age note localIMPerson
source	<xs:element name="passenger" type="IMPerson"/>

element tcip:IMOtherVehicleInvolved/veh-person-count

diagram
type	tcip:IM-VehicleOccupantCount
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="veh-person-count" type="IM-VehicleOccupantCount" minOccurs="0"/>

element tcip:IMOtherVehicleInvolved/post-acc-test

diagram
type	tcip:IM-PostAccidentTest
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="post-acc-test" type="IM-PostAccidentTest" minOccurs="0"/>

element tcip:IMOtherVehicleInvolved/footnote

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>

element tcip:IMOtherVehicleInvolved/localIMOtherVehicleInvolved

diagram
type	IMOtherVehicleInvolved
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localIMOtherVehicleInvolved" type="local:IMOtherVehicleInvolved" minOccurs="0"/>
