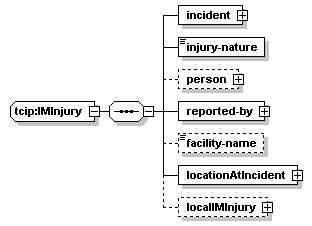

complexType tcip:IMInjury
diagram
namespace http://www.TCIP-Adopted-03-00-01
children incident injury-nature person reported-by facility-name locationAtIncident localIMInjury
used by
element tcip:IMIncident/injured-persons/injured-person
source <xs:complexType name="IMInjury">
  <xs:sequence>
    <xs:element name="incident" type="IMIncidentIden"/>
    <xs:element name="injury-nature" type="IM-InjuryNature"/>
    <xs:element name="person" type="IMPerson" minOccurs="0"/>
    <!-- mandatory,  if available -->
    <xs:element name="reported-by" type="IMReportedBy"/>
    <xs:element name="facility-name" type="IM-CareFacilityName" minOccurs="0"/>
    <!-- facility caring for injured person -->
    <xs:element name="locationAtIncident">
      <xs:complexType>
        <xs:choice>
          <xs:element name="ptv" type="IMPTVehicleInvolved"/>
          <!-- person was on-board a PTV -->
          <xs:element name="other-veh" type="IMOtherVehicleInvolved"/>
          <!-- person in another veh -->
          <xs:element name="transit-facility" type="CPTTransitFacilityIden"/>
          <!-- person at transit fac -->
          <xs:element name="geo-loc" type="lrms:GeoLocation"/>
          <!-- geographic location -->
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="localIMInjury" type="local:IMInjury" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

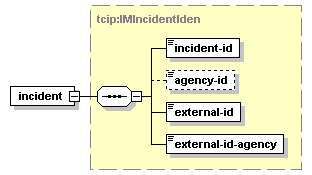

element tcip:IMInjury/incident
diagram
type tcip:IMIncidentIden
properties
isRef 0
content complex
children incident-id agency-id external-id external-id-agency
source <xs:element name="incident" type="IMIncidentIden"/>

element tcip:IMInjury/injury-nature
diagram
type tcip:IM-InjuryNature
properties
isRef 0
content simple
facets
minLength 0
maxLength 255
source <xs:element name="injury-nature" type="IM-InjuryNature"/>

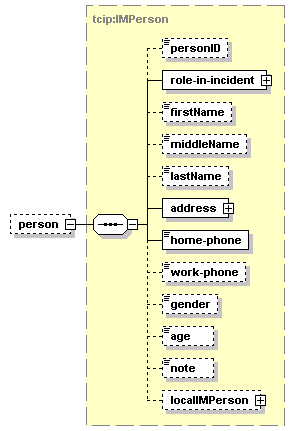

element tcip:IMInjury/person
diagram
type tcip:IMPerson
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children personID role-in-incident firstName middleName lastName address home-phone work-phone gender age note localIMPerson
source <xs:element name="person" type="IMPerson" minOccurs="0"/>

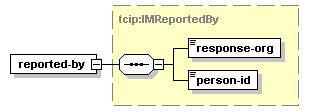

element tcip:IMInjury/reported-by
diagram
type tcip:IMReportedBy
properties
isRef 0
content complex
children response-org person-id
source <xs:element name="reported-by" type="IMReportedBy"/>

element tcip:IMInjury/facility-name
diagram
type tcip:IM-CareFacilityName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 20
source <xs:element name="facility-name" type="IM-CareFacilityName" minOccurs="0"/>

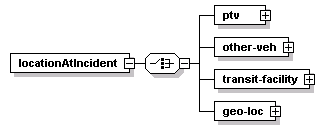

element tcip:IMInjury/locationAtIncident
diagram
properties
isRef 0
content complex
children ptv other-veh transit-facility geo-loc
source <xs:element name="locationAtIncident">
  <xs:complexType>
    <xs:choice>
      <xs:element name="ptv" type="IMPTVehicleInvolved"/>
      <!-- person was on-board a PTV -->
      <xs:element name="other-veh" type="IMOtherVehicleInvolved"/>
      <!-- person in another veh -->
      <xs:element name="transit-facility" type="CPTTransitFacilityIden"/>
      <!-- person at transit fac -->
      <xs:element name="geo-loc" type="lrms:GeoLocation"/>
      <!-- geographic location -->
    </xs:choice>
  </xs:complexType>
</xs:element>

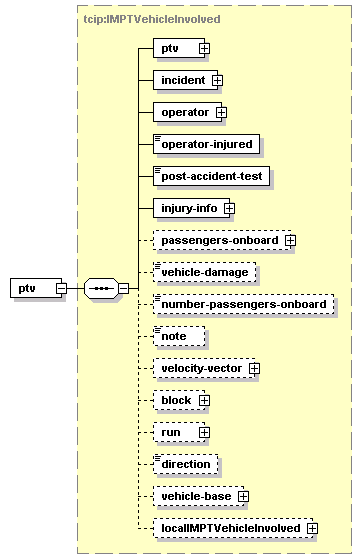

element tcip:IMInjury/locationAtIncident/ptv
diagram
type tcip:IMPTVehicleInvolved
properties
isRef 0
content complex
children ptv incident operator operator-injured post-accident-test injury-info passengers-onboard vehicle-damage number-passengers-onboard note velocity-vector block run direction vehicle-base localIMPTVehicleInvolved
source <xs:element name="ptv" type="IMPTVehicleInvolved"/>

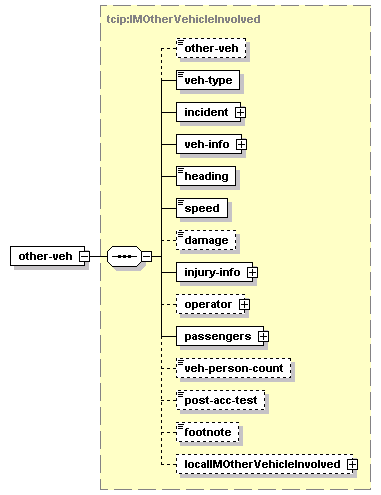

element tcip:IMInjury/locationAtIncident/other-veh
diagram
type tcip:IMOtherVehicleInvolved
properties
isRef 0
content complex
children other-veh veh-type incident veh-info heading speed damage injury-info operator passengers veh-person-count post-acc-test footnote localIMOtherVehicleInvolved
source <xs:element name="other-veh" type="IMOtherVehicleInvolved"/>

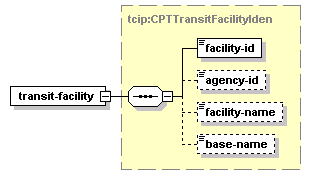

element tcip:IMInjury/locationAtIncident/transit-facility
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="transit-facility" type="CPTTransitFacilityIden"/>

element tcip:IMInjury/locationAtIncident/geo-loc
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
source <xs:element name="geo-loc" type="lrms:GeoLocation"/>

element tcip:IMInjury/localIMInjury
diagram
type IMInjury
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localIMInjury" type="local:IMInjury" minOccurs="0"/>
