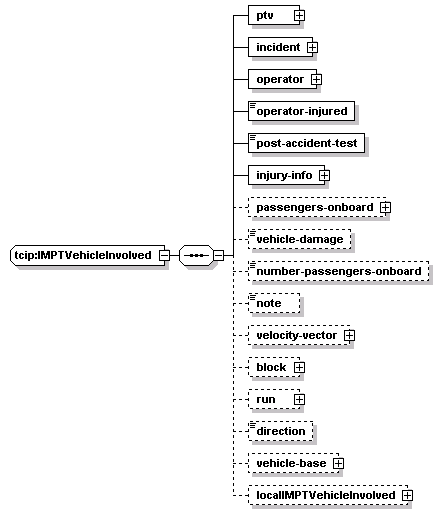

complexType tcip:IMPTVehicleInvolved

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	ptv incident operator operator-injured post-accident-test injury-info passengers-onboard vehicle-damage number-passengers-onboard note velocity-vector block run direction vehicle-base localIMPTVehicleInvolved
used by	elements  tcip:IMInjury/locationAtIncident/ptv tcip:IMIncident/ptv-involved/ptv-involved-item
source	<xs:complexType name="IMPTVehicleInvolved">   <xs:sequence>     <xs:element name="ptv" type="CPTVehicleIden"/>     <xs:element name="incident" type="IMIncidentIden"/>     <xs:element name="operator" type="CPTOperatorIden"/>     <xs:element name="operator-injured" type="IM-OperatorInjured"/>     <xs:element name="post-accident-test" type="IM-PostAccidentTest"/>     <xs:element name="injury-info" type="IMInjuryInfo"/>     <xs:element name="passengers-onboard" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="500">           <xs:element name="passengers-onboard-item" type="IMPerson"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="vehicle-damage" type="IM-VehicleDamage" minOccurs="0"/>     <xs:element name="number-passengers-onboard" type="IM-VehicleOccupantCount" minOccurs="0"/>     <xs:element name="note" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="velocity-vector" type="OBBusVelocityVector" minOccurs="0"/>     <xs:element name="block" type="SCHBlockIden" minOccurs="0"/>     <xs:element name="run" type="SCHRunIden" minOccurs="0"/>     <xs:element name="direction" type="SCH-RouteDirectionName" minOccurs="0"/>     <!-- code -->     <xs:element name="vehicle-base" type="CPTTransitFacilityIden" minOccurs="0"/>     <xs:element name="localIMPTVehicleInvolved" type="local:IMPTVehicleInvolved" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:IMPTVehicleInvolved/ptv

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="ptv" type="CPTVehicleIden"/>

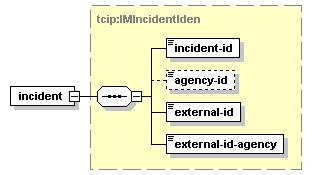

element tcip:IMPTVehicleInvolved/incident

diagram
type	tcip:IMIncidentIden
properties	isRef  0 content  complex
children	incident-id agency-id external-id external-id-agency
source	<xs:element name="incident" type="IMIncidentIden"/>

element tcip:IMPTVehicleInvolved/operator

diagram
type	tcip:CPTOperatorIden
properties	isRef  0 content  complex
children	operator-id agency-id designator employee-id
source	<xs:element name="operator" type="CPTOperatorIden"/>

element tcip:IMPTVehicleInvolved/operator-injured

diagram
type	tcip:IM-OperatorInjured
properties	isRef  0 content  simple
source	<xs:element name="operator-injured" type="IM-OperatorInjured"/>

element tcip:IMPTVehicleInvolved/post-accident-test

diagram
type	tcip:IM-PostAccidentTest
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="post-accident-test" type="IM-PostAccidentTest"/>

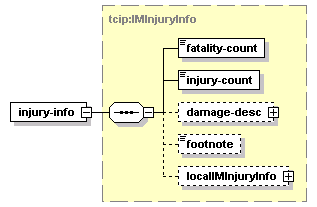

element tcip:IMPTVehicleInvolved/injury-info

diagram
type	tcip:IMInjuryInfo
properties	isRef  0 content  complex
children	fatality-count injury-count damage-desc footnote localIMInjuryInfo
source	<xs:element name="injury-info" type="IMInjuryInfo"/>

element tcip:IMPTVehicleInvolved/passengers-onboard

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	passengers-onboard-item
source	<xs:element name="passengers-onboard" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="500">       <xs:element name="passengers-onboard-item" type="IMPerson"/>     </xs:sequence>   </xs:complexType> </xs:element>

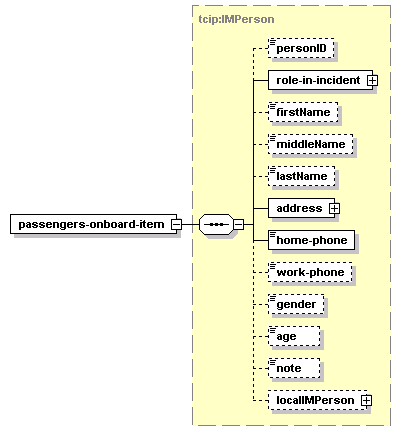

element tcip:IMPTVehicleInvolved/passengers-onboard/passengers-onboard-item

diagram
type	tcip:IMPerson
properties	isRef  0 content  complex
children	personID role-in-incident firstName middleName lastName address home-phone work-phone gender age note localIMPerson
source	<xs:element name="passengers-onboard-item" type="IMPerson"/>

element tcip:IMPTVehicleInvolved/vehicle-damage

diagram
type	tcip:IM-VehicleDamage
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="vehicle-damage" type="IM-VehicleDamage" minOccurs="0"/>

element tcip:IMPTVehicleInvolved/number-passengers-onboard

diagram
type	tcip:IM-VehicleOccupantCount
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="number-passengers-onboard" type="IM-VehicleOccupantCount" minOccurs="0"/>

element tcip:IMPTVehicleInvolved/note

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="note" type="CPT-Footnote" minOccurs="0"/>

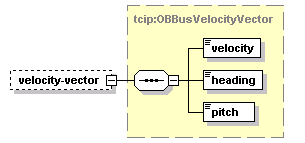

element tcip:IMPTVehicleInvolved/velocity-vector

diagram
type	tcip:OBBusVelocityVector
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	velocity heading pitch
source	<xs:element name="velocity-vector" type="OBBusVelocityVector" minOccurs="0"/>

element tcip:IMPTVehicleInvolved/block

diagram
type	tcip:SCHBlockIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	block-id agency-id block-designator block-name
source	<xs:element name="block" type="SCHBlockIden" minOccurs="0"/>

element tcip:IMPTVehicleInvolved/run

diagram
type	tcip:SCHRunIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	run-id agency-id designator
source	<xs:element name="run" type="SCHRunIden" minOccurs="0"/>

element tcip:IMPTVehicleInvolved/direction

diagram
type	tcip:SCH-RouteDirectionName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="direction" type="SCH-RouteDirectionName" minOccurs="0"/>

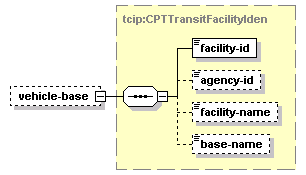

element tcip:IMPTVehicleInvolved/vehicle-base

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="vehicle-base" type="CPTTransitFacilityIden" minOccurs="0"/>

element tcip:IMPTVehicleInvolved/localIMPTVehicleInvolved

diagram
type	IMPTVehicleInvolved
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localIMPTVehicleInvolved" type="local:IMPTVehicleInvolved" minOccurs="0"/>
