complexType tcip:ObLocation

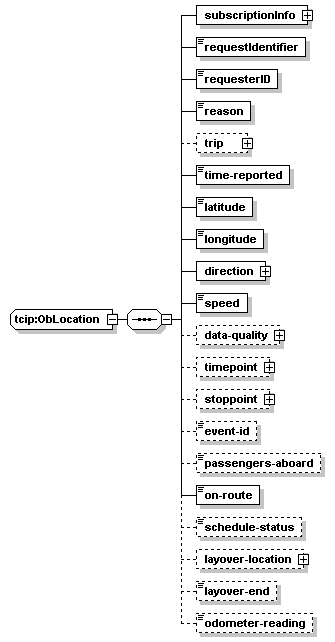

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo requestIdentifier requesterID reason trip time-reported latitude longitude direction speed data-quality timepoint stoppoint event-id passengers-aboard on-route schedule-status layover-location layover-end odometer-reading
used by	element  tcip:obLocation
source	<xs:complexType name="ObLocation">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="requestIdentifier" type="CPT-RequestIdentifier"/>     <xs:element name="requesterID" type="OB-MID"/>     <xs:element name="reason" type="OB-LocationReportReason"/>     <xs:element name="trip" type="SCHTripIden" minOccurs="0"/>     <xs:element name="time-reported" type="CPT-DateTime"/>     <xs:element name="latitude" type="lrms:Latitude"/>     <xs:element name="longitude" type="lrms:Longitude"/>     <xs:element name="direction" type="lrms:Angle"/>     <!-- direction of travel [deg] -->     <xs:element name="speed" type="OB-J1587-VelocityVectorSpeed"/>     <xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>     <xs:element name="timepoint" type="SCHTimepointIden" minOccurs="0"/>     <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>     <xs:element name="event-id" type="SCH-ActivationID" minOccurs="0"/>     <xs:element name="passengers-aboard" type="OB-J1587-PassengerCounterPatronCount" minOccurs="0"/>     <xs:element name="on-route" type="CPT-Boolean"/>     <xs:element name="schedule-status" type="CPT-Duration" minOccurs="0"/>     <xs:element name="layover-location" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="layover-end" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="odometer-reading" type="CPT-GenericCounter" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:ObLocation/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:ObLocation/requestIdentifier

diagram
type	tcip:CPT-RequestIdentifier
properties	isRef  0 content  simple
source	<xs:element name="requestIdentifier" type="CPT-RequestIdentifier"/>

element tcip:ObLocation/requesterID

diagram
type	tcip:OB-MID
properties	isRef  0 content  simple
source	<xs:element name="requesterID" type="OB-MID"/>

element tcip:ObLocation/reason

diagram
type	tcip:OB-LocationReportReason
properties	isRef  0 content  simple
source	<xs:element name="reason" type="OB-LocationReportReason"/>

element tcip:ObLocation/trip

diagram
type	tcip:SCHTripIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	trip-id agency-id designator
source	<xs:element name="trip" type="SCHTripIden" minOccurs="0"/>

element tcip:ObLocation/time-reported

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time-reported" type="CPT-DateTime"/>

element tcip:ObLocation/latitude

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="latitude" type="lrms:Latitude"/>

element tcip:ObLocation/longitude

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="longitude" type="lrms:Longitude"/>

element tcip:ObLocation/direction

diagram
type	lrms:Angle
properties	isRef  0 content  complex
children	deg rad cdeg
source	<xs:element name="direction" type="lrms:Angle"/>

element tcip:ObLocation/speed

diagram
type	tcip:OB-J1587-VelocityVectorSpeed
properties	isRef  0 content  simple
source	<xs:element name="speed" type="OB-J1587-VelocityVectorSpeed"/>

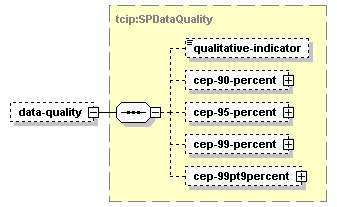

element tcip:ObLocation/data-quality

diagram
type	tcip:SPDataQuality
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	qualitative-indicator cep-90-percent cep-95-percent cep-99-percent cep-99pt9percent
source	<xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>

element tcip:ObLocation/timepoint

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="timepoint" type="SCHTimepointIden" minOccurs="0"/>

element tcip:ObLocation/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:ObLocation/event-id

diagram
type	tcip:SCH-ActivationID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="event-id" type="SCH-ActivationID" minOccurs="0"/>

element tcip:ObLocation/passengers-aboard

diagram
type	tcip:OB-J1587-PassengerCounterPatronCount
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="passengers-aboard" type="OB-J1587-PassengerCounterPatronCount" minOccurs="0"/>

element tcip:ObLocation/on-route

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="on-route" type="CPT-Boolean"/>

element tcip:ObLocation/schedule-status

diagram
type	tcip:CPT-Duration
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="schedule-status" type="CPT-Duration" minOccurs="0"/>

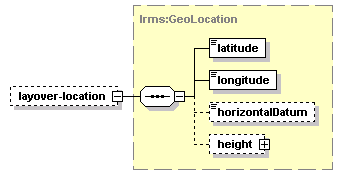

element tcip:ObLocation/layover-location

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="layover-location" type="lrms:GeoLocation" minOccurs="0"/>

element tcip:ObLocation/layover-end

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="layover-end" type="CPT-DateTime" minOccurs="0"/>

element tcip:ObLocation/odometer-reading

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="odometer-reading" type="CPT-GenericCounter" minOccurs="0"/>
