complexType tcip:SCHTimepointIden

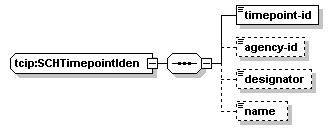

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	timepoint-id agency-id designator name
used by	elements  tcip:SCHValidationError/affected-timepoints/affected-timepoint tcip:CCDetourRecord/approachTimepoint tcip:SCHServiceAtStop/associated-timepoint tcip:CPTStoppoint/associated-timepoint tcip:SCHBlockScheduleEntry/begin-timepoint tcip:SCHOperatorAssignment/begin-timepoint tcip:SCHVehicleAssignment/begin-timepoint tcip:SCHRunScheduleEntry/begin-timepoint tcip:SchTimepointsFile/deleted-timepoints/deleted-timepoint tcip:SchTimepointList/deleted-timepoints/deleted-timepoint tcip:SchPushTimepoints/deleted-timepoints/deleted-timepoint tcip:SCHRunScheduleEntry/end-timepoint tcip:SCHOperatorAssignment/end-timepoint tcip:SCHVehicleAssignment/end-timepoint tcip:SCHBlockScheduleEntry/end-timepoint tcip:SCHTimepointInterval/endPointID tcip:CcLocationReport/last-timepoint tcip:CCPollResponseContents/lastTimepoint tcip:SCHTimepointInterval/startPointID tcip:SCHTimepointInfo/timepoint tcip:SPTimepointGeoLoc/timepoint tcip:CcAdherencePerformance/timepoints/timepoint tcip:CcAdherencePerformanceSub/timepoints/timepoint tcip:CcPTVAdherence/timepoint tcip:ObLocation/timepoint tcip:SchActualRunningTimes/timepoints/timepoint tcip:SchActualRunningTimesSub/timepoints/timepoint tcip:SchTripDetailList/timepoints/timepoint tcip:SchTripDetailListSub/timepoints/timepoint tcip:SpRouteGeoTrace/response/timepoints/timepoint tcip:CCDestinationSignRule/to/timepoint tcip:CCHistoricalAdherenceRecord/timepoint tcip:CCTimepointHistory/timepoint tcip:SCHTimeStoppoint/timepoint-id tcip:SCHTimeTableTripTP/timepoint-iden tcip:PITimetableTimepoint/timepoint-iden tcip:SCHRunningTimeEntry/timepointA tcip:SCHRunningTimeEntry/timepointB tcip:SCHTimeTableEntry/timepointID tcip:CCDestinationSignRule/from/timpoint
source	<xs:complexType name="SCHTimepointIden">   <xs:sequence>     <xs:element name="timepoint-id" type="SCH-TimepointID"/>     <xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>     <xs:element name="designator" type="SCH-TimepointDesignator" minOccurs="0"/>     <xs:element name="name" type="SCH-TimepointName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHTimepointIden/timepoint-id

diagram
type	tcip:SCH-TimepointID
properties	isRef  0 content  simple
source	<xs:element name="timepoint-id" type="SCH-TimepointID"/>

element tcip:SCHTimepointIden/agency-id

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>

element tcip:SCHTimepointIden/designator

diagram
type	tcip:SCH-TimepointDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="designator" type="SCH-TimepointDesignator" minOccurs="0"/>

element tcip:SCHTimepointIden/name

diagram
type	tcip:SCH-TimepointName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="name" type="SCH-TimepointName" minOccurs="0"/>
