complexType tcip:ObSignon

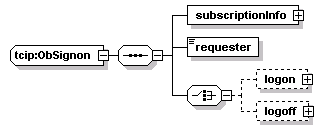

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo requester logon logoff
used by	element  tcip:obSignon
source	<xs:complexType name="ObSignon">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="requester" type="OB-MID"/>     <xs:choice>       <xs:element name="logon" type="CCLogOnOperator" minOccurs="0"/>       <xs:element name="logoff" type="CCLogOffOperator" minOccurs="0"/>     </xs:choice>   </xs:sequence> </xs:complexType>

element tcip:ObSignon/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:ObSignon/requester

diagram
type	tcip:OB-MID
properties	isRef  0 content  simple
source	<xs:element name="requester" type="OB-MID"/>

element tcip:ObSignon/logon

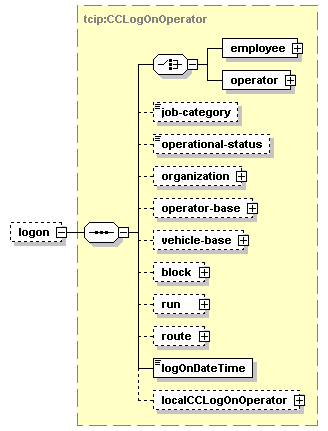

diagram
type	tcip:CCLogOnOperator
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	employee operator job-category operational-status organization operator-base vehicle-base block run route logOnDateTime localCCLogOnOperator
source	<xs:element name="logon" type="CCLogOnOperator" minOccurs="0"/>

element tcip:ObSignon/logoff

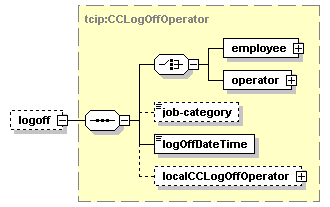

diagram
type	tcip:CCLogOffOperator
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	employee operator job-category logOffDateTime localCCLogOffOperator
source	<xs:element name="logoff" type="CCLogOffOperator" minOccurs="0"/>
