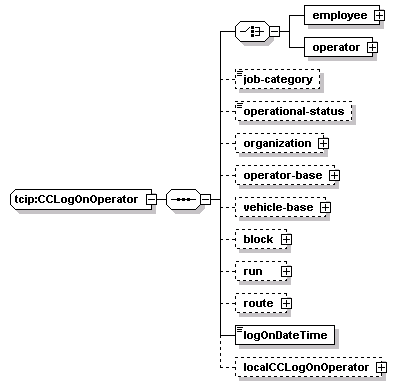

complexType tcip:CCLogOnOperator

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	employee operator job-category operational-status organization operator-base vehicle-base block run route logOnDateTime localCCLogOnOperator
used by	elements  tcip:ObSignon/logon tcip:CcOperatorSignOn/logon-info
source	<xs:complexType name="CCLogOnOperator">   <xs:sequence>     <xs:choice>       <xs:element name="employee" type="CPTEmployeeIden"/>       <xs:element name="operator" type="CPTOperatorIden"/>     </xs:choice>     <xs:element name="job-category" type="CPT-EmplJobCat" minOccurs="0"/>     <xs:element name="operational-status" type="SCH-ServiceType" minOccurs="0"/>     <xs:element name="organization" type="CPTOrganizationalUnitIden" minOccurs="0"/>     <xs:element name="operator-base" type="CPTTransitFacilityIden" minOccurs="0"/>     <xs:element name="vehicle-base" type="CPTTransitFacilityIden" minOccurs="0"/>     <xs:element name="block" type="SCHBlockIden" minOccurs="0"/>     <xs:element name="run" type="SCHRunIden" minOccurs="0"/>     <xs:element name="route" type="SCHRouteIden" minOccurs="0"/>     <xs:element name="logOnDateTime" type="CPT-DateTime"/>     <xs:element name="localCCLogOnOperator" type="local:CCLogOnOperator" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CCLogOnOperator/employee

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="employee" type="CPTEmployeeIden"/>

element tcip:CCLogOnOperator/operator

diagram
type	tcip:CPTOperatorIden
properties	isRef  0 content  complex
children	operator-id agency-id designator employee-id
source	<xs:element name="operator" type="CPTOperatorIden"/>

element tcip:CCLogOnOperator/job-category

diagram
type	tcip:CPT-EmplJobCat
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="job-category" type="CPT-EmplJobCat" minOccurs="0"/>

element tcip:CCLogOnOperator/operational-status

diagram
type	tcip:SCH-ServiceType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="operational-status" type="SCH-ServiceType" minOccurs="0"/>

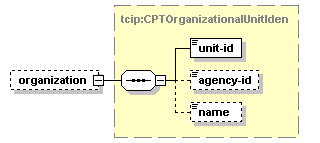

element tcip:CCLogOnOperator/organization

diagram
type	tcip:CPTOrganizationalUnitIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	unit-id agency-id name
source	<xs:element name="organization" type="CPTOrganizationalUnitIden" minOccurs="0"/>

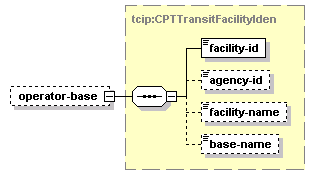

element tcip:CCLogOnOperator/operator-base

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="operator-base" type="CPTTransitFacilityIden" minOccurs="0"/>

element tcip:CCLogOnOperator/vehicle-base

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="vehicle-base" type="CPTTransitFacilityIden" minOccurs="0"/>

element tcip:CCLogOnOperator/block

diagram
type	tcip:SCHBlockIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	block-id agency-id block-designator block-name
source	<xs:element name="block" type="SCHBlockIden" minOccurs="0"/>

element tcip:CCLogOnOperator/run

diagram
type	tcip:SCHRunIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	run-id agency-id designator
source	<xs:element name="run" type="SCHRunIden" minOccurs="0"/>

element tcip:CCLogOnOperator/route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="route" type="SCHRouteIden" minOccurs="0"/>

element tcip:CCLogOnOperator/logOnDateTime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="logOnDateTime" type="CPT-DateTime"/>

element tcip:CCLogOnOperator/localCCLogOnOperator

diagram
type	CCLogOnOperator
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCCLogOnOperator" type="local:CCLogOnOperator" minOccurs="0"/>
