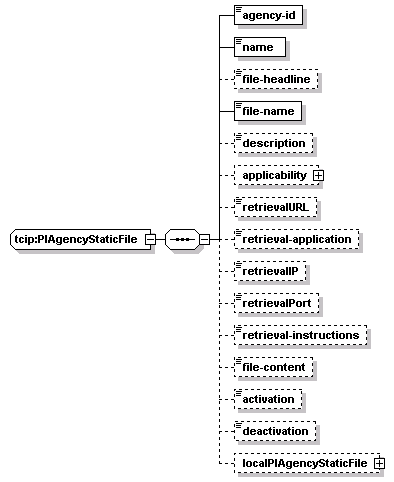

complexType tcip:PIAgencyStaticFile

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	agency-id name file-headline file-name description applicability retrievalURL retrieval-application retrievalIP retrievalPort retrieval-instructions file-content activation deactivation localPIAgencyStaticFile
used by	elements  tcip:PiAgencyFiles/files/file tcip:PiPushAgencyFiles/files/file tcip:PIRouteInfo/files/file tcip:PIAgencyProfile/static-files/static-file
source	<xs:complexType name="PIAgencyStaticFile">   <xs:sequence>     <xs:element name="agency-id" type="CPT-AgencyID"/>     <xs:element name="name" type="CPT-AgencyName"/>     <xs:element name="file-headline" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="file-name" type="CPT-Footnote"/>     <xs:element name="description" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="applicability" type="CPTFileApplicability" minOccurs="0"/>     <xs:element name="retrievalURL" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="retrieval-application" type="CPT-ApplicationID" minOccurs="0"/>     <xs:element name="retrievalIP" type="CPT-IP-Address" minOccurs="0"/>     <xs:element name="retrievalPort" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>     <xs:element name="retrieval-instructions" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="file-content" type="CPT-FileContent" minOccurs="0"/>     <xs:element name="activation" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="deactivation" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="localPIAgencyStaticFile" type="local:PIAgencyStaticFile" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PIAgencyStaticFile/agency-id

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 content  simple
source	<xs:element name="agency-id" type="CPT-AgencyID"/>

element tcip:PIAgencyStaticFile/name

diagram
type	tcip:CPT-AgencyName
properties	isRef  0 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="name" type="CPT-AgencyName"/>

element tcip:PIAgencyStaticFile/file-headline

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="file-headline" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIAgencyStaticFile/file-name

diagram
type	tcip:CPT-Footnote
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="file-name" type="CPT-Footnote"/>

element tcip:PIAgencyStaticFile/description

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="description" type="CPT-Footnote" minOccurs="0"/>

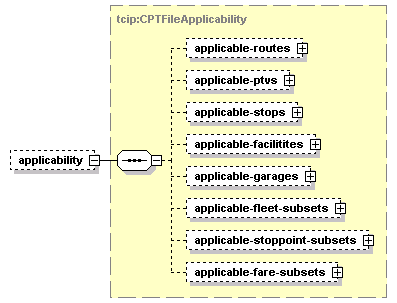

element tcip:PIAgencyStaticFile/applicability

diagram
type	tcip:CPTFileApplicability
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	applicable-routes applicable-ptvs applicable-stops applicable-facilitites applicable-garages applicable-fleet-subsets applicable-stoppoint-subsets applicable-fare-subsets
source	<xs:element name="applicability" type="CPTFileApplicability" minOccurs="0"/>

element tcip:PIAgencyStaticFile/retrievalURL

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="retrievalURL" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIAgencyStaticFile/retrieval-application

diagram
type	tcip:CPT-ApplicationID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="retrieval-application" type="CPT-ApplicationID" minOccurs="0"/>

element tcip:PIAgencyStaticFile/retrievalIP

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="retrievalIP" type="CPT-IP-Address" minOccurs="0"/>

element tcip:PIAgencyStaticFile/retrievalPort

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="retrievalPort" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:PIAgencyStaticFile/retrieval-instructions

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="retrieval-instructions" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIAgencyStaticFile/file-content

diagram
type	tcip:CPT-FileContent
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2000000
source	<xs:element name="file-content" type="CPT-FileContent" minOccurs="0"/>

element tcip:PIAgencyStaticFile/activation

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="activation" type="CPT-DateTime" minOccurs="0"/>

element tcip:PIAgencyStaticFile/deactivation

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="deactivation" type="CPT-DateTime" minOccurs="0"/>

element tcip:PIAgencyStaticFile/localPIAgencyStaticFile

diagram
type	PIAgencyStaticFile
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localPIAgencyStaticFile" type="local:PIAgencyStaticFile" minOccurs="0"/>
