complexType tcip:PiPushAgencyFiles
diagram
namespace http://www.TCIP-Adopted-03-00-01
children push-header files
used by
element tcip:piPushAgencyFiles
source <xs:complexType name="PiPushAgencyFiles">
  <xs:sequence>
    <xs:element name="push-header" type="CPTPushHeader"/>
    <xs:element name="files" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="5000">
          <xs:element name="file" type="PIAgencyStaticFile"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

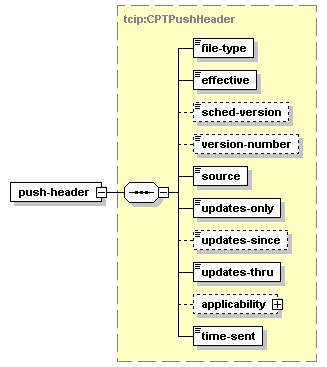

element tcip:PiPushAgencyFiles/push-header
diagram
type tcip:CPTPushHeader
properties
isRef 0
content complex
children file-type effective sched-version version-number source updates-only updates-since updates-thru applicability time-sent
source <xs:element name="push-header" type="CPTPushHeader"/>

element tcip:PiPushAgencyFiles/files
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children file
source <xs:element name="files" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="5000">
      <xs:element name="file" type="PIAgencyStaticFile"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

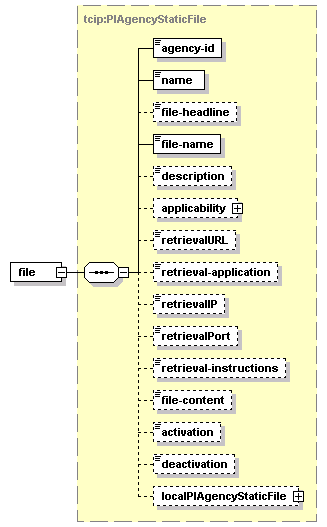

element tcip:PiPushAgencyFiles/files/file
diagram
type tcip:PIAgencyStaticFile
properties
isRef 0
content complex
children agency-id name file-headline file-name description applicability retrievalURL retrieval-application retrievalIP retrievalPort retrieval-instructions file-content activation deactivation localPIAgencyStaticFile
source <xs:element name="file" type="PIAgencyStaticFile"/>
