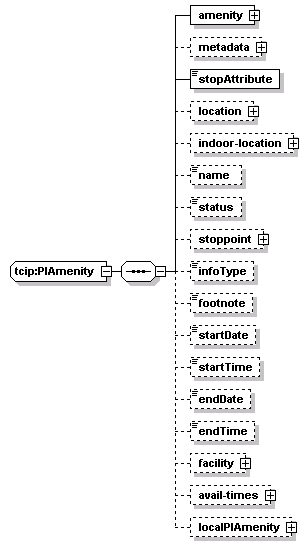

complexType tcip:PIAmenity
diagram
namespace http://www.TCIP-Adopted-03-00-01
children amenity metadata stopAttribute location indoor-location name status stoppoint infoType footnote startDate startTime endDate endTime facility avail-times localPIAmenity
used by
elements tcip:PiAmenitiesList/amenities/amenity tcip:PINearestStop/amenities/amenity
source <xs:complexType name="PIAmenity">
  <xs:sequence>
    <xs:element name="amenity" type="PIAmenityIden"/>
    <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>
    <xs:element name="stopAttribute" type="CPT-StoppointAttribute"/>
    <xs:element name="location" type="lrms:GeoLocation" minOccurs="0"/>
    <xs:element name="indoor-location" type="SPInteriorLocation" minOccurs="0"/>
    <xs:element name="name" type="PI-AmenityName" minOccurs="0"/>
    <xs:element name="status" type="PI-AmenityStatus" minOccurs="0"/>
    <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>
    <xs:element name="infoType" type="PI-InformationType" minOccurs="0"/>
    <xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>
    <xs:element name="startDate" type="CPT-Date" minOccurs="0"/>
    <xs:element name="startTime" type="CPT-Time" minOccurs="0"/>
    <xs:element name="endDate" type="CPT-Date" minOccurs="0"/>
    <xs:element name="endTime" type="CPT-Time" minOccurs="0"/>
    <xs:element name="facility" type="CPTTransitFacilityIden" minOccurs="0"/>
    <xs:element name="avail-times" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="avail-time" type="PIAvailablePeriod"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localPIAmenity" type="local:PIAmenity" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:PIAmenity/amenity
diagram
type tcip:PIAmenityIden
properties
isRef 0
content complex
children amenity-id agency-id name
source <xs:element name="amenity" type="PIAmenityIden"/>

element tcip:PIAmenity/metadata
diagram
type tcip:CPTRowMetaData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children created effective expiration activation deactivation updated
source <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:PIAmenity/stopAttribute
diagram
type tcip:CPT-StoppointAttribute
properties
isRef 0
content simple
source <xs:element name="stopAttribute" type="CPT-StoppointAttribute"/>

element tcip:PIAmenity/location
diagram
type lrms:GeoLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children latitude longitude horizontalDatum height
source <xs:element name="location" type="lrms:GeoLocation" minOccurs="0"/>

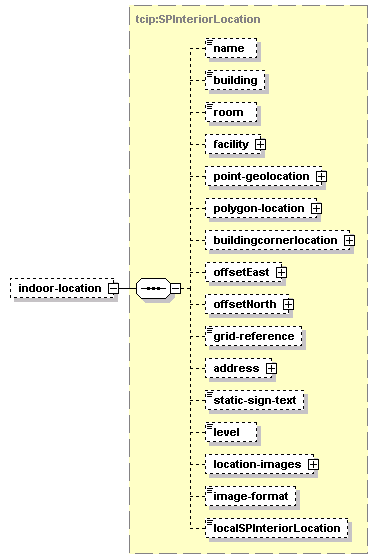

element tcip:PIAmenity/indoor-location
diagram
type tcip:SPInteriorLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children name building room facility point-geolocation polygon-location buildingcornerlocation offsetEast offsetNorth grid-reference address static-sign-text level location-images image-format localSPInteriorLocation
source <xs:element name="indoor-location" type="SPInteriorLocation" minOccurs="0"/>

element tcip:PIAmenity/name
diagram
type tcip:PI-AmenityName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="name" type="PI-AmenityName" minOccurs="0"/>

element tcip:PIAmenity/status
diagram
type tcip:PI-AmenityStatus
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="status" type="PI-AmenityStatus" minOccurs="0"/>

element tcip:PIAmenity/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:PIAmenity/infoType
diagram
type tcip:PI-InformationType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="infoType" type="PI-InformationType" minOccurs="0"/>

element tcip:PIAmenity/footnote
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIAmenity/startDate
diagram
type tcip:CPT-Date
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="startDate" type="CPT-Date" minOccurs="0"/>

element tcip:PIAmenity/startTime
diagram
type tcip:CPT-Time
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="startTime" type="CPT-Time" minOccurs="0"/>

element tcip:PIAmenity/endDate
diagram
type tcip:CPT-Date
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="endDate" type="CPT-Date" minOccurs="0"/>

element tcip:PIAmenity/endTime
diagram
type tcip:CPT-Time
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="endTime" type="CPT-Time" minOccurs="0"/>

element tcip:PIAmenity/facility
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="facility" type="CPTTransitFacilityIden" minOccurs="0"/>

element tcip:PIAmenity/avail-times
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children avail-time
source <xs:element name="avail-times" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="avail-time" type="PIAvailablePeriod"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PIAmenity/avail-times/avail-time
diagram
type tcip:PIAvailablePeriod
properties
isRef 0
content complex
children day-types begin-time end-time time-name
source <xs:element name="avail-time" type="PIAvailablePeriod"/>

element tcip:PIAmenity/localPIAmenity
diagram
type PIAmenity
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localPIAmenity" type="local:PIAmenity" minOccurs="0"/>
