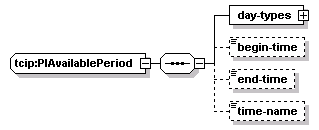

complexType tcip:PIAvailablePeriod

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	day-types begin-time end-time time-name
used by	elements  tcip:PIAccessibility/avail-times/avail-time tcip:PIAmenity/avail-times/avail-time
source	<xs:complexType name="PIAvailablePeriod">   <xs:sequence>     <xs:element name="day-types">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="day-type" type="SCH-DayType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="begin-time" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="end-time" type="CPT-Time" minOccurs="0"/>     <xs:element name="time-name" type="CPT-TimeName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PIAvailablePeriod/day-types

diagram
properties	isRef  0 content  complex
children	day-type
source	<xs:element name="day-types">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="day-type" type="SCH-DayType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:PIAvailablePeriod/day-types/day-type

diagram
type	tcip:SCH-DayType
properties	isRef  0 content  simple
source	<xs:element name="day-type" type="SCH-DayType"/>

element tcip:PIAvailablePeriod/begin-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="begin-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:PIAvailablePeriod/end-time

diagram
type	tcip:CPT-Time
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end-time" type="CPT-Time" minOccurs="0"/>

element tcip:PIAvailablePeriod/time-name

diagram
type	tcip:CPT-TimeName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="time-name" type="CPT-TimeName" minOccurs="0"/>
