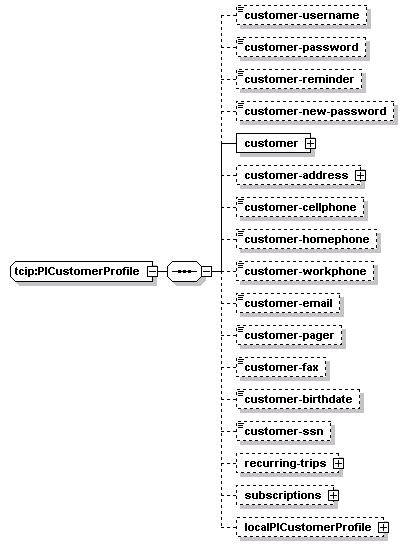

complexType tcip:PICustomerProfile

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	customer-username customer-password customer-reminder customer-new-password customer customer-address customer-cellphone customer-homephone customer-workphone customer-email customer-pager customer-fax customer-birthdate customer-ssn recurring-trips subscriptions localPICustomerProfile
used by	elements  tcip:PiProfile/current-profile tcip:PiReportNewProfile/profile tcip:PiReportProfileUpdate/profile
source	<xs:complexType name="PICustomerProfile">   <xs:sequence>     <xs:element name="customer-username" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="customer-password" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="customer-reminder" type="CPT-Footnote" minOccurs="0"/>     <!-- password reminder -->     <xs:element name="customer-new-password" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="customer" type="PITravelerIden"/>     <!-- zero if unassigned -->     <xs:element name="customer-address" type="lrms:AddressPoint" minOccurs="0"/>     <xs:element name="customer-cellphone" type="IM-HomePhone" minOccurs="0"/>     <xs:element name="customer-homephone" type="IM-HomePhone" minOccurs="0"/>     <xs:element name="customer-workphone" type="IM-WorkPhone" minOccurs="0"/>     <xs:element name="customer-email" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="customer-pager" type="IM-HomePhone" minOccurs="0"/>     <xs:element name="customer-fax" type="IM-WorkPhone" minOccurs="0"/>     <xs:element name="customer-birthdate" type="CPT-Date" minOccurs="0"/>     <xs:element name="customer-ssn" type="CPT-SSN" minOccurs="0"/>     <xs:element name="recurring-trips" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="recurring-trip" type="PIRecurringTrip"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="subscriptions" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="subscription" type="PICustSubscription"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localPICustomerProfile" type="local:PICustomerProfile" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PICustomerProfile/customer-username

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-username" type="CPT-Footnote" minOccurs="0"/>

element tcip:PICustomerProfile/customer-password

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-password" type="CPT-Footnote" minOccurs="0"/>

element tcip:PICustomerProfile/customer-reminder

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-reminder" type="CPT-Footnote" minOccurs="0"/>

element tcip:PICustomerProfile/customer-new-password

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-new-password" type="CPT-Footnote" minOccurs="0"/>

element tcip:PICustomerProfile/customer

diagram
type	tcip:PITravelerIden
properties	isRef  0 content  complex
children	traveler-id agency-id firstName middleName lastName
source	<xs:element name="customer" type="PITravelerIden"/>

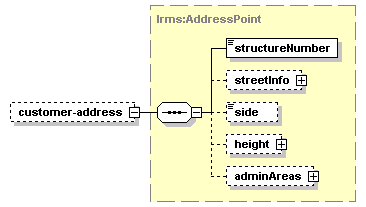

element tcip:PICustomerProfile/customer-address

diagram
type	lrms:AddressPoint
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	structureNumber streetInfo side height adminAreas
source	<xs:element name="customer-address" type="lrms:AddressPoint" minOccurs="0"/>

element tcip:PICustomerProfile/customer-cellphone

diagram
type	tcip:IM-HomePhone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="customer-cellphone" type="IM-HomePhone" minOccurs="0"/>

element tcip:PICustomerProfile/customer-homephone

diagram
type	tcip:IM-HomePhone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="customer-homephone" type="IM-HomePhone" minOccurs="0"/>

element tcip:PICustomerProfile/customer-workphone

diagram
type	tcip:IM-WorkPhone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="customer-workphone" type="IM-WorkPhone" minOccurs="0"/>

element tcip:PICustomerProfile/customer-email

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-email" type="CPT-Footnote" minOccurs="0"/>

element tcip:PICustomerProfile/customer-pager

diagram
type	tcip:IM-HomePhone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="customer-pager" type="IM-HomePhone" minOccurs="0"/>

element tcip:PICustomerProfile/customer-fax

diagram
type	tcip:IM-WorkPhone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="customer-fax" type="IM-WorkPhone" minOccurs="0"/>

element tcip:PICustomerProfile/customer-birthdate

diagram
type	tcip:CPT-Date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="customer-birthdate" type="CPT-Date" minOccurs="0"/>

element tcip:PICustomerProfile/customer-ssn

diagram
type	tcip:CPT-SSN
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="customer-ssn" type="CPT-SSN" minOccurs="0"/>

element tcip:PICustomerProfile/recurring-trips

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	recurring-trip
source	<xs:element name="recurring-trips" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="recurring-trip" type="PIRecurringTrip"/>     </xs:sequence>   </xs:complexType> </xs:element>

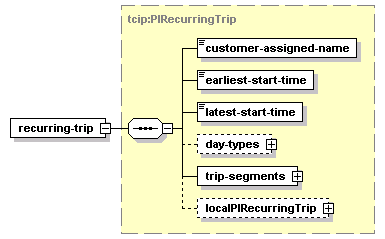

element tcip:PICustomerProfile/recurring-trips/recurring-trip

diagram
type	tcip:PIRecurringTrip
properties	isRef  0 content  complex
children	customer-assigned-name earliest-start-time latest-start-time day-types trip-segments localPIRecurringTrip
source	<xs:element name="recurring-trip" type="PIRecurringTrip"/>

element tcip:PICustomerProfile/subscriptions

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	subscription
source	<xs:element name="subscriptions" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="subscription" type="PICustSubscription"/>     </xs:sequence>   </xs:complexType> </xs:element>

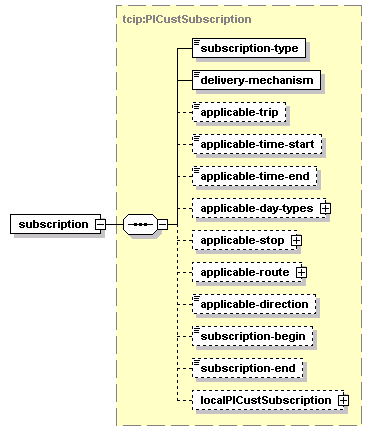

element tcip:PICustomerProfile/subscriptions/subscription

diagram
type	tcip:PICustSubscription
properties	isRef  0 content  complex
children	subscription-type delivery-mechanism applicable-trip applicable-time-start applicable-time-end applicable-day-types applicable-stop applicable-route applicable-direction subscription-begin subscription-end localPICustSubscription
source	<xs:element name="subscription" type="PICustSubscription"/>

element tcip:PICustomerProfile/localPICustomerProfile

diagram
type	PICustomerProfile
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localPICustomerProfile" type="local:PICustomerProfile" minOccurs="0"/>
